IFM EC3133
EC3133
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns

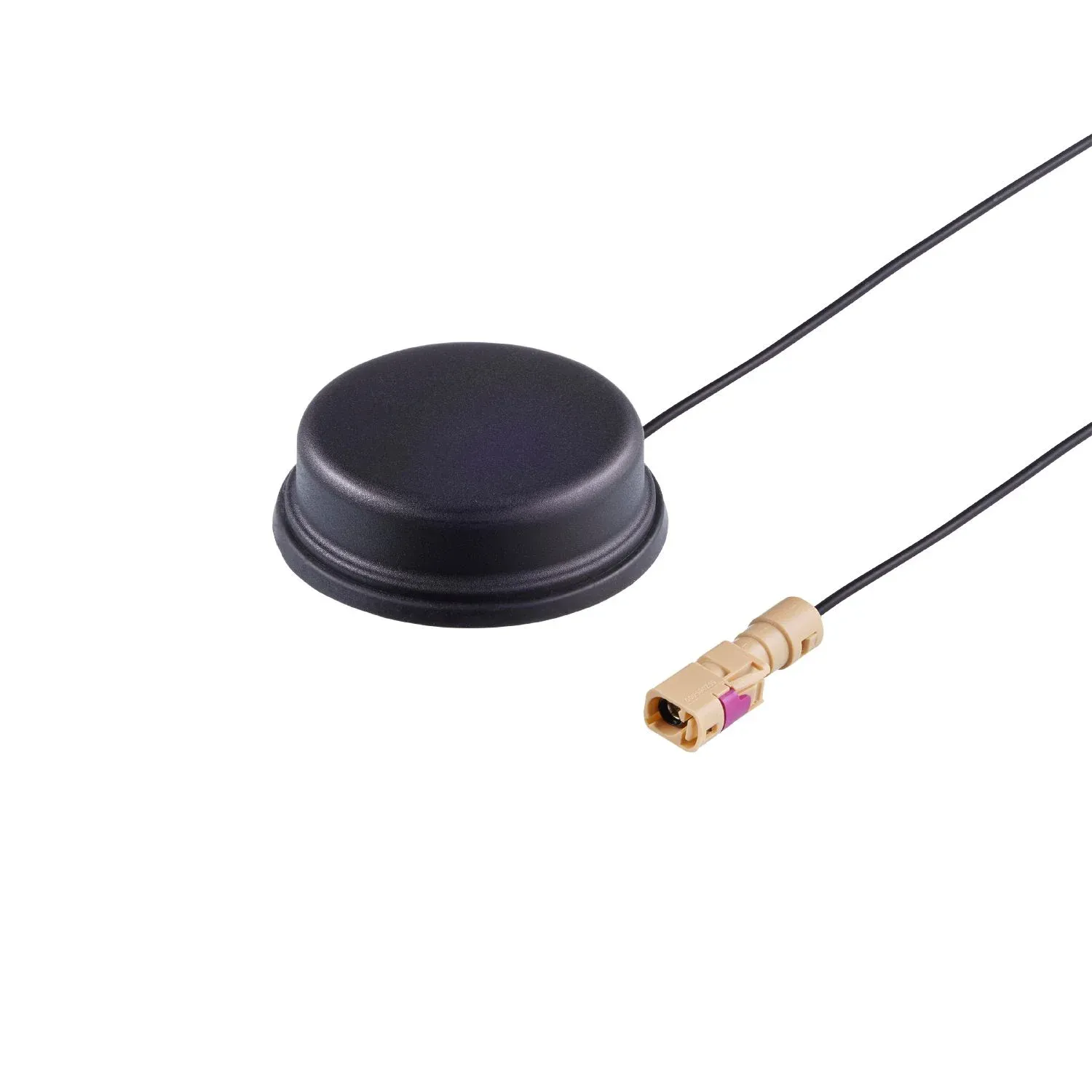

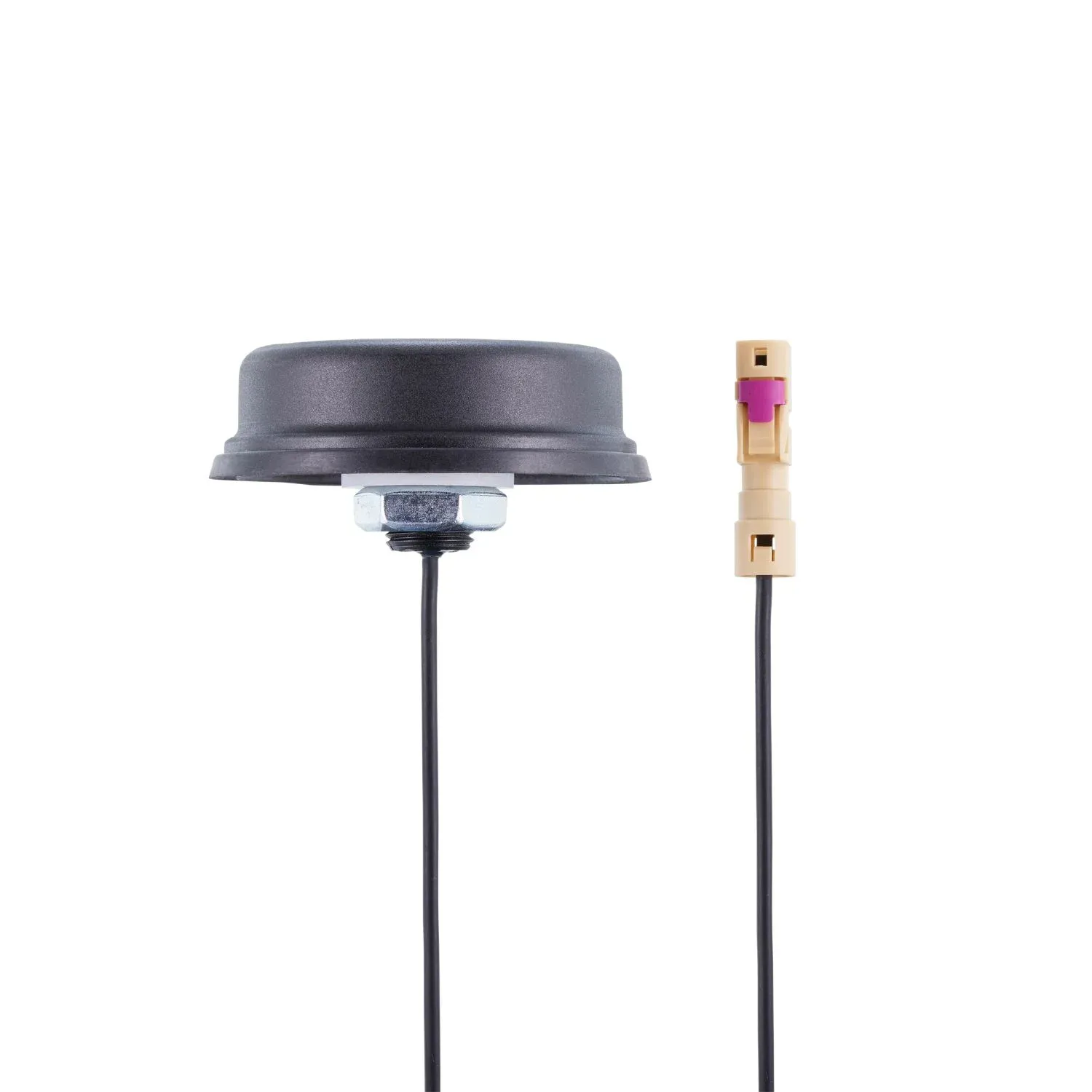

Description
For receiving and sending data via WLAN and Bluetooth
With integrated amplifier
Robust design for use in mobile machines
Flat housing for roof mounting on vehicles and mobile machines
Specification
Interfaces
| Frequency band | 2400...2480 MHz (802.11b/g/n); 5150...5852 MHz (802.11a/h/j/n/ac) |
|---|---|
| Connector type | FAKRA |
| Note on interfaces | VSWR: < 2,0 Antenna gain (2,4 GHz): + 3 dBi Antenna gain (5,3 GHz): + 1 dBi Power: < 10 W |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 69K |
Tests / approvals
| Standard | IEC 60068-2-14 Nb; IEC 60068-2-14 Na; IEC 60068-2-3 Db; IEC 60068-2-2; IEC 60068-2-27; ISO 16750-2; EN 45545-2; ECE R 118 |
|---|
Mechanical data
| Weight[g] [g] | 105.85 |
|---|---|
| Type of mounting | screw mounting; (M16 x 1,5) |
| Dimensions[mm] [mm] | Ø 76 / L = 23 |
| Tightening torque[Nm] [Nm] | 5 |
Remarks
| Remarks | When mounting the antenna(s) in vehicles avoid the vicinity of fuel tanks, vessels with explosives or insufficiently screened electronic components. Do not install antenna inside closed metal construction (e.g. in driver's cabin). Clean the mounting surface before the installation. Do not extend or shorten antenna cable. Avoid direct exposure to steam or high-pressure cleaning during car wash. Radio communication can affect the function of electronic devices that are not correctly shielded. Contact the manufacturer of the corresponding device in case of any interference. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - WLAN / Bluetooth
| Cable | 2 m |
|---|---|
| Connector | FAKRA I |
