IFM EC3025
EC3025
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Quick and easy mounting
High protection rating for the requirements of mobile machines
Secure and stable hold
Specification
Application
| Design | for ecomatRelay CR3025 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 67; (mating connector plugged in) |
Mechanical data
| Weight[g] [g] | 78.9 |
|---|---|
| Type of mounting | vertical; (contacts oriented downwards) |
| Dimensions[mm] [mm] | 56.9 x 41.2 x 75.4 |
| Materials | pole socket: PA 6.6-GF30 |
| Information on service life | max. mating cycles of the crimp contacts: 10 |
| max. mating cycles of the crimp contacts: | 10 |
Accessories

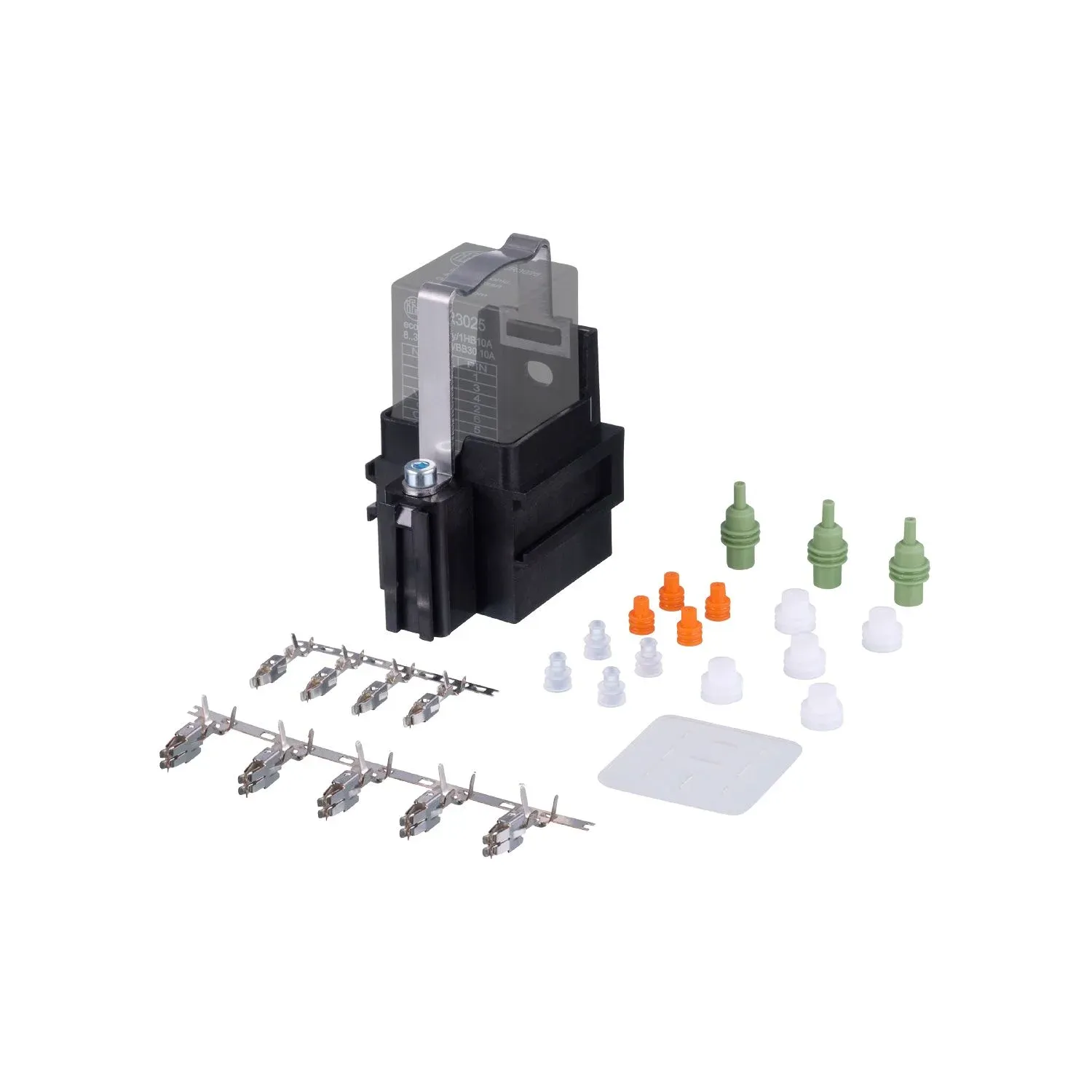

| Items supplied | pole socket: 1, 9-pole clamp: 1 Sealing: 1 cylinder head bolt: 1 x (M4 x 30 mm) Nuts: 1 x M4, self-locking Crimp contacts: 5 x 4,8 mm sealing of the individual cores: 5 x 4,8 mm Crimp contacts: 4 x 2,8 mm sealing of the individual cores: 4 x 2,8 mm |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
