Description

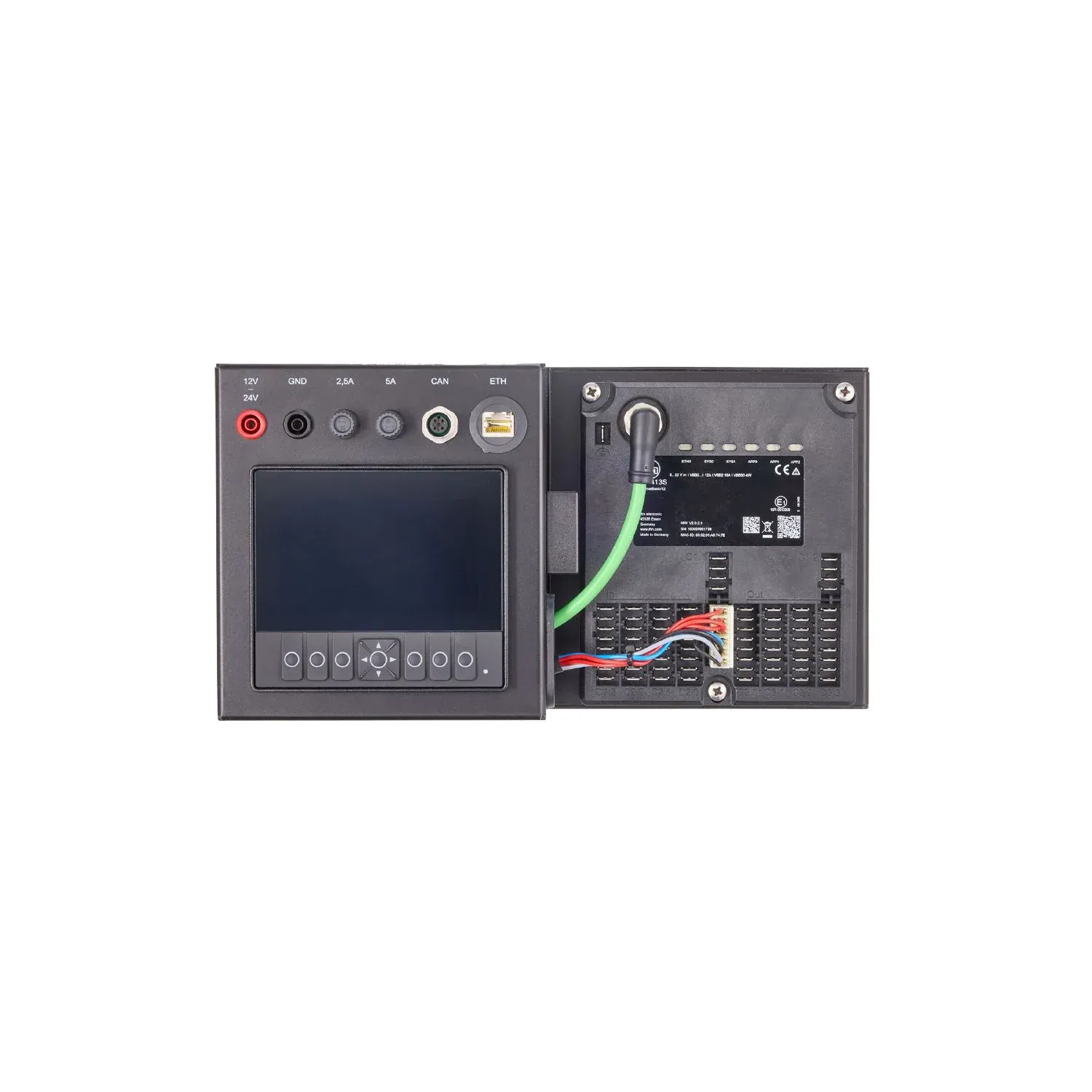

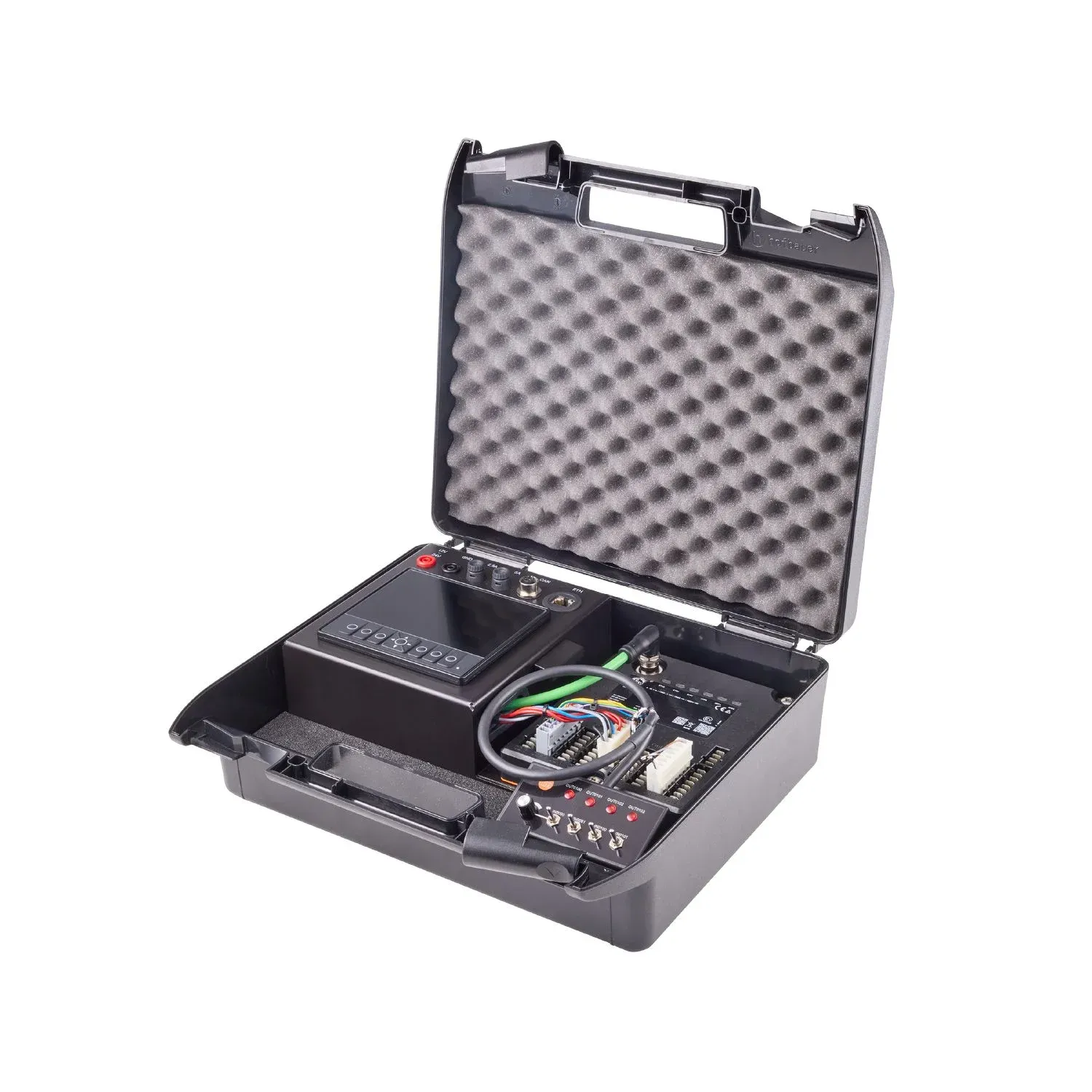

Set for familiarising yourself with mobile controllers and displays
With powerful and easily accessible CAN and Ethernet interface

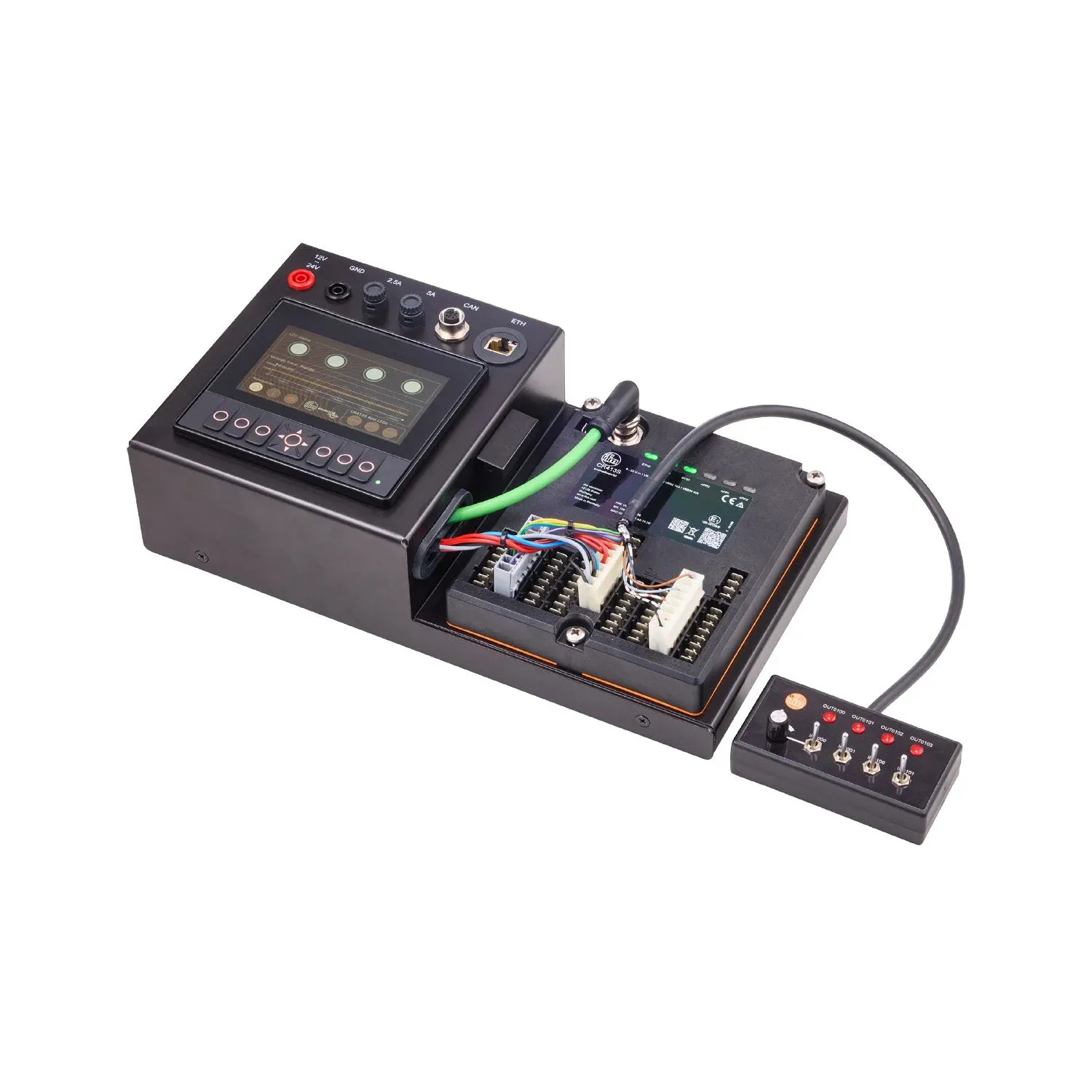

With I/O simulator box for easy setting of inputs and outputs
Can be used immediately thanks to pre-assembly
Specification
Product characteristics
| Communication interface | CAN; Ethernet |
|---|
Application
| Application | for test and training purposes |
|---|---|
| Components | ecomatBasic: 1, CR413S ecomatDisplay: 1, CR1140 I/O simulator box: 1 Anschluss-Set für Controller: 1 Ethernet switch: 1, (integrated) |
Electrical data
| Operating voltage [V] | 12...24 DC |
|---|---|
| Nominal voltage DC [V] | 12 / 24 |
| Current consumption [mA] | < 2500; (with switched outputs < 7500) |
Software / programming
| Parameter setting options | CODESYS 3.5 |
|---|---|
| PLC function to IEC 61131-3 | yes |
Interfaces
| Communication interface | CAN; Ethernet |
|---|---|
| Number of CAN interfaces | 1 |
| Number of Ethernet interfaces | 1 |
| Factory settings | IP address: 192.168.82.245 |
Mechanical data
| Weight [g] | 3792 |
|---|
Displays / operating elements
| Display | Display unit 4 x LED, red |
|---|---|
| Operating elements | switch/pushbutton 3 x, digital switch/pushbutton, potentiometer 1 x, digital or analogue |
Remarks
| Remarks | more product details can be found under "Downloads" For additional information, please refer to the data sheets and installation instructions for the components listed above. power supply not included |
|---|---|
| Notes | article can only be ordered once per customer |
| Pack quantity | 1 pcs. |
Electrical connection - CAN
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Ethernet
| Connector | 1 x RJ45 |
|---|
