Description

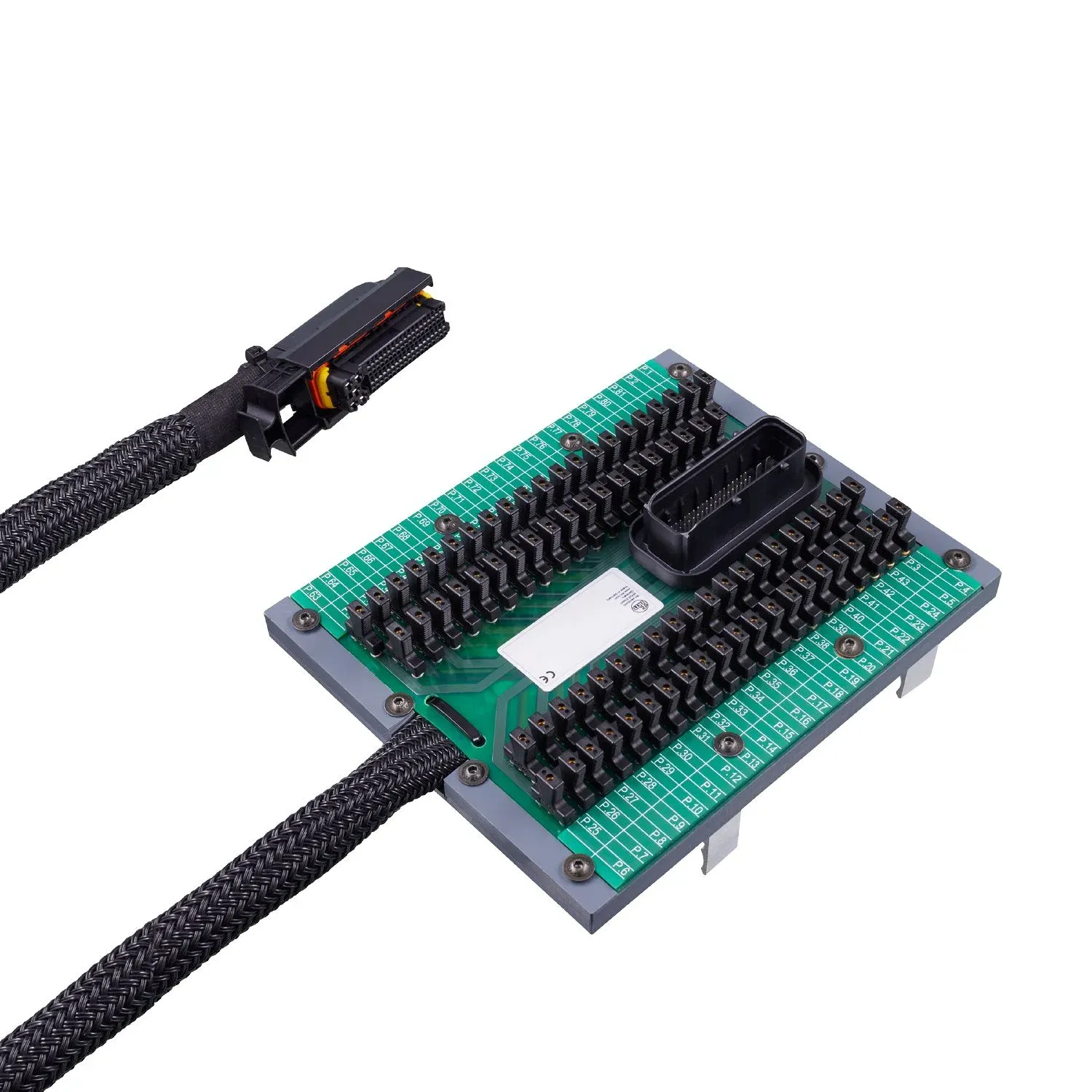

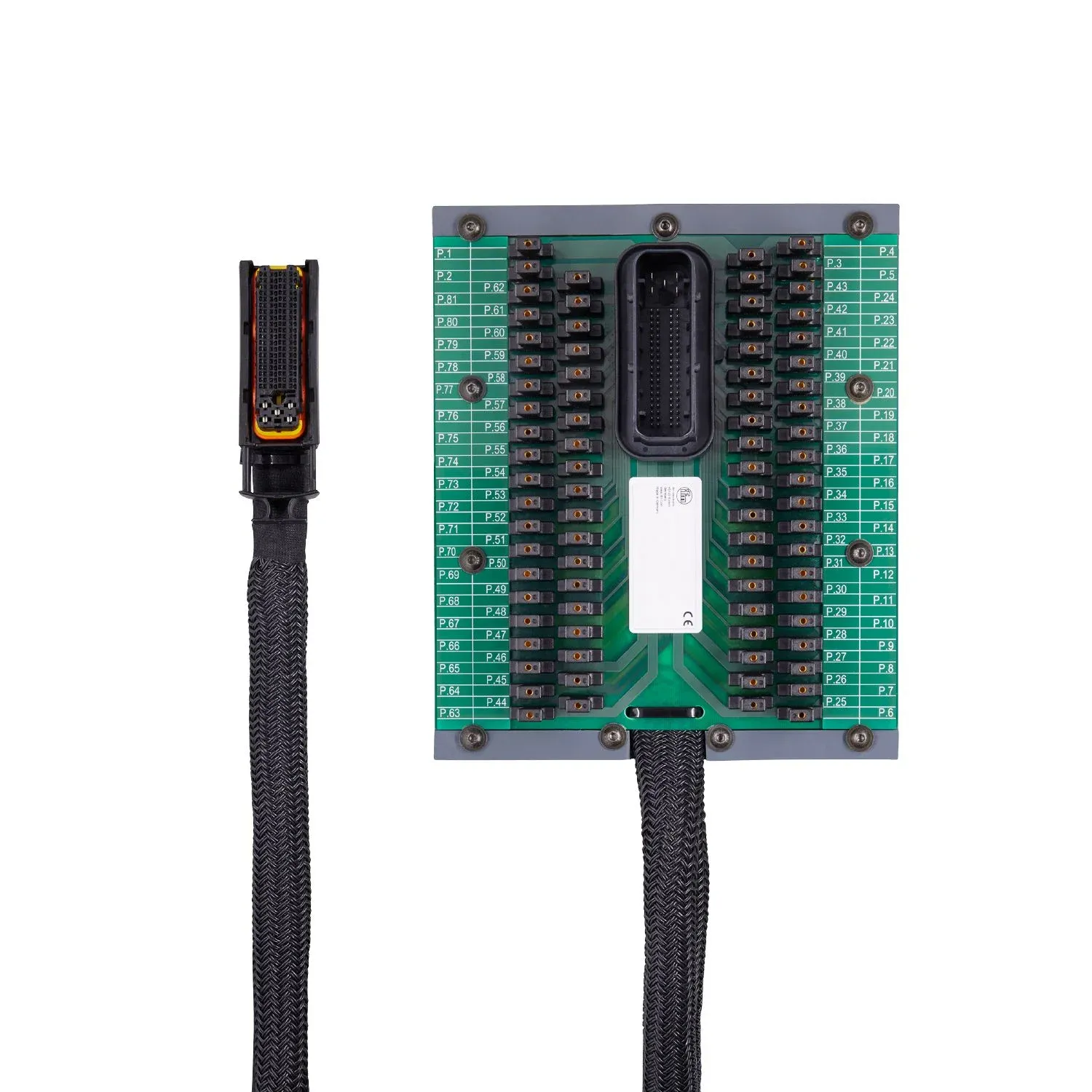

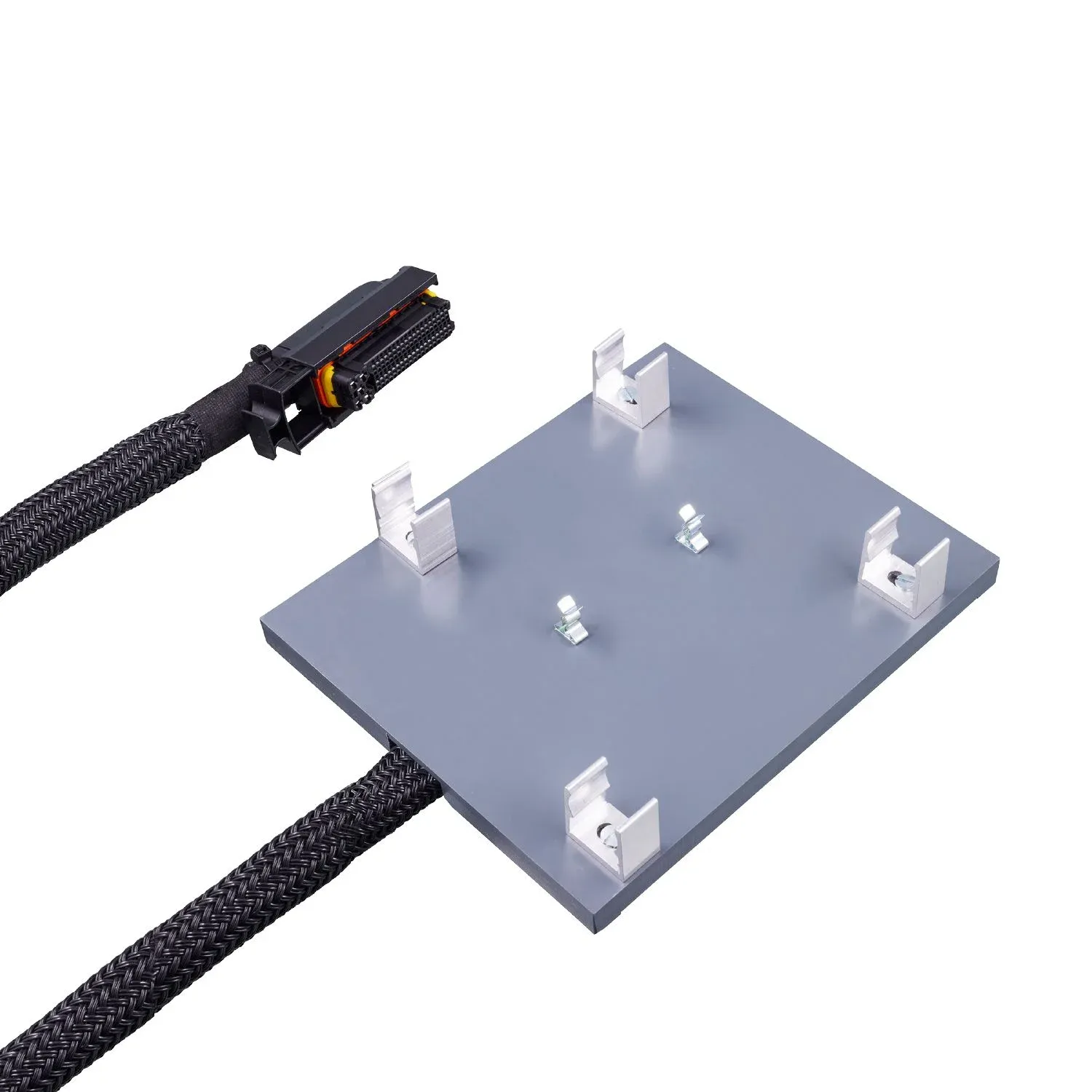

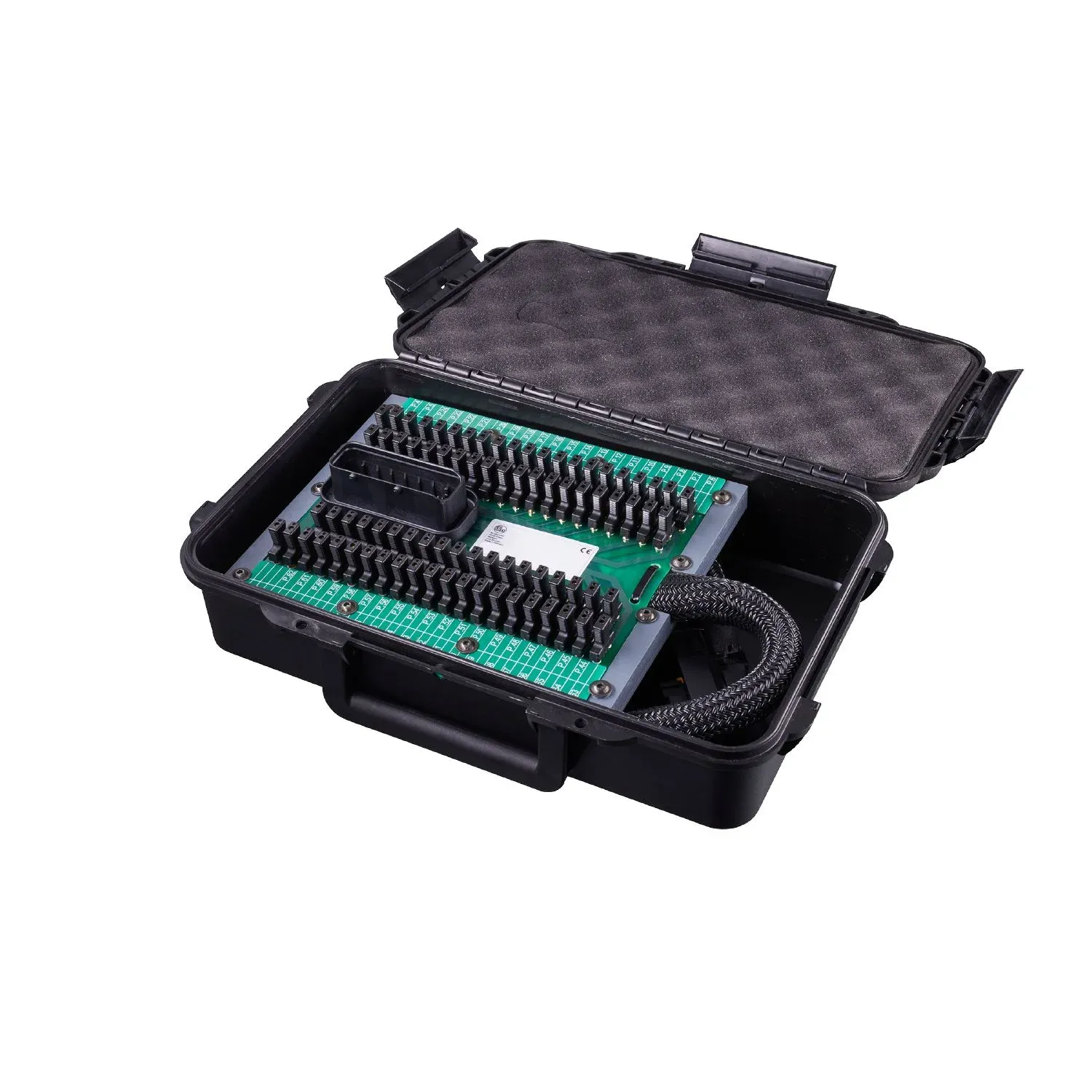

Breakout box for ecomatControllers for efficient troubleshooting in the machine
Compatible with the ecomatControllers’ A and B connectors
Access to all I/Os for current and voltage measurement
Immediately ready for use – measurements are possible in both series and parallel connections
Specification
Application
| Application | current measurement; voltage measurement |
|---|
Electrical data
| Operating voltage[V] [V] | 8...32 DC |
|---|---|
| Reverse polarity protection | yes |
| Max. current load total[A] [A] | 4; (max.; total current / group ≤ 12 A) |
Operating conditions
| Ambient temperature[°C] [°C] | 0...40 |
|---|---|
| Protection | IP 20 |
Mechanical data
| Weight[g] [g] | 2250 |
|---|---|
| Dimensions[mm] [mm] | 350 x 230 x 86 |
| Materials | case: polypropylene black |
Electrical connection
| Number of connections | 81 |
|---|---|
| Required protection | according to ecomatController operating instructions only install jumpers when disconnected VBB15 2 A VBB30 2 A VBB0 15 A VBB1 ≤ 15 A VBB2 ≤ 15 A Inputs 2 A |
| VBB15 | 2 A |
| VBB30 | 2 A |
| VBB0 | 15 A |
| VBB1 | ≤ 15 A |
| VBB2 | ≤ 15 A |
| Inputs | 2 A |
Accessories

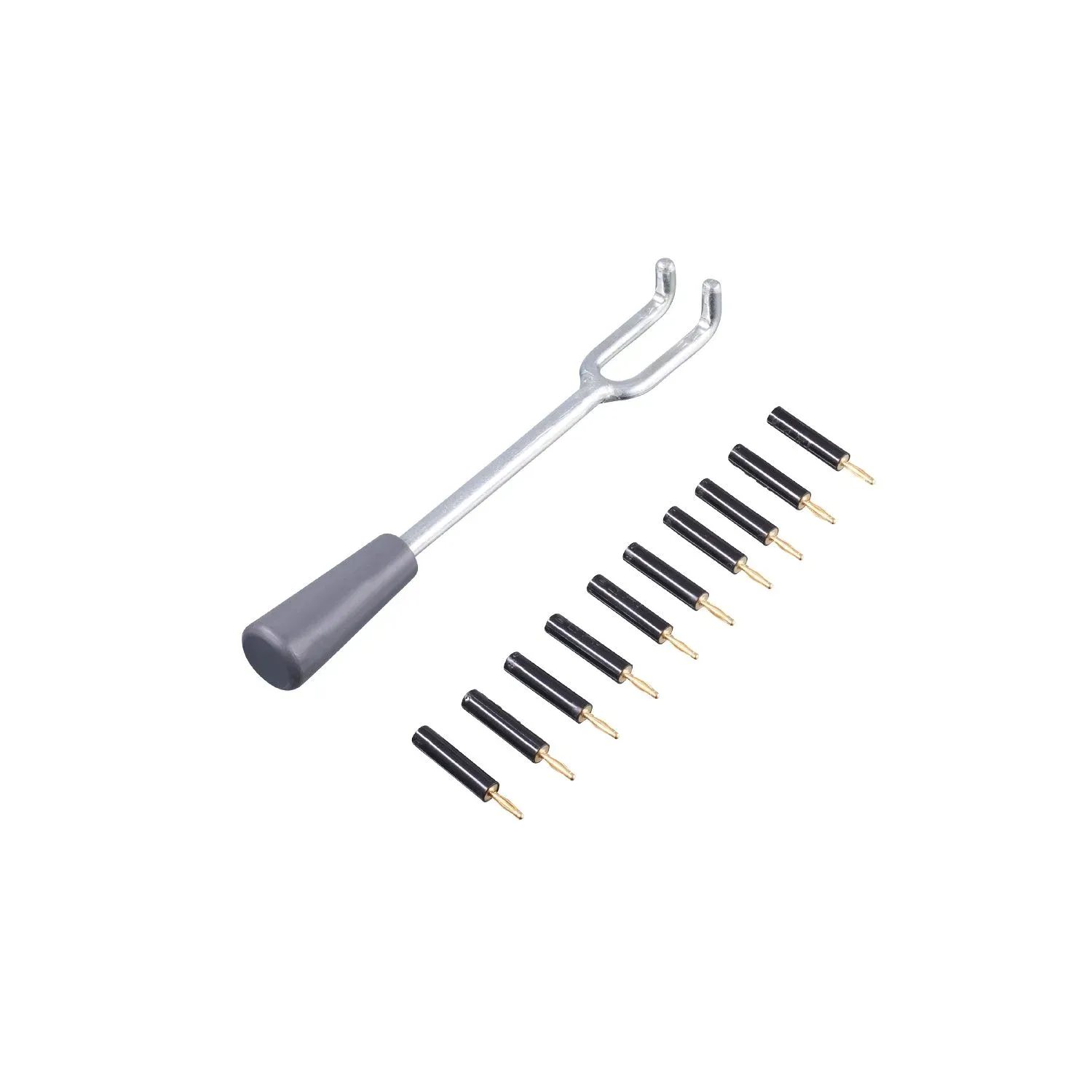

| Items supplied | extraction tool for connectors: 1 mounting jumpers: 81 x contact pin : 2 mm / socket: 4 mm wiring diagrams for ecomatController: 1, CR0708, CR0709, CR710S, CR711S, CR720S, CR721S |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - AMP socket
| Connector | 1 x AMP; Moulded body: black |
|---|
Electrical connection - Cable
| Cable | 1.0 m; FLRY-B; protective tube; 76 x 0.5 mm², PVC + 5 x 1.0 mm², PVC |
|---|
Electrical connection - AMP connector
| Connector | 1 x AMP |
|---|
Electrical connection - PCB
| mounting jumpers | 81 x ; Spacing: 12 mm; diameter: 2 mm, fully insulated, gold-plated |
|---|
