IFM EC2116
EC2116
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns

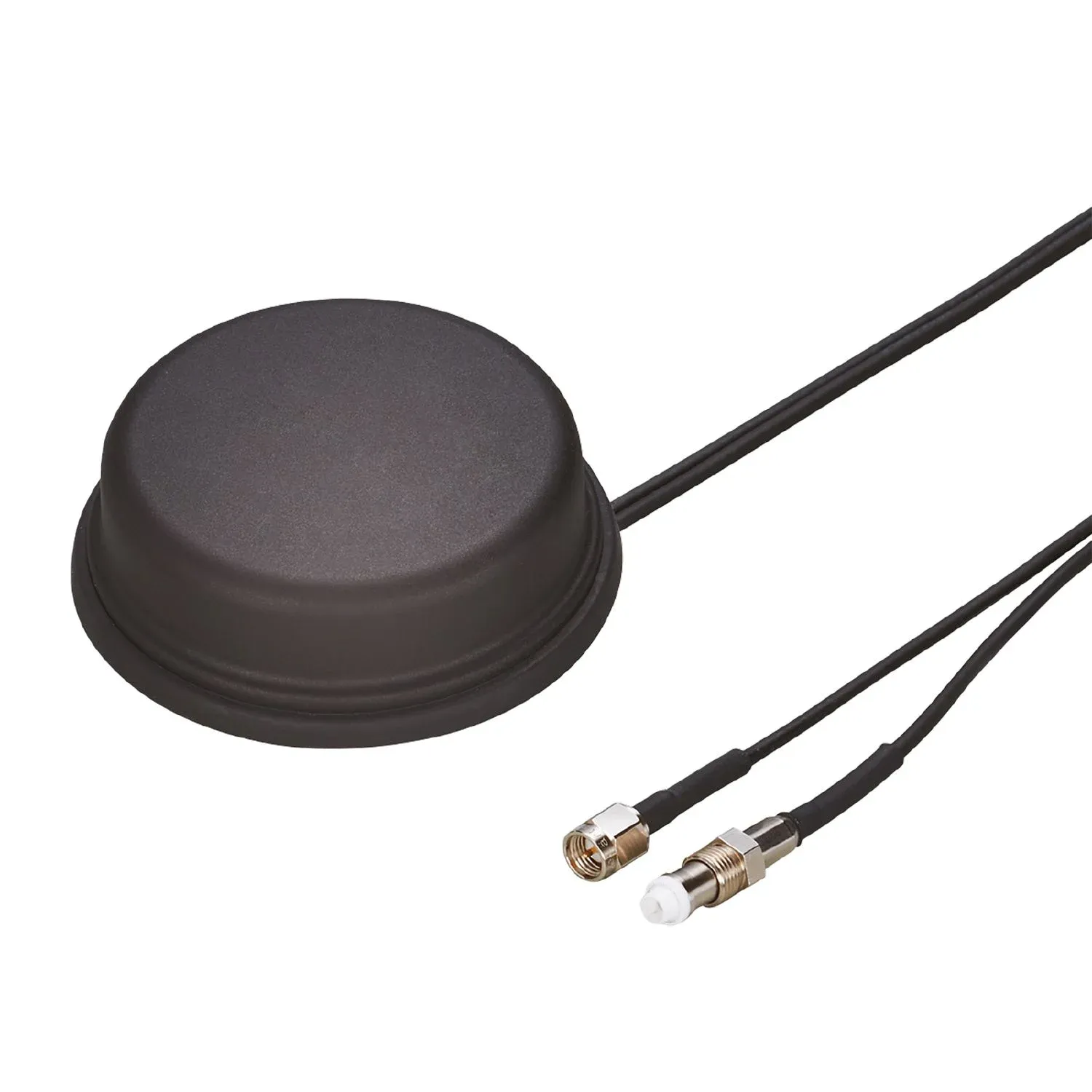

Description
For the reception of GPS data and for communication in mobile networks
With integrated amplifier
High-performance CAN interface for various communication tasks
Robust design for use in mobile machines
Flat housing for roof mounting on vehicles and mobile machines
Specification
Electrical data
| Operating voltage[V] [V] | via the internal wire of the GPS connection |
|---|---|
| Current consumption[mA] [mA] | < 30 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Protection | IP 66; (when mounted (outer washer and O-ring in the thread area)) |
Mechanical data
| Weight[g] [g] | 156.9 |
|---|---|
| Type of mounting | Gewinde |
| Tightening torque[Nm] [Nm] | < 5 |
Remarks
| Remarks | When mounting the antenna(s) in vehicles avoid the vicinity of fuel tanks, vessels with explosives or insufficiently screened electronic components. Do not install antenna inside closed metal construction (e.g. in driver's cabin). Clean the mounting surface before the installation. Do not extend or shorten antenna cable. Avoid direct exposure to steam or high-pressure cleaning during car wash. Radio communication can affect the function of electronic devices that are not correctly shielded. Contact the manufacturer of the corresponding device in case of any interference. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 3 m |
|---|
Electrical connection - GPS
| Connector | SMA |
|---|
Electrical connection - GSM
| Connector | FME |
|---|
