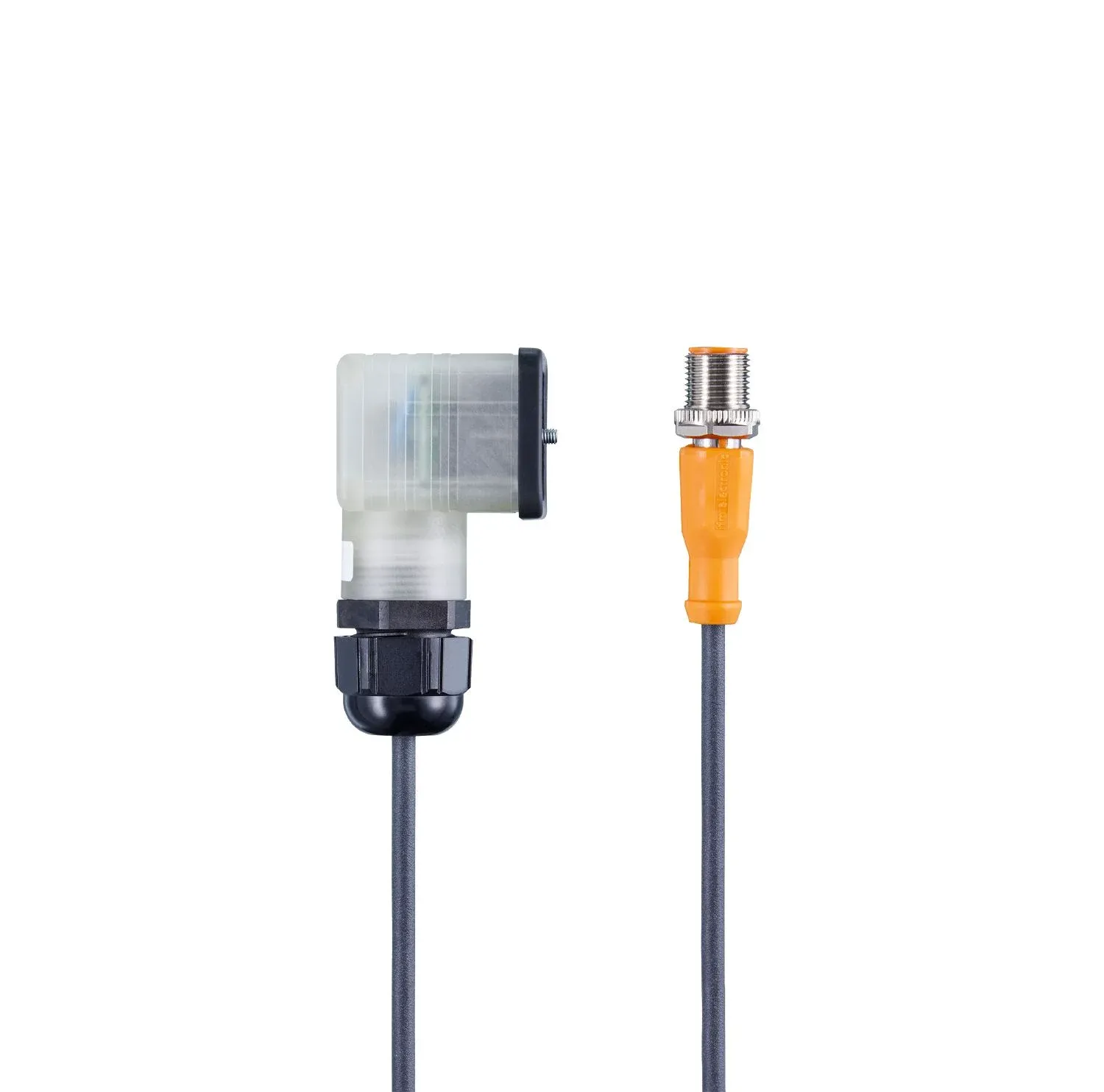

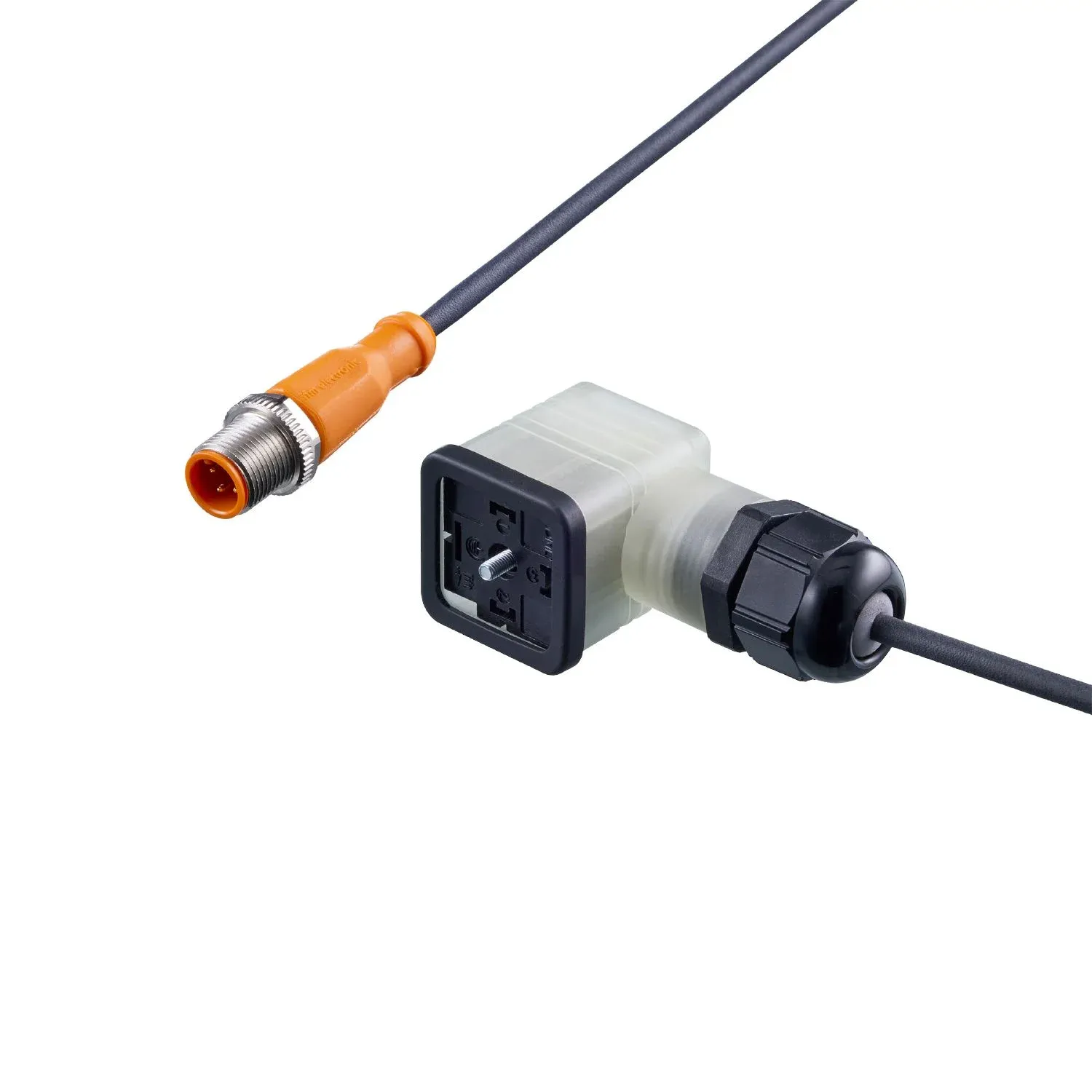

IFM EC2088
EC2088
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable connection of valves in the field
Angled type for use where space is restricted
Wide operating temperature range
Robust rectangular connector
Specification
Application
| Special feature | Halogen-free |
|---|
Electrical data
| Operating voltage[V] [V] | < 250 AC/DC |
|---|---|
| Protection class | II |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Note on ambient temperature | valve plug: -30 ... 90 °C M12 connector: -25 ... 90 °C |
| Protection | IP 65; (M12 connector: IP65, IP67, IP68, IP69K) |
Mechanical data
| Weight[g] [g] | 82 |
|---|---|
| Moulded-body material | PA-GF, Halogen-free / TPU, Halogen-free |
| Material nut | steel, galvanised / brass, nickel-plated |
| Sealing material | NBR / CR |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket
| Connector | 1 x valve type A DIN, angled; Moulded body: PA-GF, Halogen-free, black; Locking: steel, galvanised; Sealing: NBR / CR; Contacts: brass; Tightening torque: 0.5...0.6 Nm |
|---|
Electrical connection - Cable
| Cable | 0.24 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm ) |
|---|
Electrical connection - plug
| Connector | 1 x M12, straight; coding: A; Moulded body: TPU, Halogen-free, orange; Locking: brass, nickel-plated; Tightening torque: 0.6...1.5 Nm |
|---|
