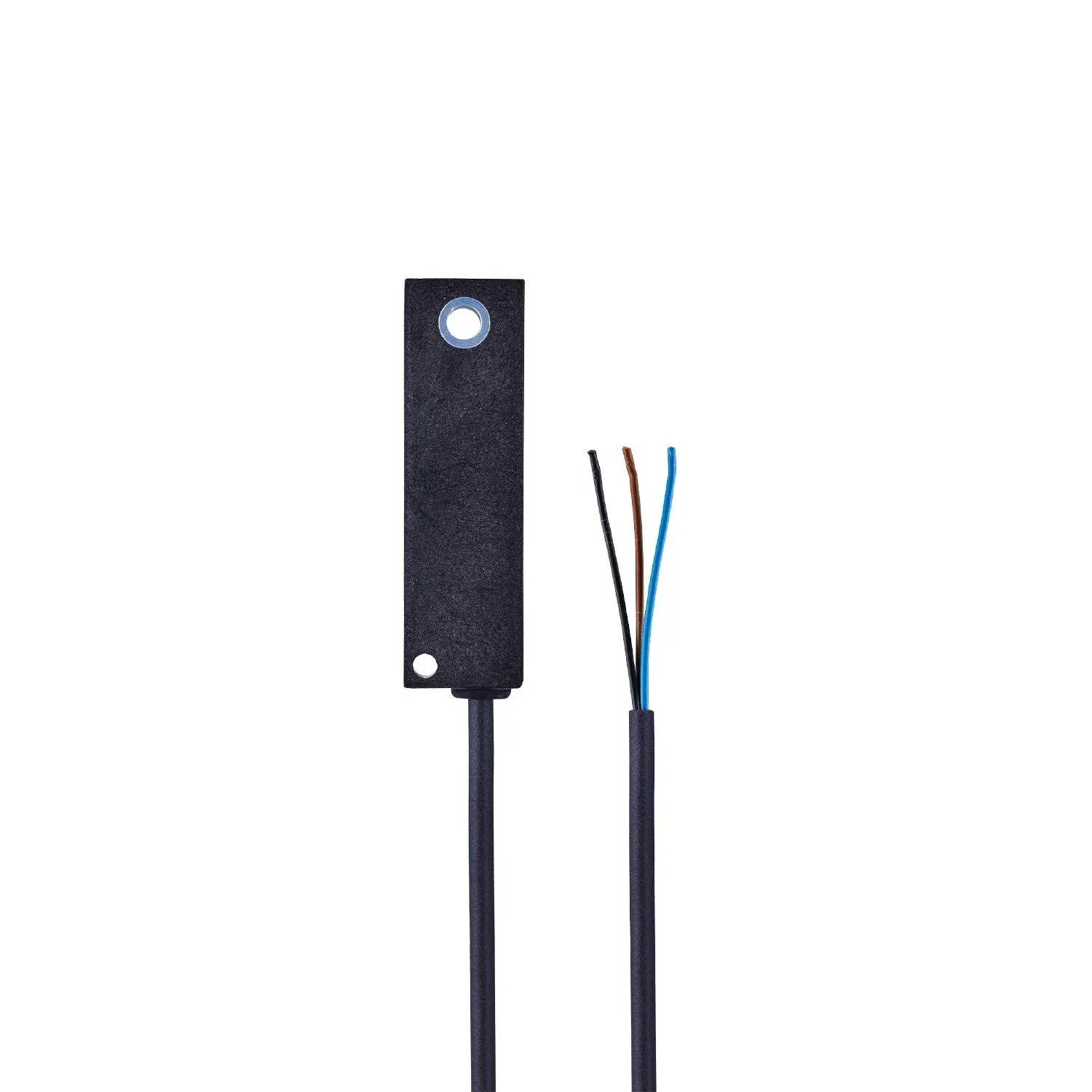

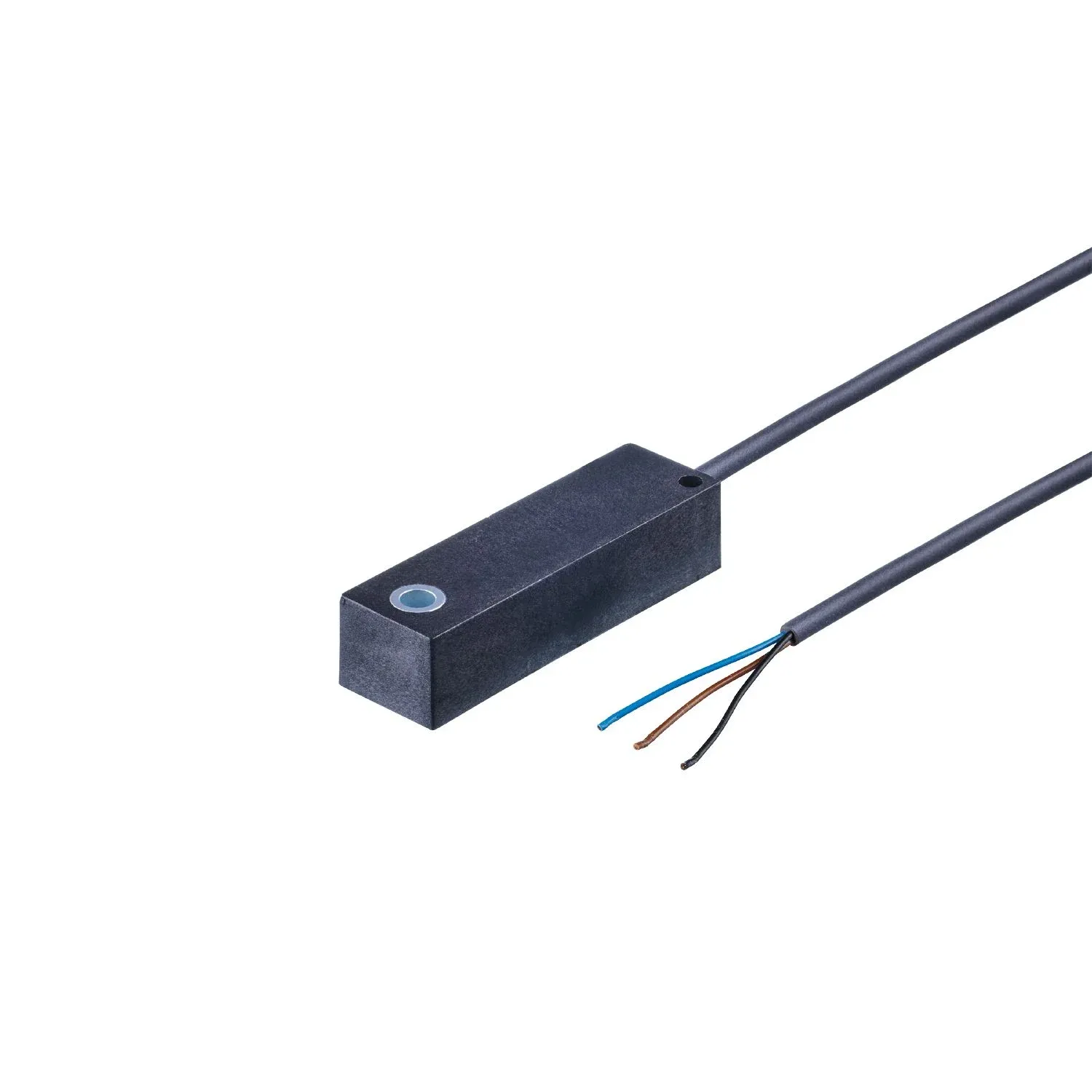

IFM EC2061
EC2061
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise zero-point detection
High repeatability
Precise switching output
Compact design
Specification
Product characteristics
| Number of measurement axes | 1; (Z) |
|---|---|
| Angular range[°] [°] | 1…-6 |
| Housing | rectangular |
Application
| Function principle | static |
|---|---|
| Operating principle | noble metal with liquid |
| Application | industrial application; mobile applications |
Electrical data
| Operating voltage[V] [V] | 8...30 DC |
|---|---|
| Max. current consumption[mA] [mA] | 700 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
Outputs
| Output signal | switching signal; (see characteristics) |
|---|---|
| Number of digital outputs | 1 |
| Output function | normally open |
Measuring/setting range
| Note on setpoint SP | switch point (ON): 0° = horizontal (absolute) installation position reset point (OFF): -2...-5° (counterclockwise movement of the cable outlet) hysteresis SP and RP: +/- 1° |
|---|---|
| Number of measurement axes | 1; (Z) |
| Angular range[°] [°] | 1…-6 |
Accuracy / deviations
| Accuracy[°] [°] | 0,2 |
|---|---|
| Repeatability[°] [°] | <0,2 |
Operating conditions
| Ambient temperature[°C] [°C] | -30...80 |
|---|---|
| Storage temperature[°C] [°C] | -30...80 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 61000-6-3 noise emission class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 61000-6-3 noise emission | class B |
| Shock resistance | EN 60068-2-29 30 g 6 ms / 24000 shocks |
| EN 60068-2-29 | 30 g 6 ms / 24000 shocks |
| Vibration resistance | DIN EN 60068-2-6 10 g (10...500 Hz) / 10 frequency cycles in 3 axes DIN EN 60068-2-64 (10...2000 Hz) / 32 hours in 3 axes |
| DIN EN 60068-2-6 | 10 g (10...500 Hz) / 10 frequency cycles in 3 axes |
| DIN EN 60068-2-64 | (10...2000 Hz) / 32 hours in 3 axes |
| MTTF[years] [years] | 571 |
Mechanical data
| Weight[g] [g] | 226.9 |
|---|---|
| Housing | rectangular |
| Type of mounting | Metallbuchse Ø 6,3 mm zur Befestigung des Neigungsschalters Loch Ø 4,5 mm zur Fixierung des Neigungsschalters |
| Dimensions[mm] [mm] | 75 x 22 x 18 |
| Installation position | horizontal |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 3.1 m, PVC |
|---|
