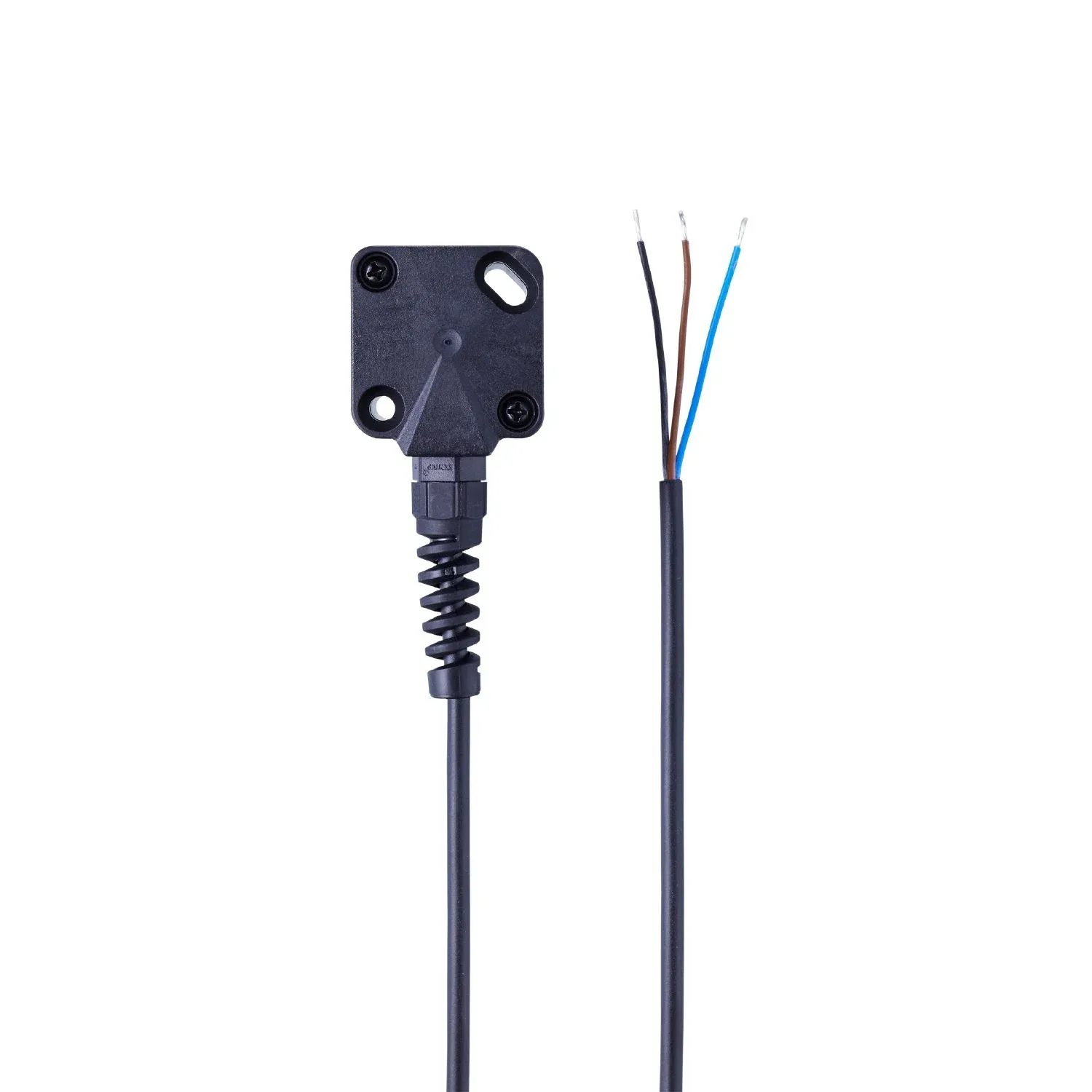

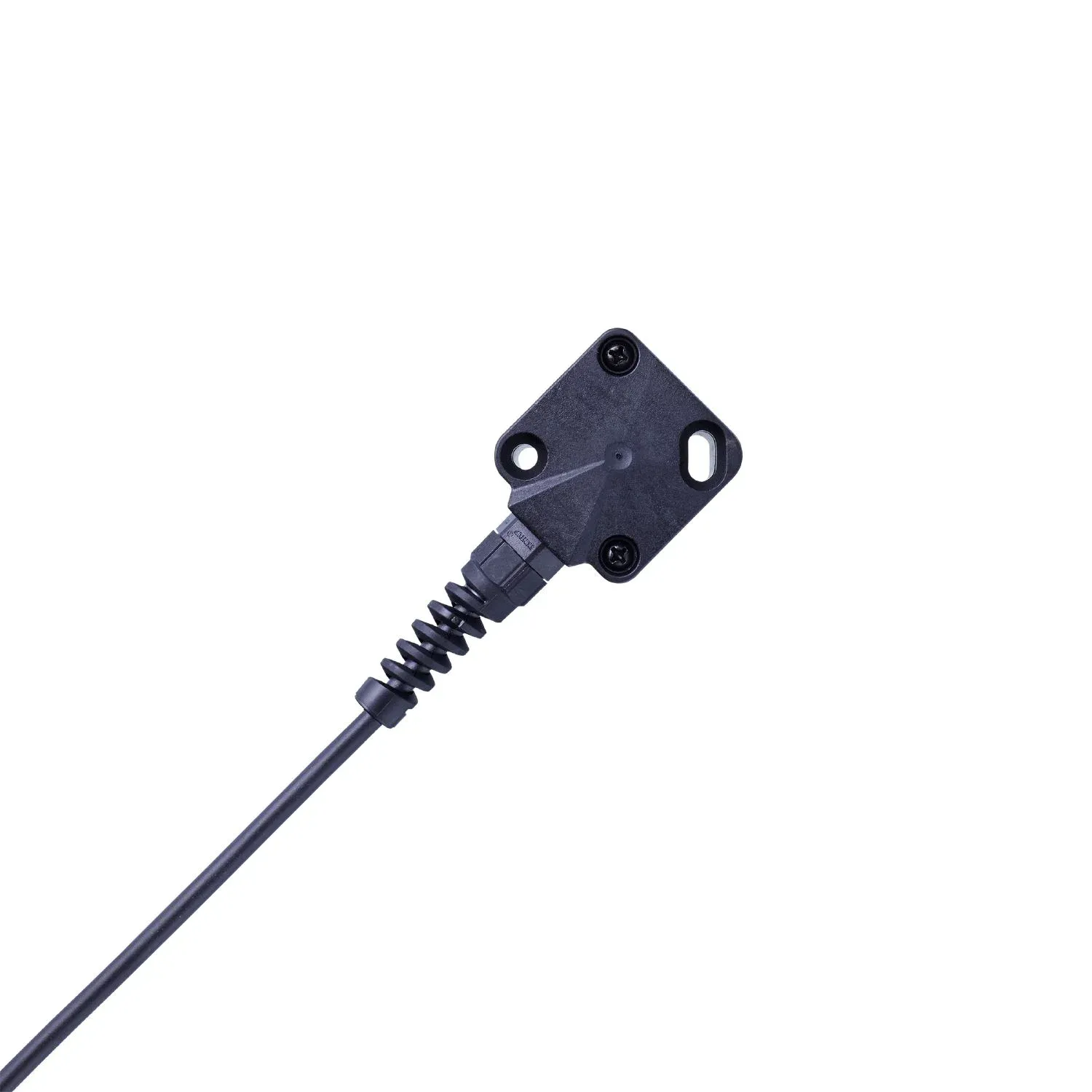

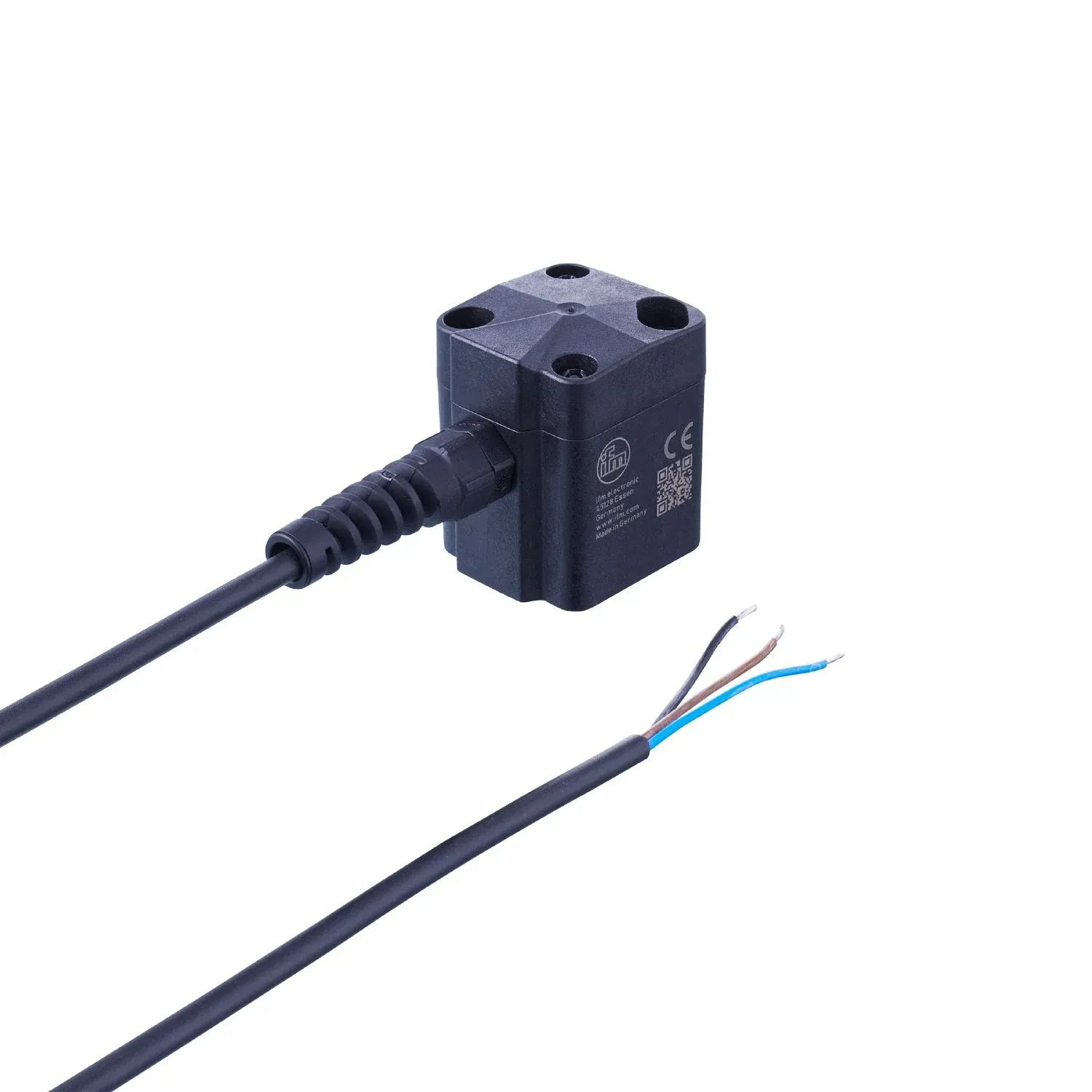

IFM EC2045
EC2045
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Precise detection of angles of inclination
High repeatability
Precise analogue output
Suited for use in mobile machines
Specification
Product characteristics
| Number of measurement axes | 1 |
|---|---|
| Angular range[°] [°] | ± 90 |
Application
| Function principle | static |
|---|---|
| Application | industrial application; mobile applications |
Electrical data
| Operating voltage[V] [V] | 8...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 35 |
| Protection class | III |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Output signal | analogue signal; (see characteristics) |
|---|---|
| Number of analogue outputs | 1 |
| Analogue voltage output[V] [V] | 0.5...4.5 |
| Min. load resistance[Ω] [Ω] | 50000 |
| Overload protection | yes |
Measuring/setting range
| Number of measurement axes | 1 |
|---|---|
| Angular range[°] [°] | ± 90 |
Accuracy / deviations
| Repeatability[°] [°] | 0,1 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -30...85 |
|---|---|
| Storage temperature[°C] [°C] | -30...85 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 61000-6-3 noise emission class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 61000-6-3 noise emission | class B |
| Shock resistance | EN 60068-2-29 30 g 6 ms / 24000 shocks |
| EN 60068-2-29 | 30 g 6 ms / 24000 shocks |
| Vibration resistance | DIN EN 60068-2-6 10 g (10...500 Hz) / 10 frequency cycles in 3 axes DIN EN 60068-2-64 (10...2000 Hz) / 32 hours in 3 axes |
| DIN EN 60068-2-6 | 10 g (10...500 Hz) / 10 frequency cycles in 3 axes |
| DIN EN 60068-2-64 | (10...2000 Hz) / 32 hours in 3 axes |
| MTTF[years] [years] | 884 |
Mechanical data
| Weight[g] [g] | 282 |
|---|---|
| Dimensions[mm] [mm] | 40.5 x 40.5 x 52.2 |
| Materials | housing: PPO |
| Tightening torque[Nm] [Nm] | 1.8 |
| Installation position | vertical |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 3.5 m, PUR |
|---|
