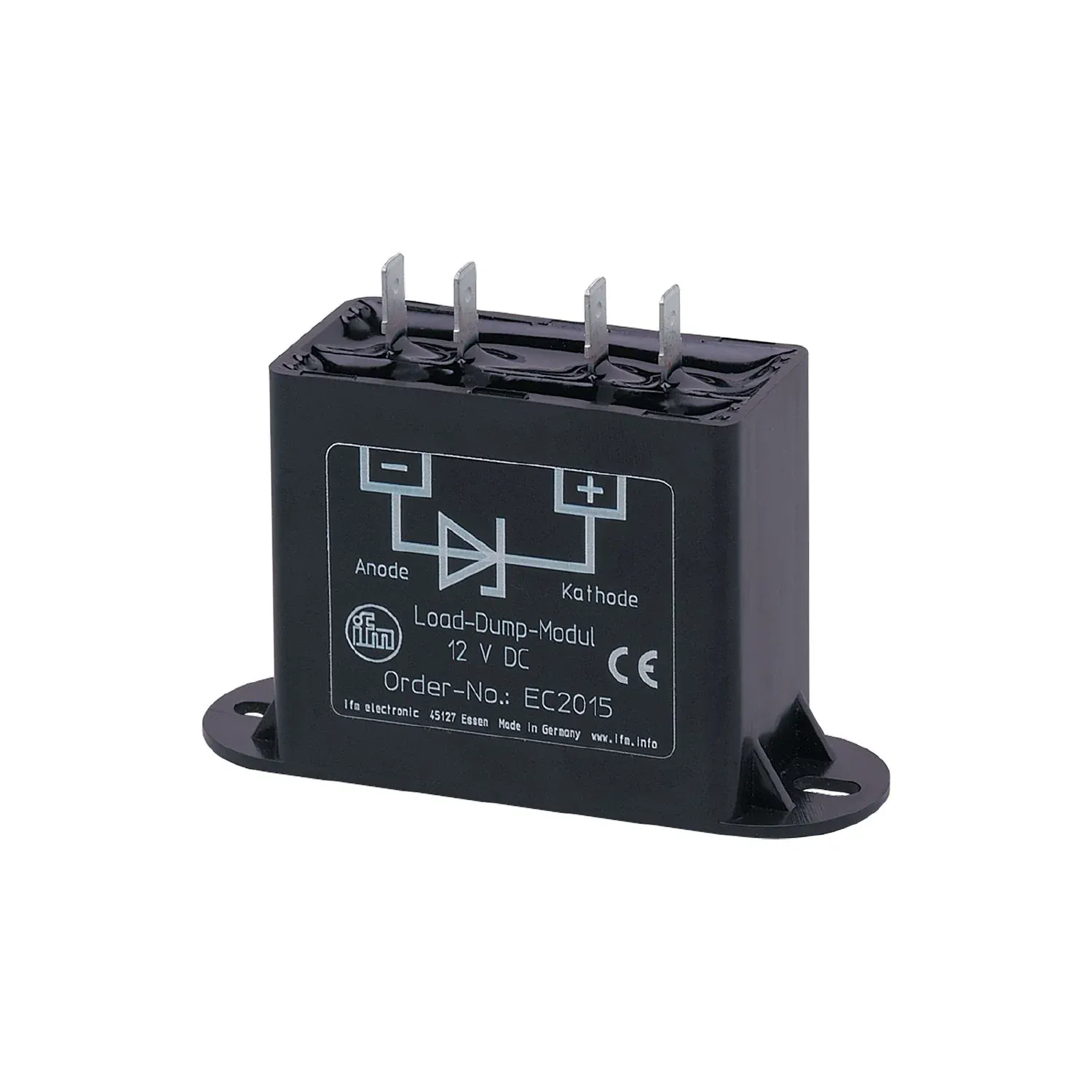

IFM EC2015
EC2015
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Efficient protection of electronic devices and components against peak voltages
For use in on-board systems of mobile machines
Connection via 6.3 mm flat-pin connector
Specification
Electrical data
| Operating voltage[V] [V] | 12 DC |
|---|---|
| Overvoltage protection | yes; (peak current ≤ 32,5 A, , Peak voltage ≤ 35 V) |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
Tests / approvals
| EMC | ISO 7637-2 pulse 5A 100 V (amplitude) ≤ 350 ms (pulse duration) 2 Ω (internal resistance) |
|---|---|
| ISO 7637-2 pulse 5A | 100 V (amplitude) |
Mechanical data
| Weight[g] [g] | 197.5 |
|---|---|
| Dimensions[mm] [mm] | 64.5 x 96 x 33 |
Remarks
| Remarks | Reverse polarity protection must be ensured indirectly via a corresponding fuse. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 4 x flat-pin connector (6.3 mm) |
|---|
