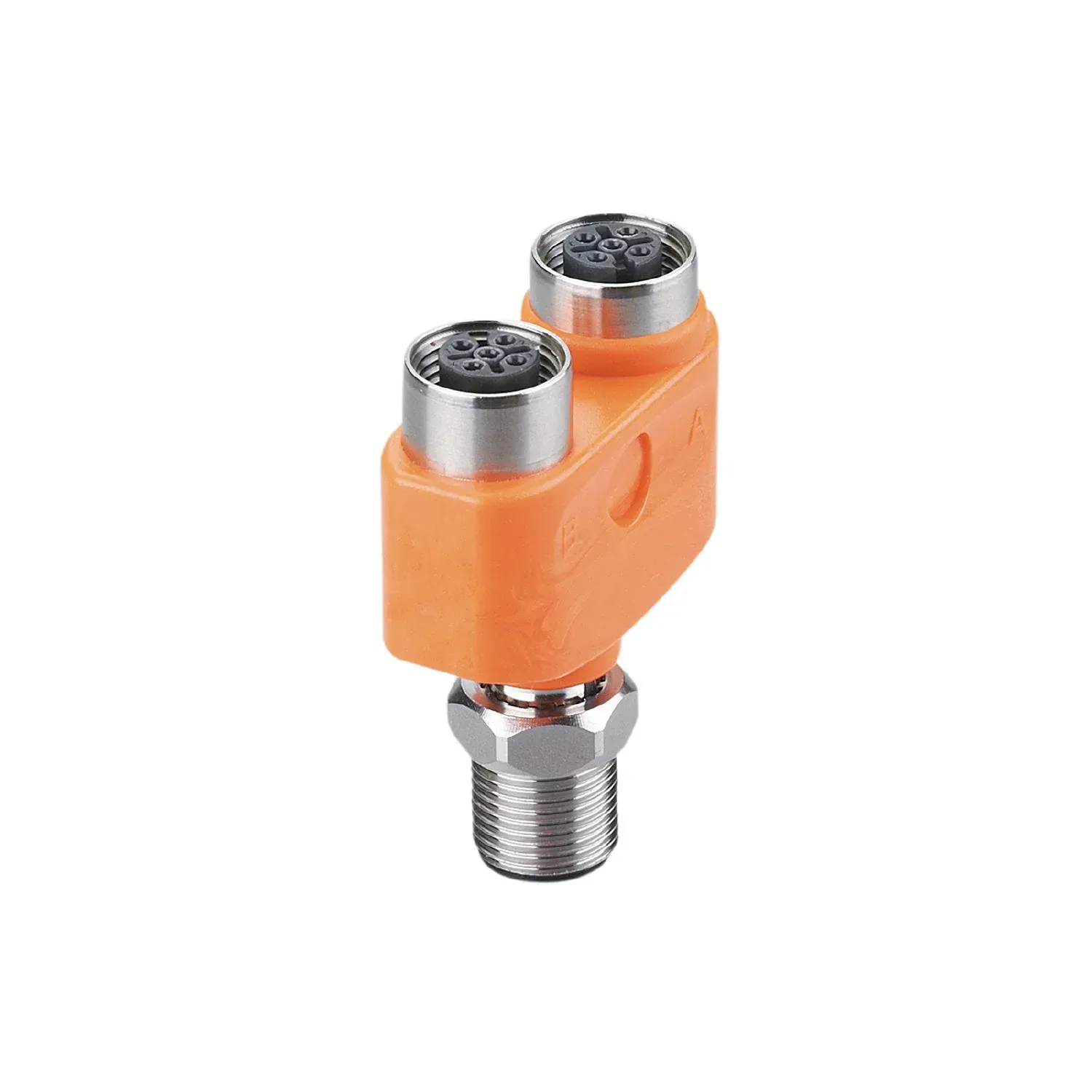

IFM EBT006
EBT006
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Resistant to high-pressure cleaning with aggressive cleaning agents
For use in applications with many inputs and outputs where space is restricted
Visual and tactile marking of the ports
High protection rating for the requirements of the food and beverage industry
Mechanical end stop to protect the O-ring from destruction
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 250 AC / < 300 DC; (cULus: 30 AC / 42 DC) |
|---|---|
| Protection class | II |
| Max. current load per module/slot[A] [A] | 4 |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...100 |
|---|---|
| Note on ambient temperature | cULus: ...65 °C |
| Storage temperature[°C] [°C] | -25...55 |
| Storage humidity[%] [%] | 10...100 |
| Other climatic conditions for storage according to stated class | 1K22/ DIN 60721-3-1 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| UL approval | power supply Class 2 File number UL E191684 |
|---|---|
| power supply | Class 2 |
| File number UL | E191684 |
Mechanical data
| Weight[g] [g] | 34.6 |
|---|---|
| Moulded-body material | PA |
| Material nut | stainless steel (316L/1.4404) |
| Sealing material | EPDM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug C
| Connector | 1 x M12; coding: A; Moulded body: PA, orange; Locking: stainless steel (316L/1.4404); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
Electrical connection - socket A/B
| Connector | 2 x M12; coding: A; Moulded body: PA, orange; Locking: stainless steel (316L/1.4404); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
