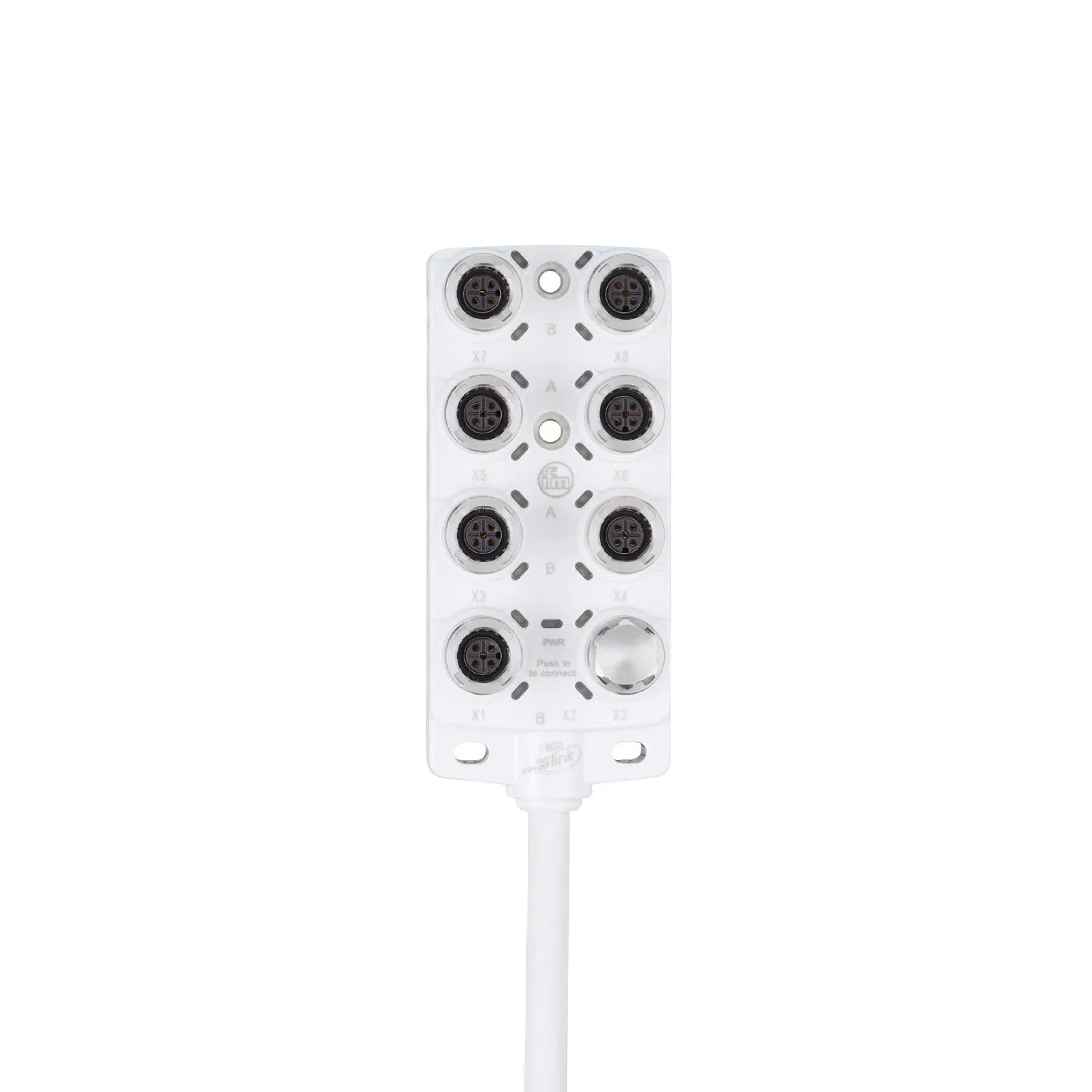

IFM EBF030
EBF030
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Secure connection via simple plug-in thanks to ecolink Fast Connect technology
Compatible with all standardised M12 connectors
High protection rating for the requirements of the food and beverage industry
Robust design thanks to full potting
High protection against shock and vibration
Specification
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Application | hygienic and wet areas in the food industry |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 30 DC |
|---|---|
| Protection class | II |
| Max. current load per module/slot[A] [A] | 4 |
| Max. current load total[A] [A] | 12 |
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -5...60 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight[g] [g] | 3422.917 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 130.2 x 56 x 34.9 |
| Materials | housing: PA |
| Material nut | stainless steel (316L/1.4404) |
| Sealing material | EPDM |
| Number of ports splitter box | 8 |
| Connector type | M12 |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter bending radius for fixed installation min. 5 x cable diameter travel speed max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s² bending cycles > 1 Mio. torsional strain ± 30 °/m |
| bending radius for flexible use | min. 10 x cable diameter |
| bending radius for fixed installation | min. 5 x cable diameter |
| travel speed | max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s² |
| bending cycles | > 1 Mio. |
| torsional strain | ± 30 °/m |
Displays / operating elements
| Display | switching status 16 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 16 x LED, yellow |
| operation | 1 x LED, green |
Accessories
| Items supplied | Protective caps: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 5 m, MPPE PE, Halogen-free, grey, Ø 9.7 mm; 16 x 0.34 mm² (42 x Ø 0.1 mm ) + 3 x 1.00 mm² (56 x Ø 0.15 mm ) |
|---|
Electrical connection - slot
| Connector | 8 x M12; coding: A; Locking: stainless steel (316L/1.4404); Sealing: EPDM; Contacts: gold-plated; Fast Connect |
|---|
