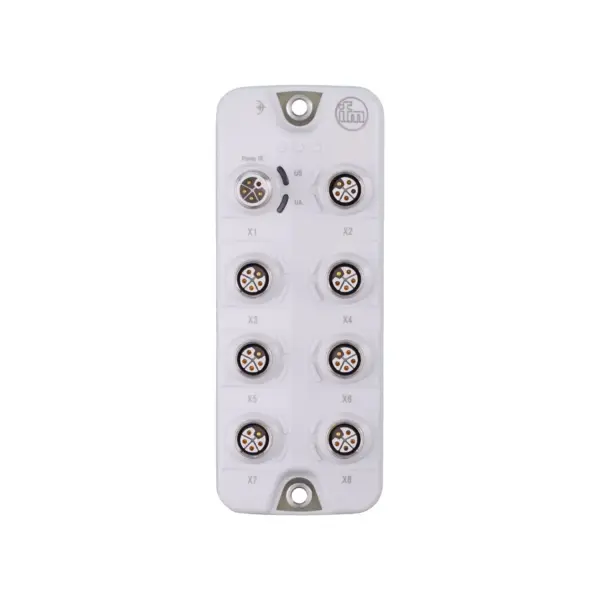

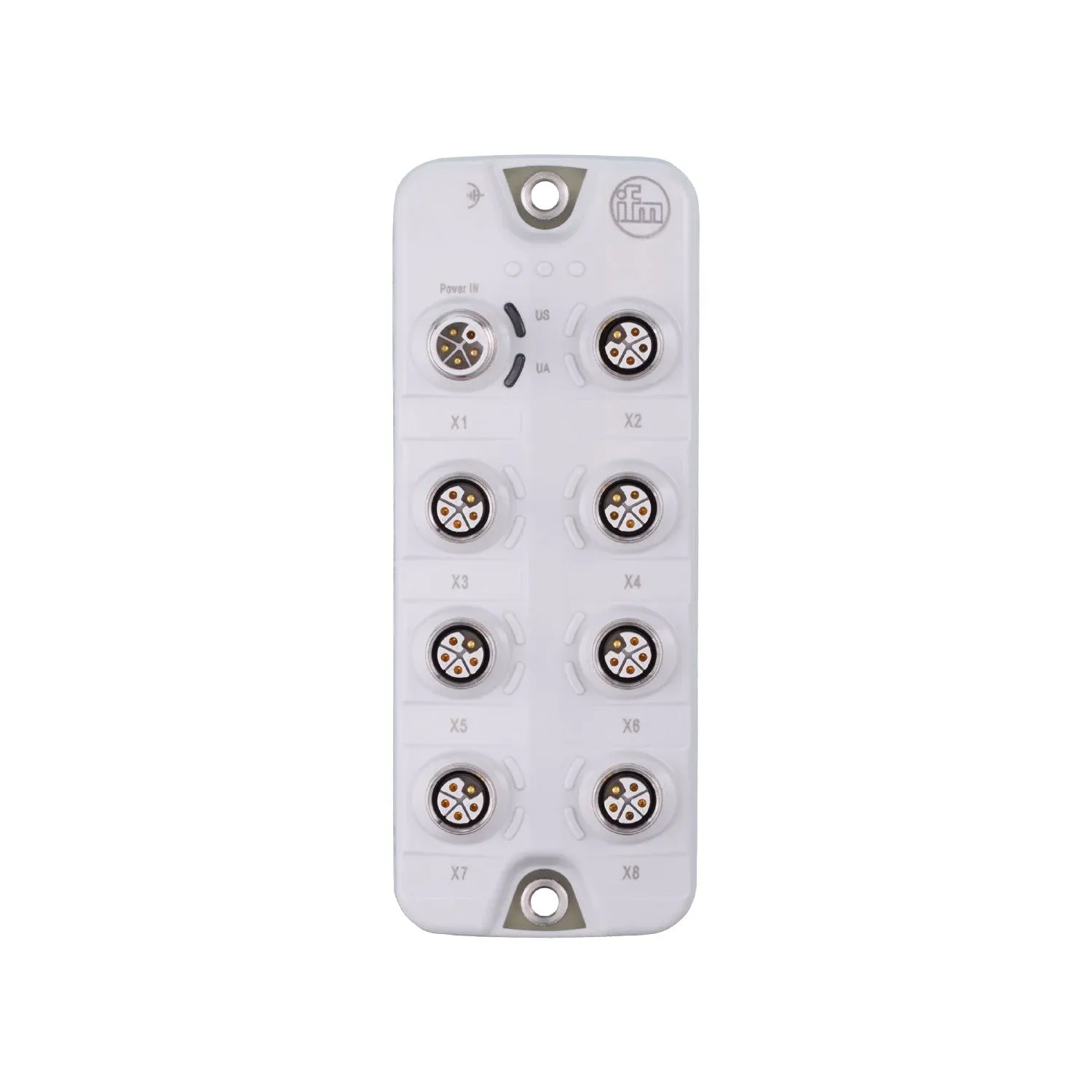

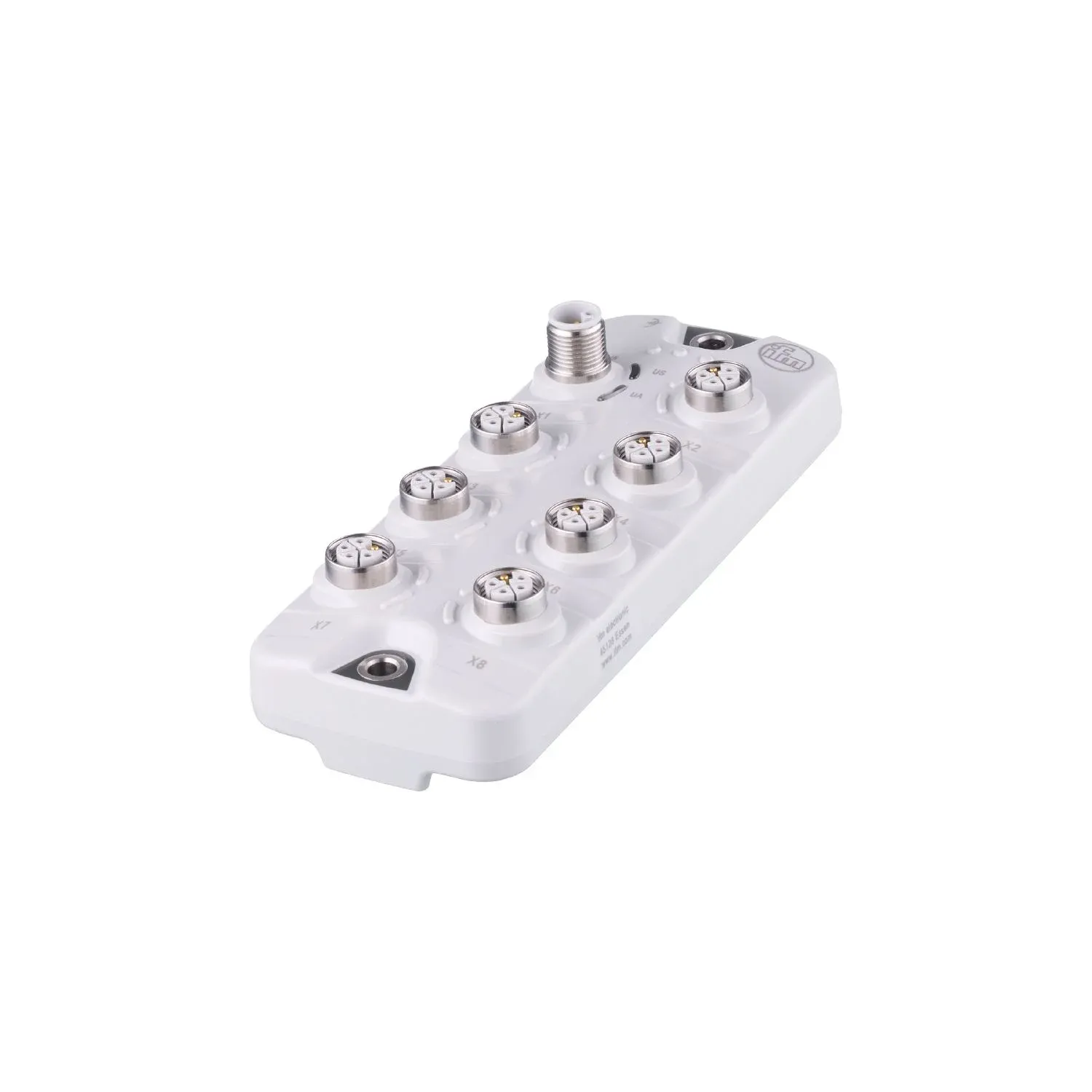

IFM EBF017
EBF017
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Voltage distribution with standardised L-coded M12 connection technology
Robust design thanks to full potting
Large operating temperature range and high protection rating
Permanent, reliable sealing even when mounted without tools
For use in hygienic and wet areas in the food industry
Specification
Application
| Special feature | Free from silicone |
|---|---|
| Application | hygienic and wet areas in the food industry |
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | 20...30 DC |
|---|---|
| Protection class | III |
| Max. current load per module/slot[A] [A] | 16 |
| Max. current load total[A] [A] | 16 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...55 |
| Storage humidity[%] [%] | 10...100 |
| Other climatic conditions for storage according to stated class | 1K22 DIN 60721-3-1 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67; IP 69K; (with mounted connectors or protective caps) |
Mechanical data
| Weight[g] [g] | 328.377 |
|---|---|
| Materials | housing: PA grey Halogen-free; Protective cap: stainless steel |
| Material nut | stainless steel (316L/1.4404) |
| Sealing material | EPDM |
Displays / operating elements
| Display | operation 1 x LED, green US operation 1 x LED, green UA |
|---|---|
| operation | 1 x LED, green UA |
Accessories
| Items supplied | Protective cap: 1 x M12, E12542 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - input
| Connector | 1 x M12; coding: L; Locking: stainless steel (316L/1.4404); Contacts: gold-plated; Tightening torque: 0.7...1.0 Nm |
|---|
Electrical connection - Output
| Connector | 7 x M12; coding: L; Locking: stainless steel (316L/1.4404); Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.7...1.0 Nm |
|---|
