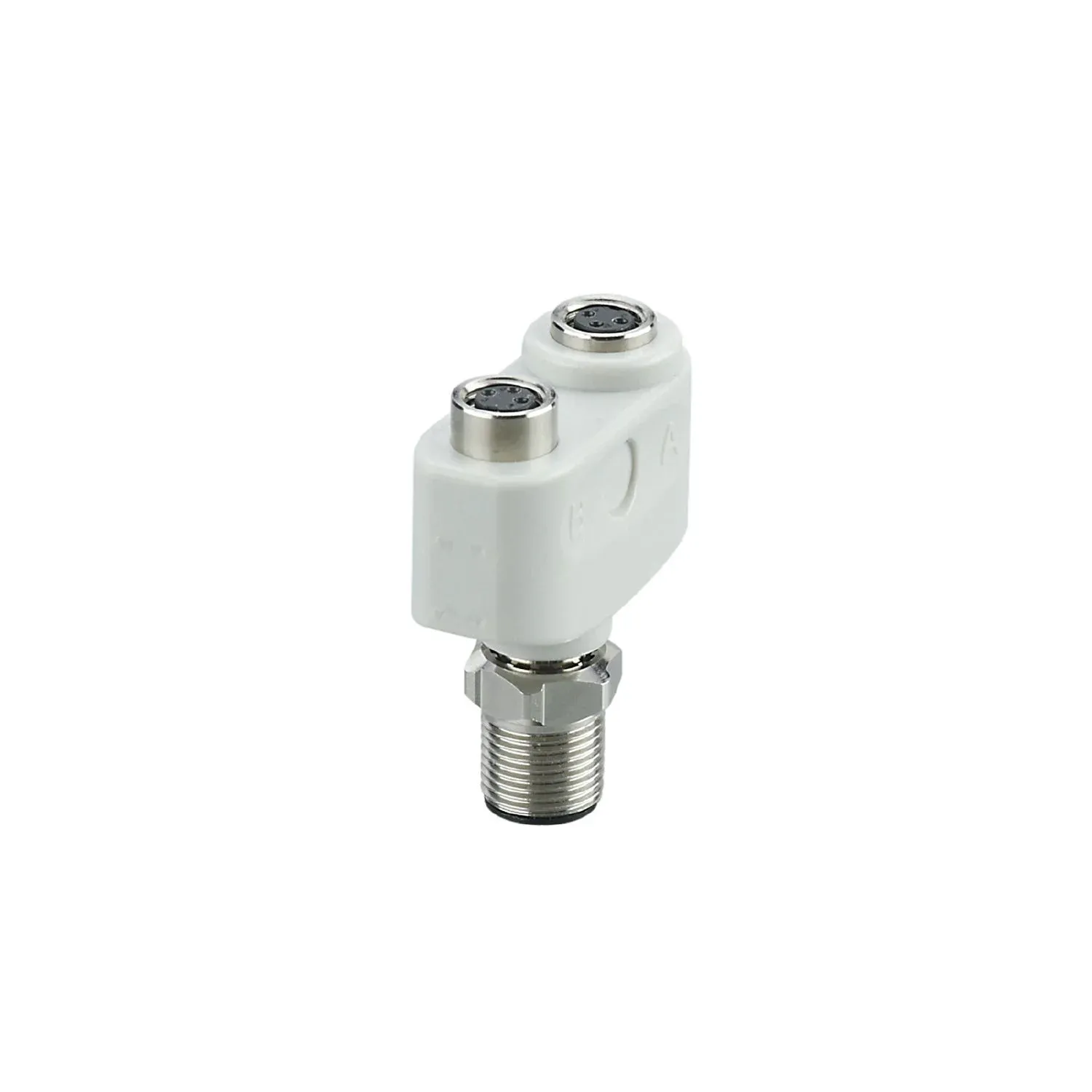

IFM EBF012
EBF012
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Resistant to high-pressure cleaning with aggressive cleaning agents
Halogen and silicone-free
Visual and tactile marking of the ports
High protection rating for the requirements of the food and beverage industry
Mechanical end stop to protect the O-ring from destruction
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 50 AC / < 60 DC; (cULus: 30 AC / 42 DC) |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 3 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Note on ambient temperature | cULus: ...65 °C |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| UL approval | power supply Class 2 File number UL E191684 |
|---|---|
| power supply | Class 2 |
| File number UL | E191684 |
Mechanical data
| Weight[g] [g] | 28.7 |
|---|---|
| Materials | housing: PA grey; Halogen-free |
| Material nut | stainless steel (316L/1.4404) |
| Sealing material | EPDM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| , PUR; flame-retardant (IEC 60332-2, UL | FT2) |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Locking: stainless steel (316L/1.4404); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Take into account the maximum value of the counterpart! |
|---|
