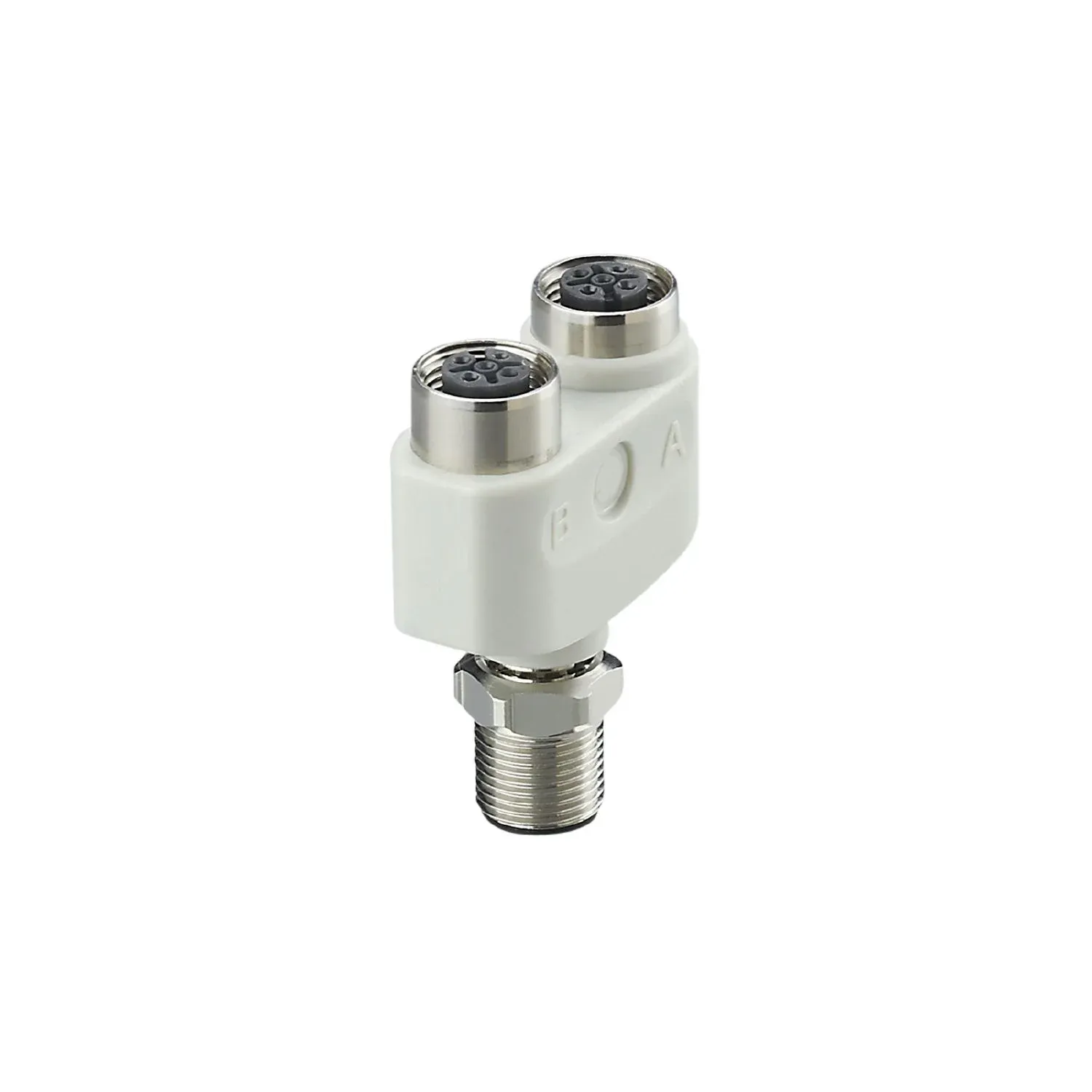

IFM EBF007
EBF007
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Resistant to high-pressure cleaning with aggressive cleaning agents
Halogen and silicone-free
Visual and tactile marking of the ports
High protection rating for the requirements of the food and beverage industry
Mechanical end stop to protect the O-ring from destruction
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 60 AC/DC; (cULus: 30 AC / 42 DC) |
|---|---|
| Protection class | II |
| Max. current load per module/slot[A] [A] | 4 |
| Max. current load total[A] [A] | 4 |
| Overall current rating (UL)[A] [A] | 3 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...100 |
|---|---|
| Note on ambient temperature | cULus: ...65 °C |
| Storage temperature[°C] [°C] | -25...55 |
| Storage humidity[%] [%] | 10...100 |
| Other climatic conditions for storage according to stated class | 1K22/ DIN 60721-3-1 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| UL approval | power supply Class 2 File number UL E191684 |
|---|---|
| power supply | Class 2 |
| File number UL | E191684 |
Mechanical data
| Weight[g] [g] | 34.1 |
|---|---|
| Materials | housing: PA Halogen-free; Sealing: EPDM |
| Moulded-body material | PA, Halogen-free |
| Material nut | stainless steel (316L/1.4404) |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Moulded body: PA, Halogen-free; Locking: stainless steel (316L/1.4404); Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm |
|---|
Electrical connection - socket
| Connector | 2 x M12; coding: A; Moulded body: PA, Halogen-free; Locking: stainless steel (316L/1.4404); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
