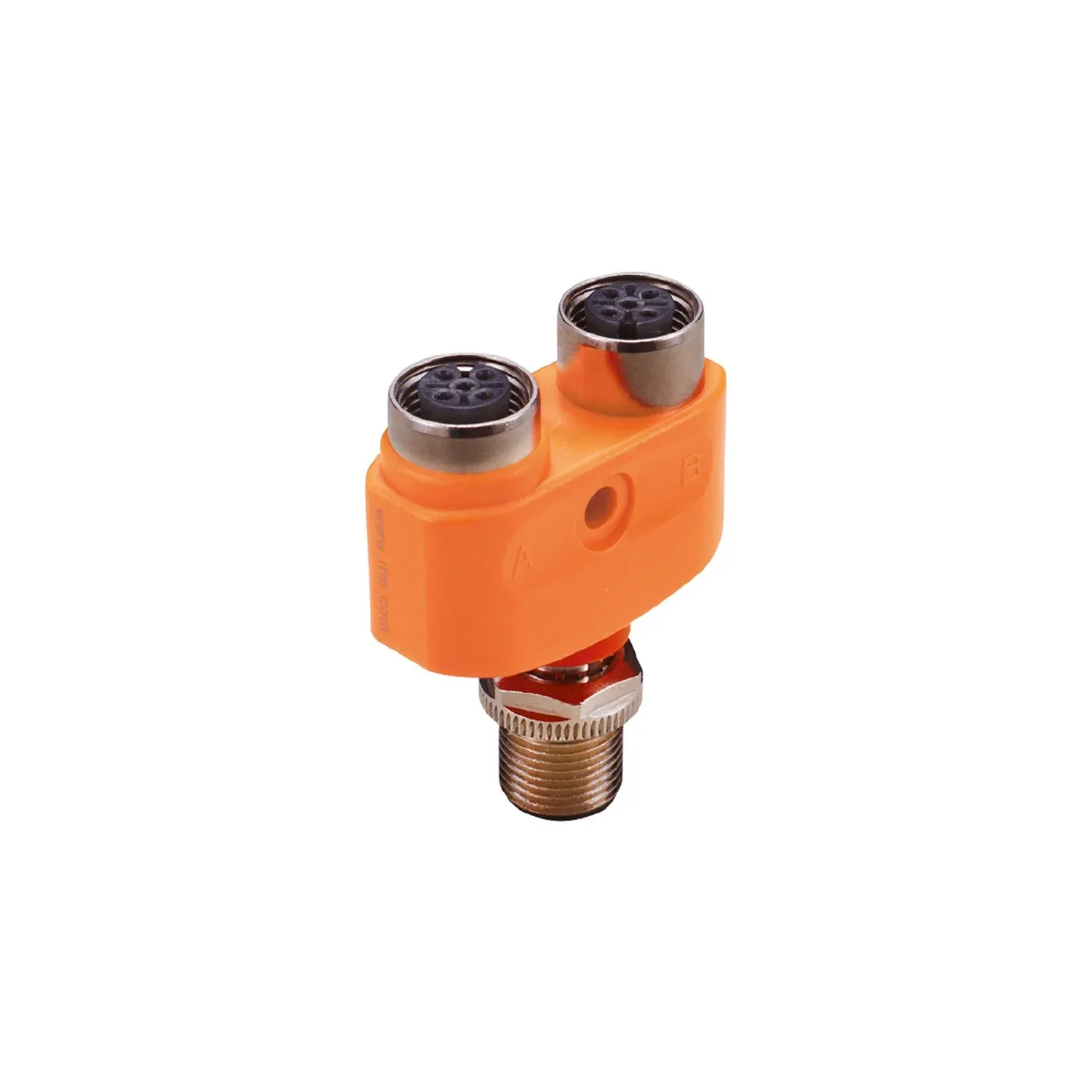

IFM EBC162
EBC162
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Visual and tactile marking of the ports
Resistant to oils and coolants
High protection rating for the requirements of harsh industrial environments
Mechanical end stop to protect the O-ring from destruction
Specification
Application
| Special feature | Free from silicone; Gold-plated contacts |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | < 250 AC / < 300 DC; (cULus: 30 AC / 42 DC) |
|---|---|
| Protection class | II |
| Max. current load per module/slot[A] [A] | 4 |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Note on ambient temperature | cULus: …65 °C |
| Storage temperature[°C] [°C] | -25...55 |
| Storage humidity[%] [%] | 10...100 |
| Other climatic conditions for storage according to stated class | 1K22/ DIN 60721-3-1 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Mechanical data
| Weight[g] [g] | 35.8 |
|---|---|
| Materials | housing: PA orange |
| Material nut | brass, nickel-plated |
| Sealing material | FKM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug C
| Connector | 1 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
Electrical connection - socket A/B
| Connector | 2 x M12; coding: A; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm |
|---|
