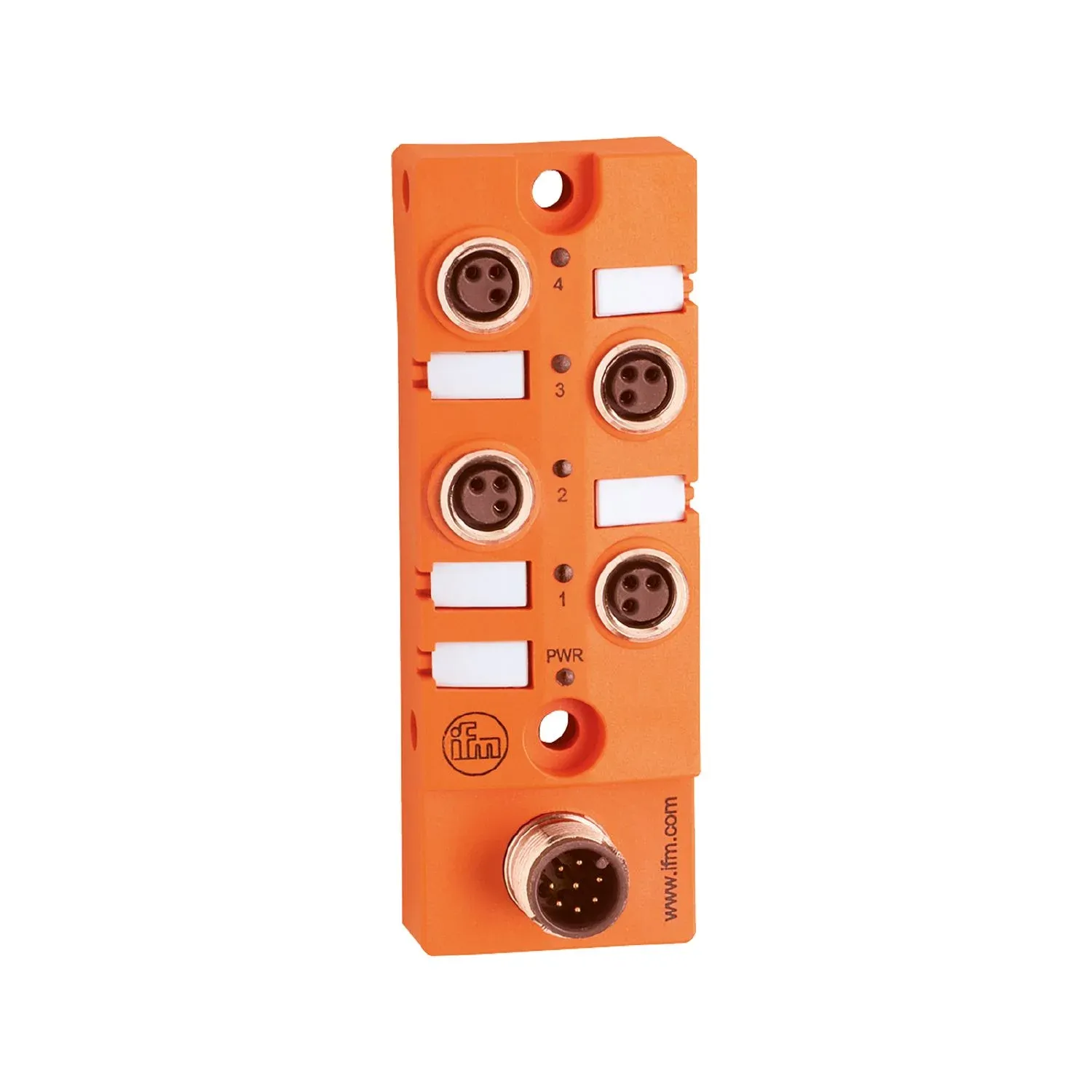

IFM EBC060
EBC060
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact housing for use where space is restricted
Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
Mechanical end stop to protect the O-ring from destruction
Clearly visible LEDs for indicating switching status and operation
Specification
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Protection class | III |
| Max. current load per module/slot[A] [A] | 2 |
| Max. current load total[A] [A] | 2 |
Outputs
| Electrical design | NPN |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -5...60 |
| Protection | IP 65; IP 67; IP 68; (1 m / 7 days) |
Mechanical data
| Weight[g] [g] | 88 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 85.4 x 30 x 23.7 |
| Materials | housing: PBT-GF20 |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 4 |
| Connector type | M8 |
Displays / operating elements
| Display | switching status 4 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 4 x LED, yellow |
| operation | 1 x LED, green |
Accessories
| Accessories (optional) | DIN rail adapter:, E73006 Protective cap: M8, E73005 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Connection
| Connector | 1 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
Electrical connection - slot
| Connector | 4 x M8; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated |
|---|
