IFM EBC045
EBC045
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

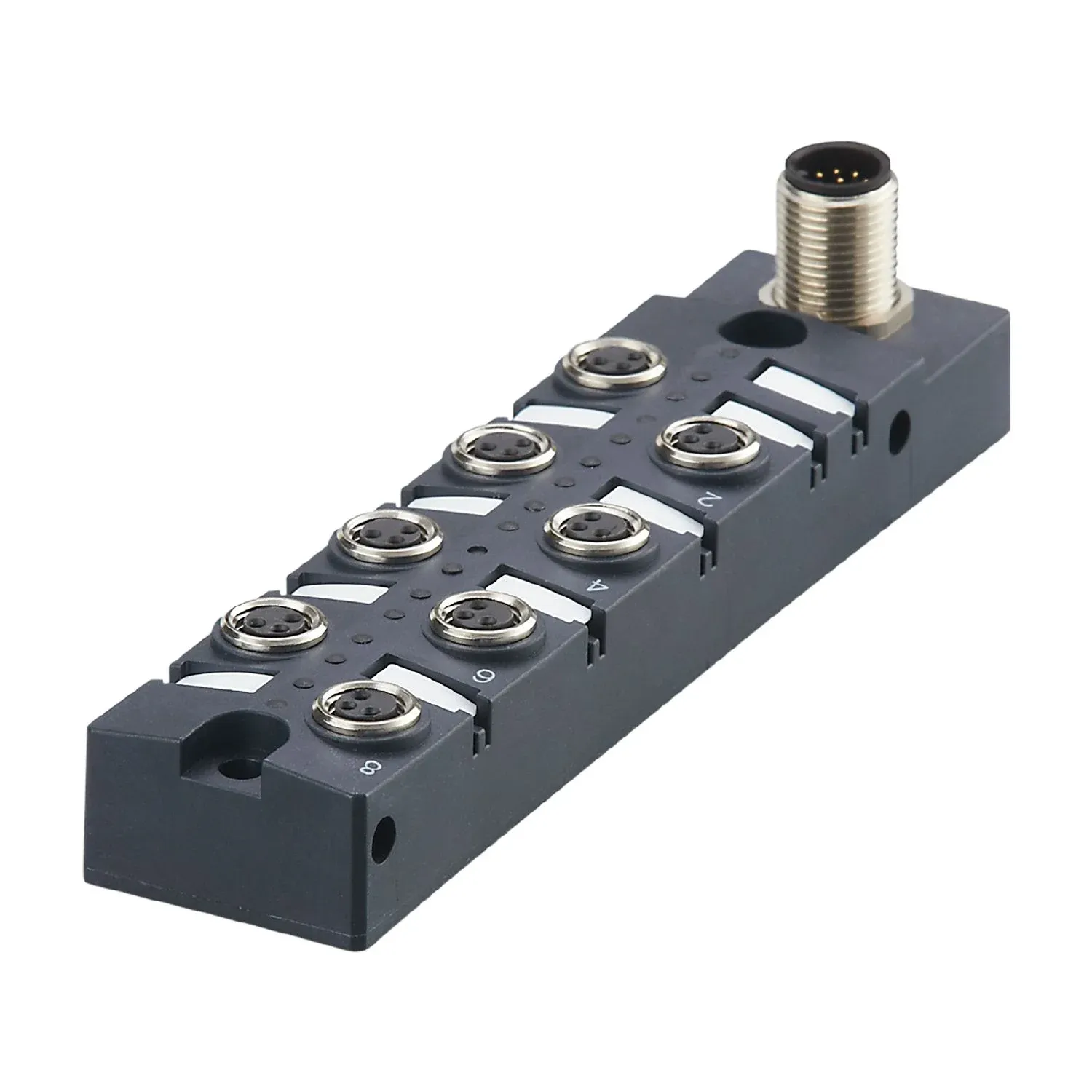

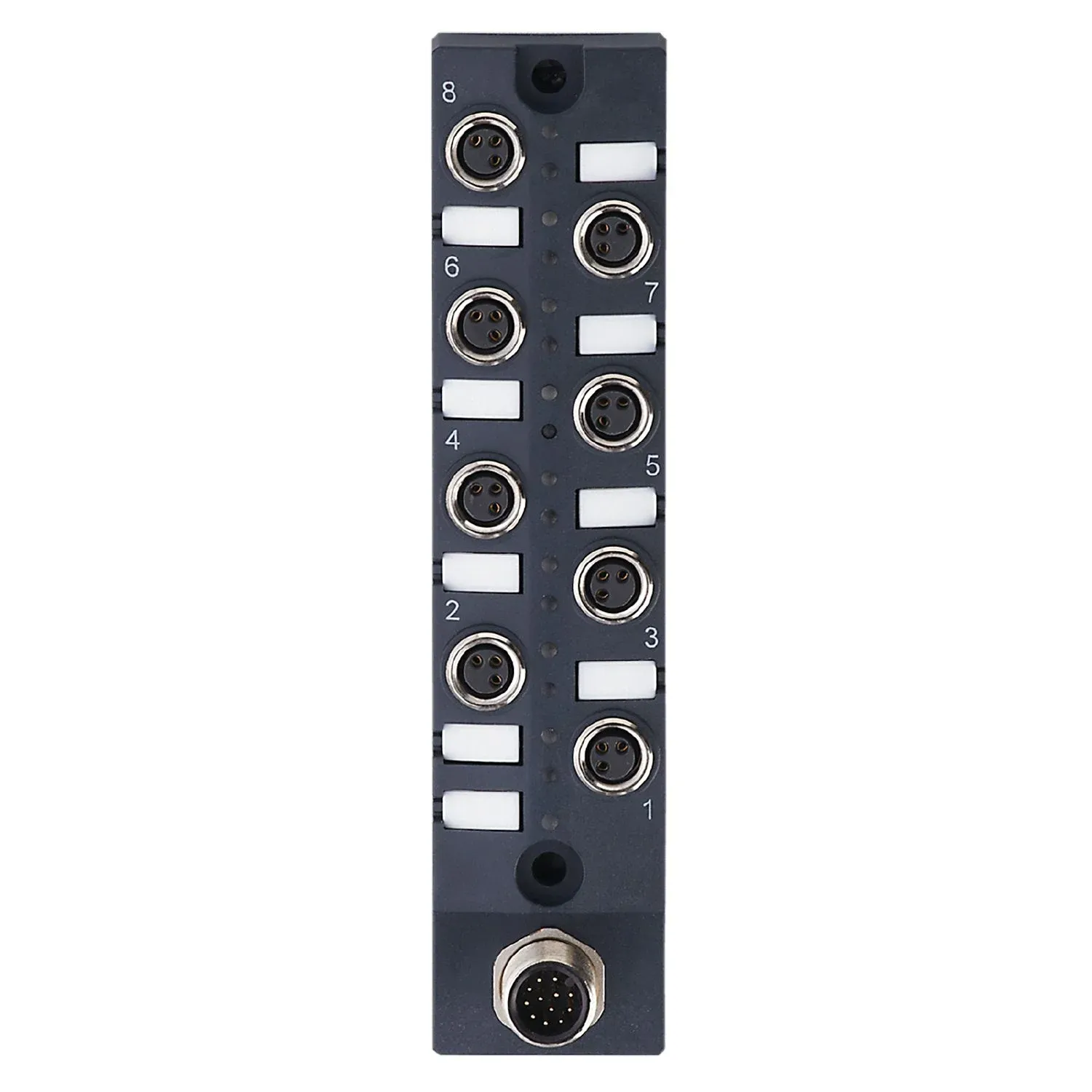

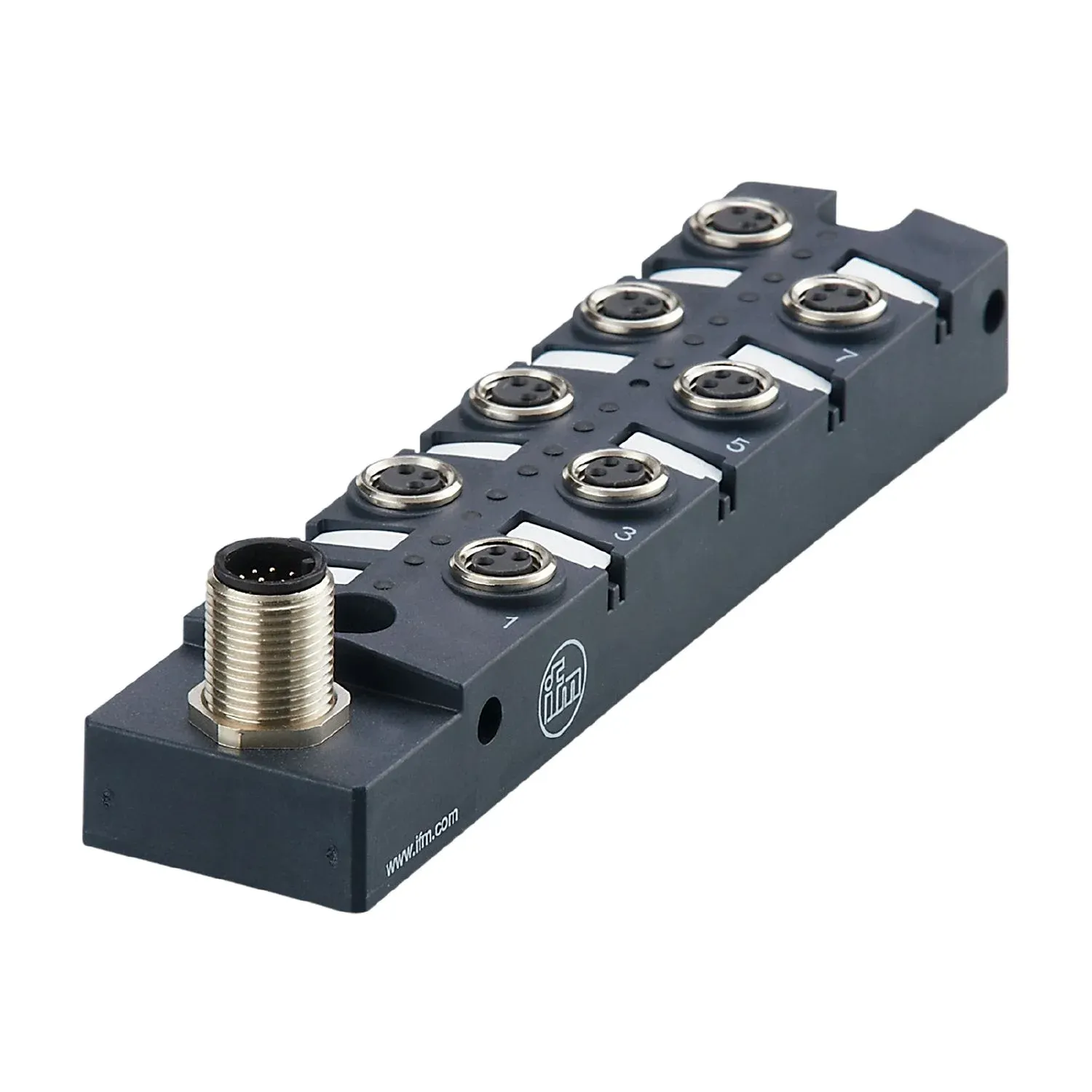

Compact housing for use where space is restricted
Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
Mechanical end stop to protect the O-ring from destruction
Clearly visible LEDs for indicating switching status and operation
Specification
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | 15...30 DC |
|---|---|
| Protection class | III |
| Max. current load per module/slot[A] [A] | 1 |
| Max. current load total[A] [A] | 1 |
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -5...60 |
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 125 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 129.5 x 30 x 28.8 |
| Materials | housing: PBT-GF20 |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 8 |
| Connector type | M8 |
Displays / operating elements
| Display | switching status 8 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 8 x LED, yellow |
| operation | 1 x LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Connection
| Connector | 1 x M12; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
|---|
Electrical connection - slot
| Connector | 8 x M8; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
|---|
