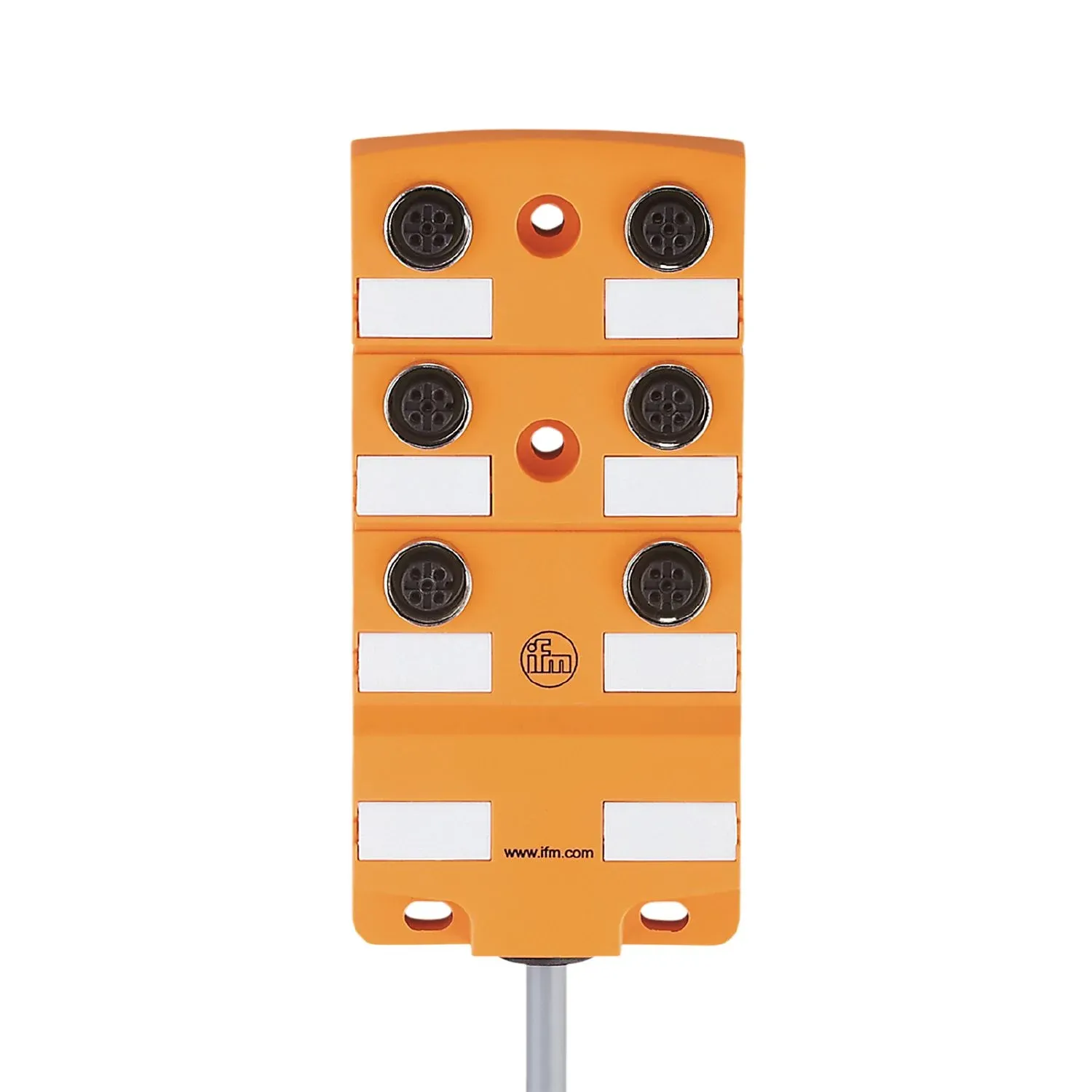

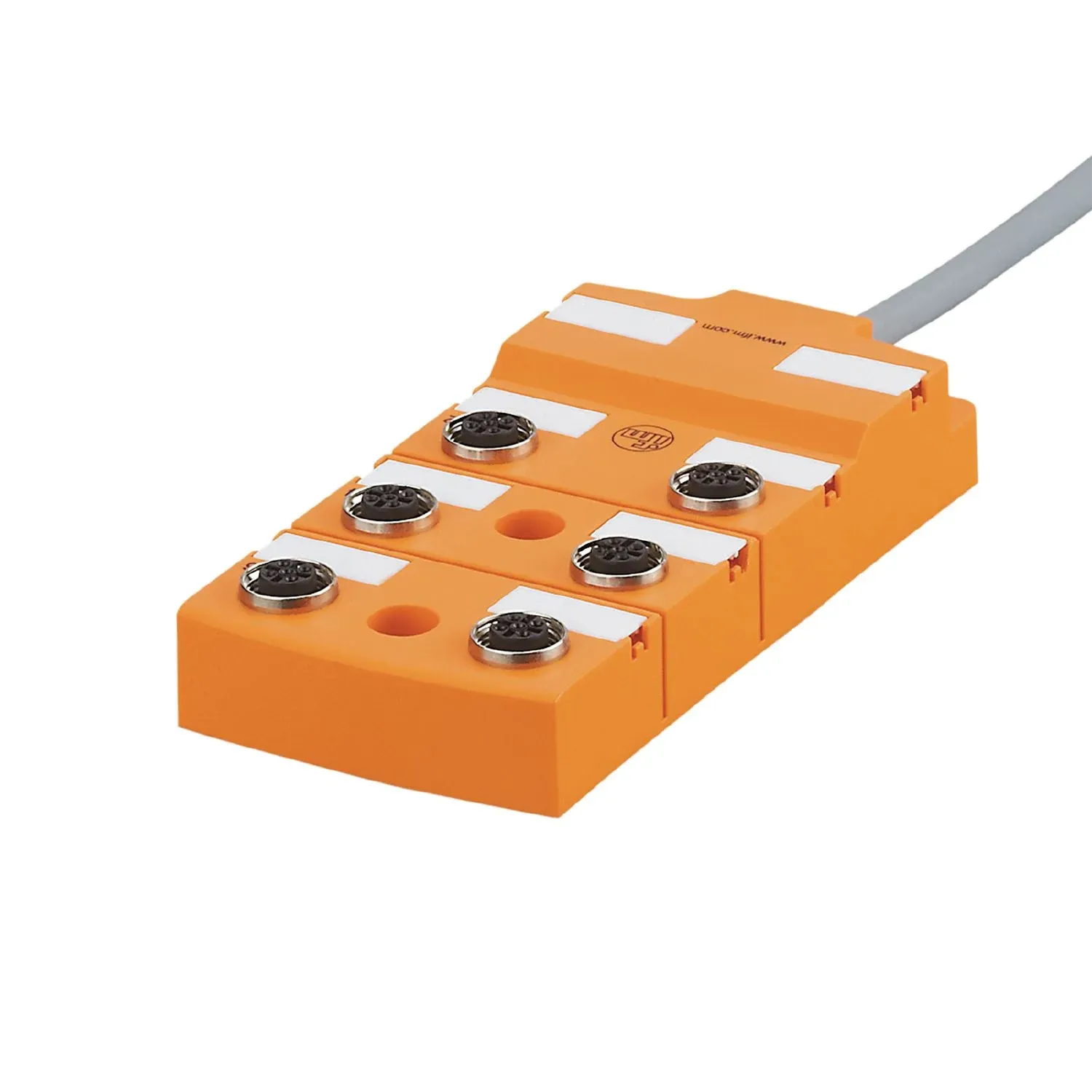

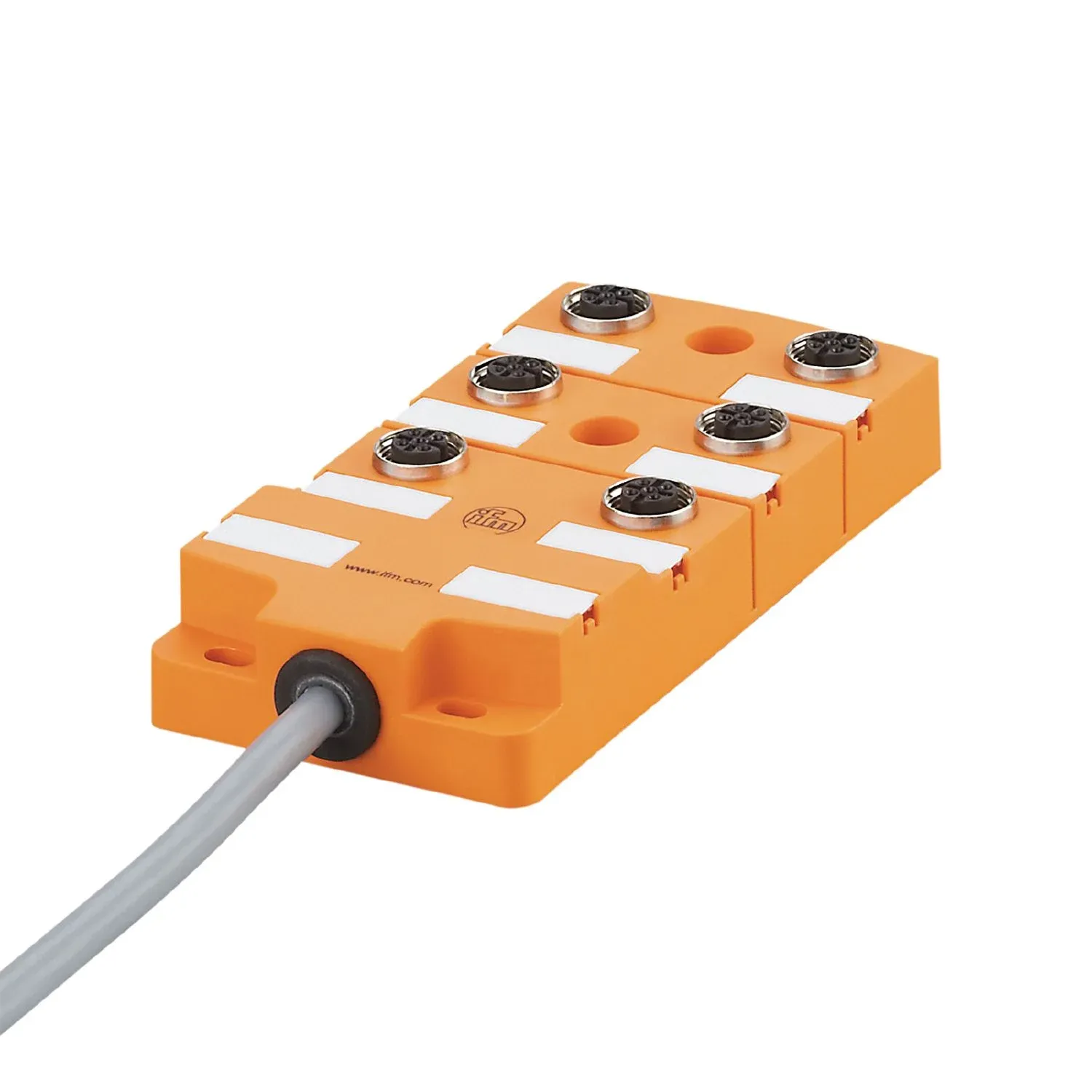

IFM EBC043
EBC043
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
Mechanical end stop to protect the O-ring from destruction
Robust housing for use in harsh industrial environments
Clearly visible LEDs for indicating switching status and operation
Specification
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | < 30 DC; ("supply class 2" to cULus) |
|---|---|
| Max. current load per module/slot[A] [A] | 4; (per pin: 2; per group: 8) |
| Max. current load total[A] [A] | 12 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...40 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -5...60 |
| Protection | IP 67 |
Tests / approvals
| UL approval | Enclosure type Type 1 |
|---|---|
| Enclosure type | Type 1 |
Mechanical data
| Weight[g] [g] | 880 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 125 x 60 x 22 |
| Materials | housing: PA |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 6 |
| Connector type | M12 |
Accessories
| Items supplied | labels: 6 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 10 m, PVC, black, Ø 6.3 mm; 5 x 0.5 mm² |
|---|
Electrical connection - slot
| Connector | 6 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
|---|
