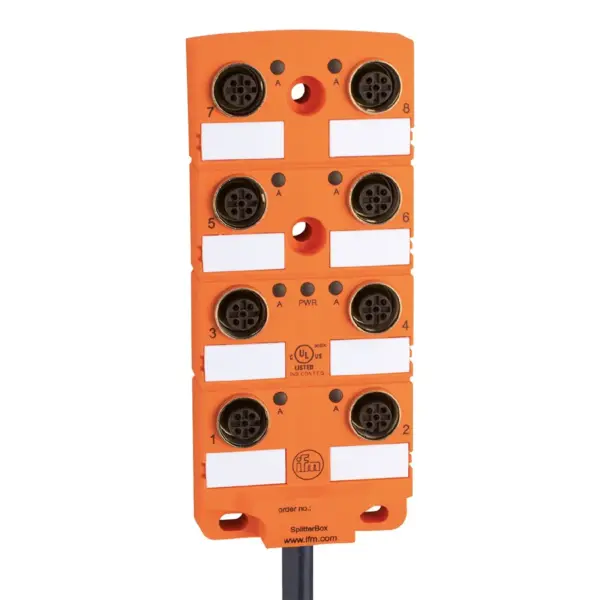

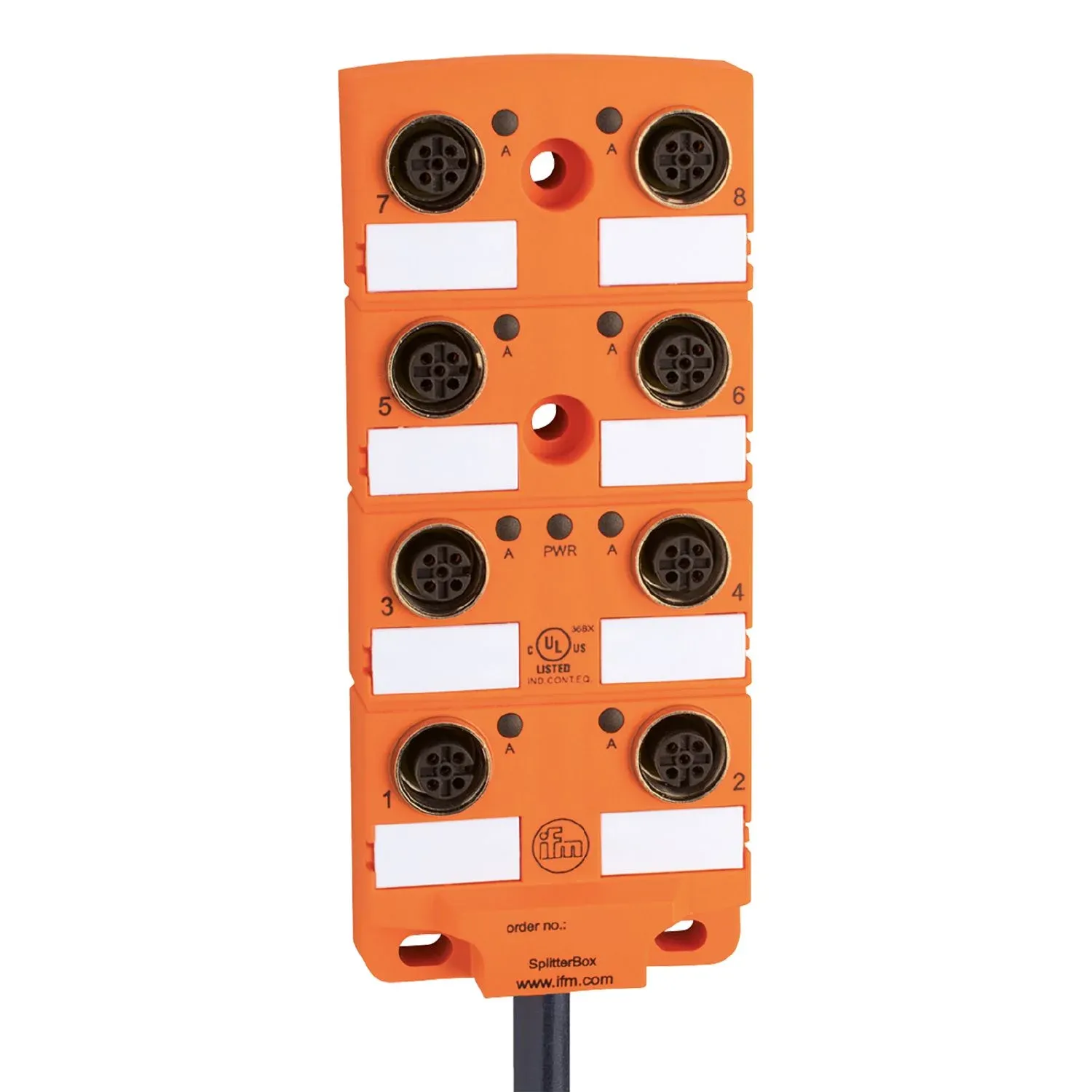

IFM EBC039
EBC039
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Resistant to oils and coolants
Permanent, reliable sealing even when mounted without tools
Mechanical end stop to protect the O-ring from destruction
Robust housing for use in harsh industrial environments
Clearly visible LEDs for indicating switching status and operation
Specification
Application
| Special feature | Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability |
|---|---|
| Free from silicone | yes |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Protection class | II |
| Max. current load per module/slot[A] [A] | 4 |
| Max. current load total[A] [A] | 12 |
Outputs
| Electrical design | PNP |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Ambient temperature (moving)[°C] [°C] | -5...60 |
| Protection | IP 67; IP 68 |
Mechanical data
| Weight[g] [g] | 2631.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 127 x 54 x 22 |
| Materials | housing: PA |
| Material nut | brass, nickel-plated |
| Number of ports splitter box | 8 |
| Connector type | M12 |
| Drag chain suitability | bending radius for flexible use min. 10 x cable diameter bending radius for fixed installation min. 5 x cable diameter travel speed max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s² torsional strain ± 30 °/m bending cycles > 2 Mio. |
| bending radius for flexible use | min. 10 x cable diameter |
| bending radius for fixed installation | min. 5 x cable diameter |
| travel speed | max. 3 m/s at 5 m horizontal travel length and max. acceleration of 5 m/s² |
| torsional strain | ± 30 °/m |
| bending cycles | > 2 Mio. |
Displays / operating elements
| Display | switching status 8 x LED, yellow operation 1 x LED, green |
|---|---|
| switching status | 8 x LED, yellow |
| operation | 1 x LED, green |
Accessories
| Items supplied | Protective caps: 2 labels: 8 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 25 m, PUR, Halogen-free, black, Ø 8.2 mm; 8 x 0.34 mm² (43 x Ø 0.1 mm ) + 3 x 0.75 mm² (95 x Ø 0.1 mm ) |
|---|
Electrical connection - slot
| Connector | 8 x M12; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.8...1.5 Nm |
|---|
