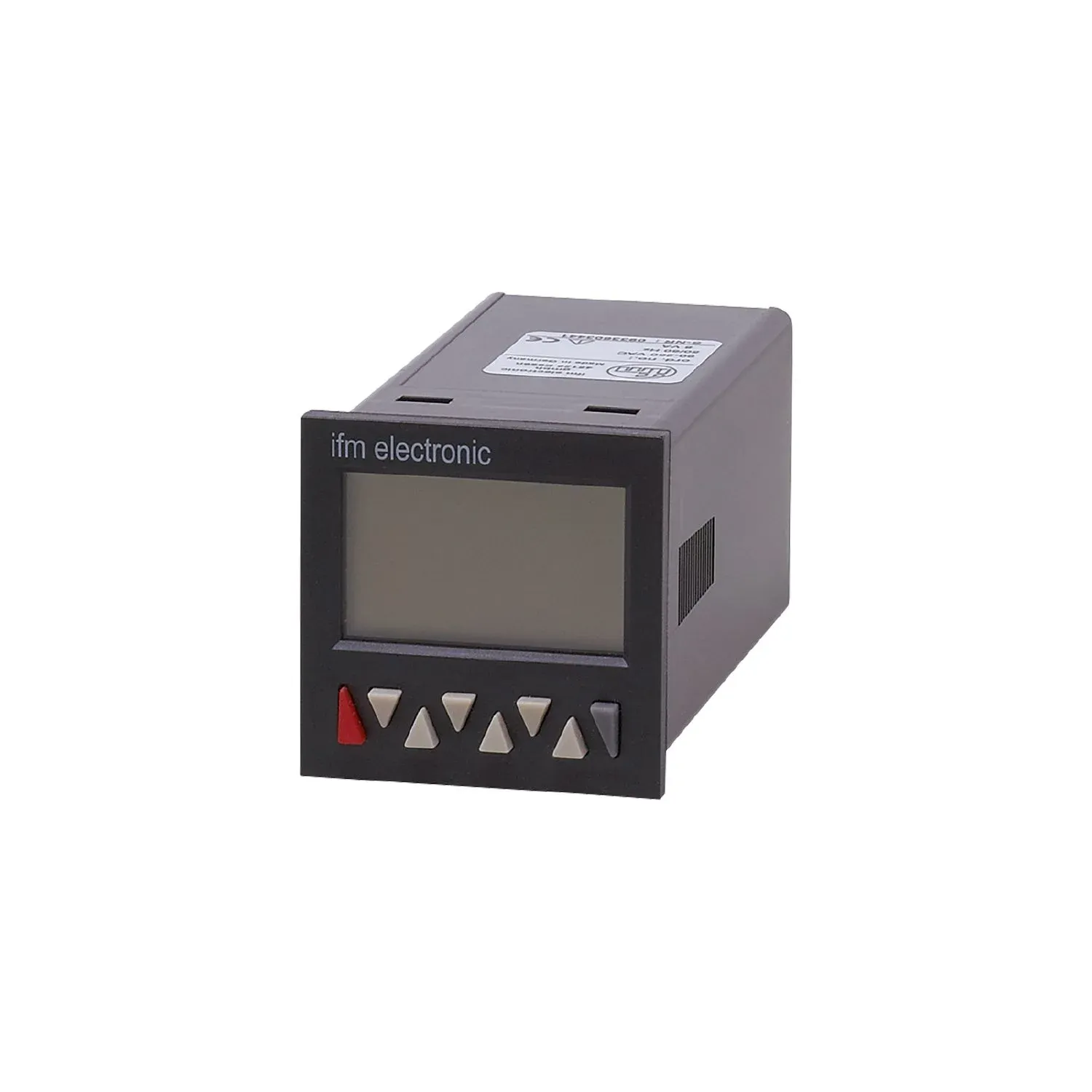

IFM E89005
E89005
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable monitoring of sensors with switching signals
Clearly visible 2-line LCD display
Easy setting of the parameters by means of pushbuttons on the front face
Use as counter for pulse, frequency, time, or operating hours
Two pulse inputs for adding and subtracting
Specification
Product characteristics
| Housing | rectangular |
|---|---|
| Dimensions[mm] [mm] | 48 x 48 x 107 |
Application
| Application | preset counter with 2 presets |
|---|
Electrical data
| Nominal voltage AC[V] [V] | 90...260 |
|---|---|
| Nominal frequency AC[Hz] [Hz] | 50...60 |
| Auxiliary energy for sensors DC[V] [V] | 24; (±15 %, 80 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of relay outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|
Outputs
| Number of relay outputs | 2 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...65 |
|---|---|
| Storage temperature[°C] [°C] | -25...75 |
| Max. relative air humidity[%] [%] | 93 |
| Protection | IP 65; (on the front) |
| Protection rating terminals | IP 00 |
Tests / approvals
| EMC | EN 55011 class B EN 61000-6-2 (with shielded control and signal cables) |
|---|---|
| EN 55011 | class B |
| EN 61000-6-2 | (with shielded control and signal cables) |
| Shock resistance | EN 60068-2-27 100 g XYZ |
| EN 60068-2-27 | 100 g XYZ |
| Vibration resistance | EN 60068-2-6 10...55 Hz / (1 mm / XYZ) |
| EN 60068-2-6 | 10...55 Hz / (1 mm / XYZ) |
Mechanical data
| Weight[g] [g] | 214.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | installation in panels or panel cutouts; (panel cutout: 45 x 45 mm) |
| Dimensions[mm] [mm] | 48 x 48 x 107 |
| Materials | housing: PC black |
Displays / operating elements
| Display | 2 x 7-segment LCD display, green backlit 6-digit |
|---|---|
| Operating elements | 8 pushbuttons |
| 8 | pushbuttons |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| plug-in screw terminals | 7 x ...2.5 mm² |
|---|
