Description

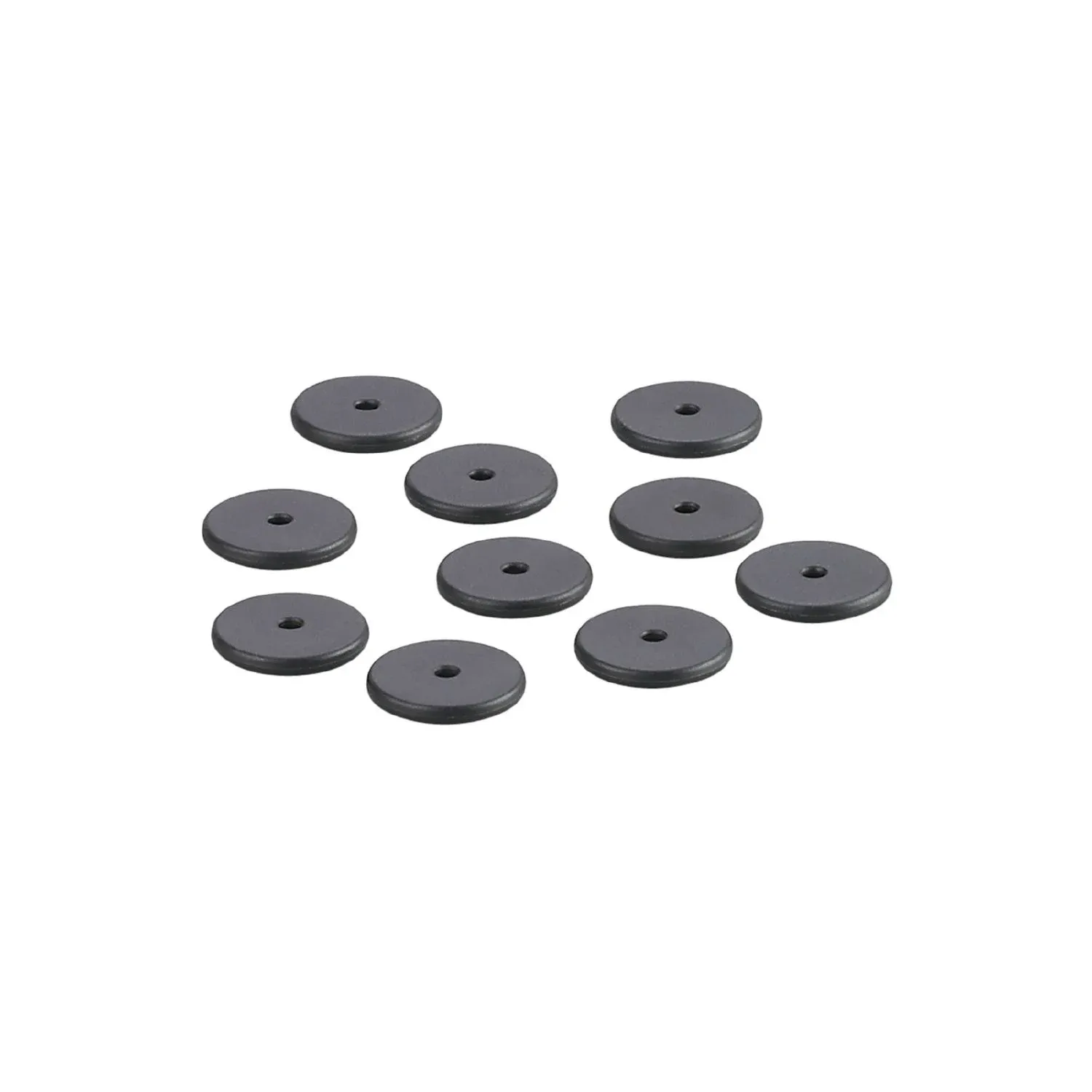

RFID tag 13.56 MHz – ISO15693
Reliable coding of workpiece carriers and products
Specification
Application
| Operating temperature (active)[°C] [°C] | -25...90 |
|---|---|
| Peak temperature (passive)[°C] [°C] | 120 |
Electrical data
| Operating frequency[MHz] [MHz] | 13,56 |
|---|---|
| Memory size[bit] [bit] | 896 |
| Memory type | EEPROM |
| Chip type | ICODE SLIX |
| Number of blocks | 28 |
| Block size[Byte] [Byte] | 4 |
| Unique Identification Number (UID)[Byte] [Byte] | 8 |
| RFID standard | ISO 15693 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...90 |
|---|---|
| Storage temperature[°C] [°C] | -25...120 |
| Protection | IP 68 |
Tests / approvals
| Shock resistance | DIN IEC 68-2-27 40 g 18 ms |
|---|---|
| DIN IEC 68-2-27 | 40 g 18 ms |
| Vibration resistance | DIN IEC 68-2-6 10 g 10...2000 Hz |
| DIN IEC 68-2-6 | 10 g 10...2000 Hz |
| Radio approval | ISO 15693 |
Mechanical data
| Weight[g] [g] | 18.65 |
|---|---|
| Type of mounting | Installation on metal and non-metal materials; (screw fastening ; sticking to a surface ; In case of installation on metal, mount marked side on surface (marking: B or dot)) |
| Dimensions[mm] [mm] | Ø 22 / L = 3 |
| Materials | PA 9T |
Remarks
| Pack quantity | 10 pcs. |
|---|
