IFM E80400
E80400
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

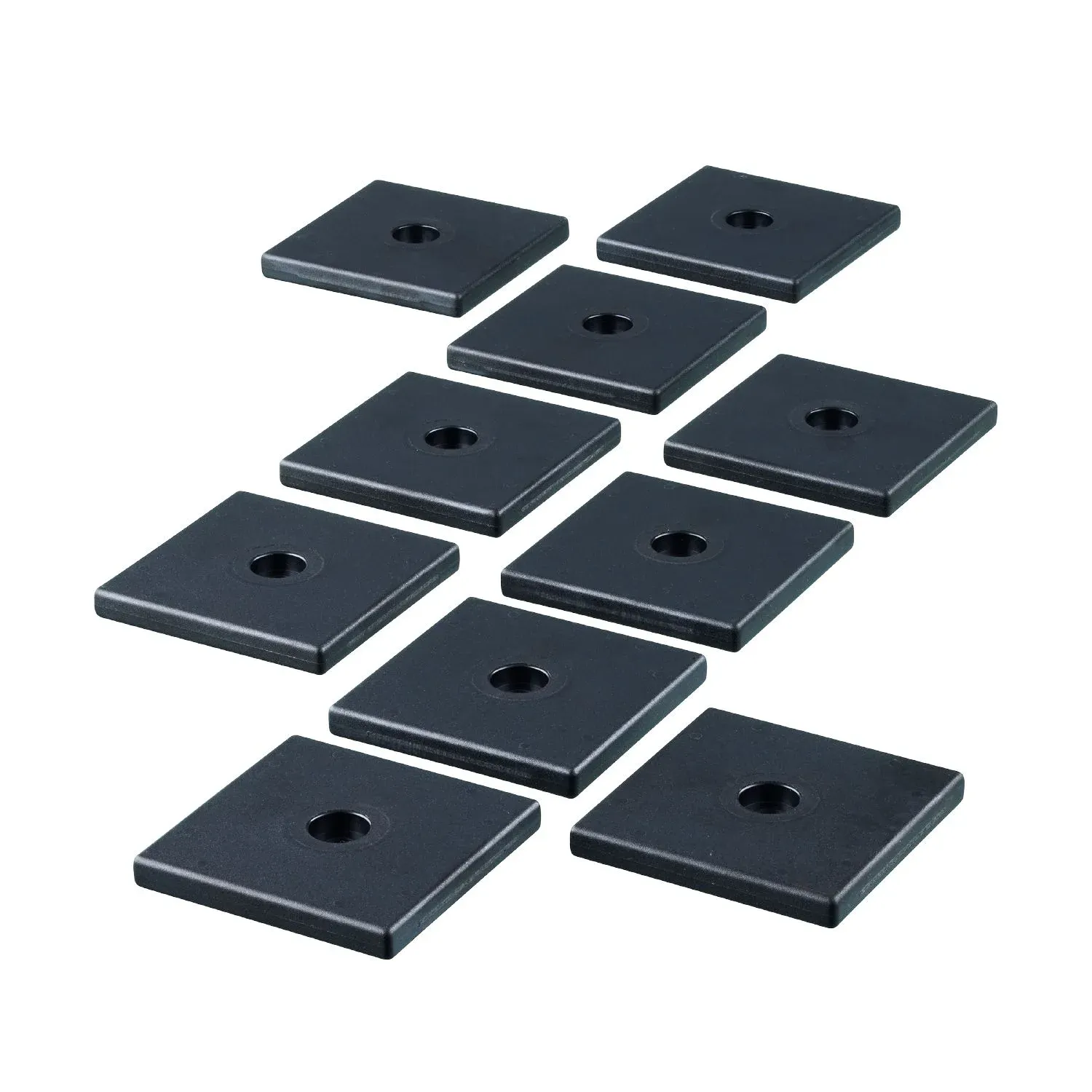

RFID tag 13.56 MHz – ISO15693
Reliable coding of workpiece carriers and products
Suitable for use in increased temperature range
Specification
Application
| Application | coding of workpiece carriers in routing conveyors |
|---|---|
| Operating temperature (active)[°C] [°C] | -55...240 |
Electrical data
| Operating frequency[MHz] [MHz] | 13,56 |
|---|---|
| Memory size[bit] [bit] | 896 |
| Memory type | EEPROM |
| Chip type | ICODE SLIX |
| Number of blocks | 28 |
| Block size[Byte] [Byte] | 4 |
| Unique Identification Number (UID)[Byte] [Byte] | 8 |
| RFID standard | ISO 15693 |
Operating conditions
| Ambient temperature[°C] [°C] | -55...240 |
|---|---|
| Note on ambient temperature | 1,5 h 185 °C 1 h 200 °C 0,75 h 220 °C 0,5 h 240 °C maximum dwell time at maximum ambient temperature |
| Protection | IP 68 |
Tests / approvals
| Shock resistance | EN 60068-2-29 40 g 18 ms |
|---|---|
| EN 60068-2-29 | 40 g 18 ms |
| Vibration resistance | EN 60068-2-6 10 g 10...2000 Hz |
| EN 60068-2-6 | 10 g 10...2000 Hz |
| Radio approval | ISO 15693 |
Mechanical data
| Weight[g] [g] | 297.85 |
|---|---|
| Type of mounting | Installation on metal and non-metal materials; (screw fastening: spacer E80401; sticking to a surface) |
| Dimensions[mm] [mm] | 51 x 6.5 x 51 |
| Materials | PPS |
Remarks
| Pack quantity | 10 pcs. |
|---|
