Description

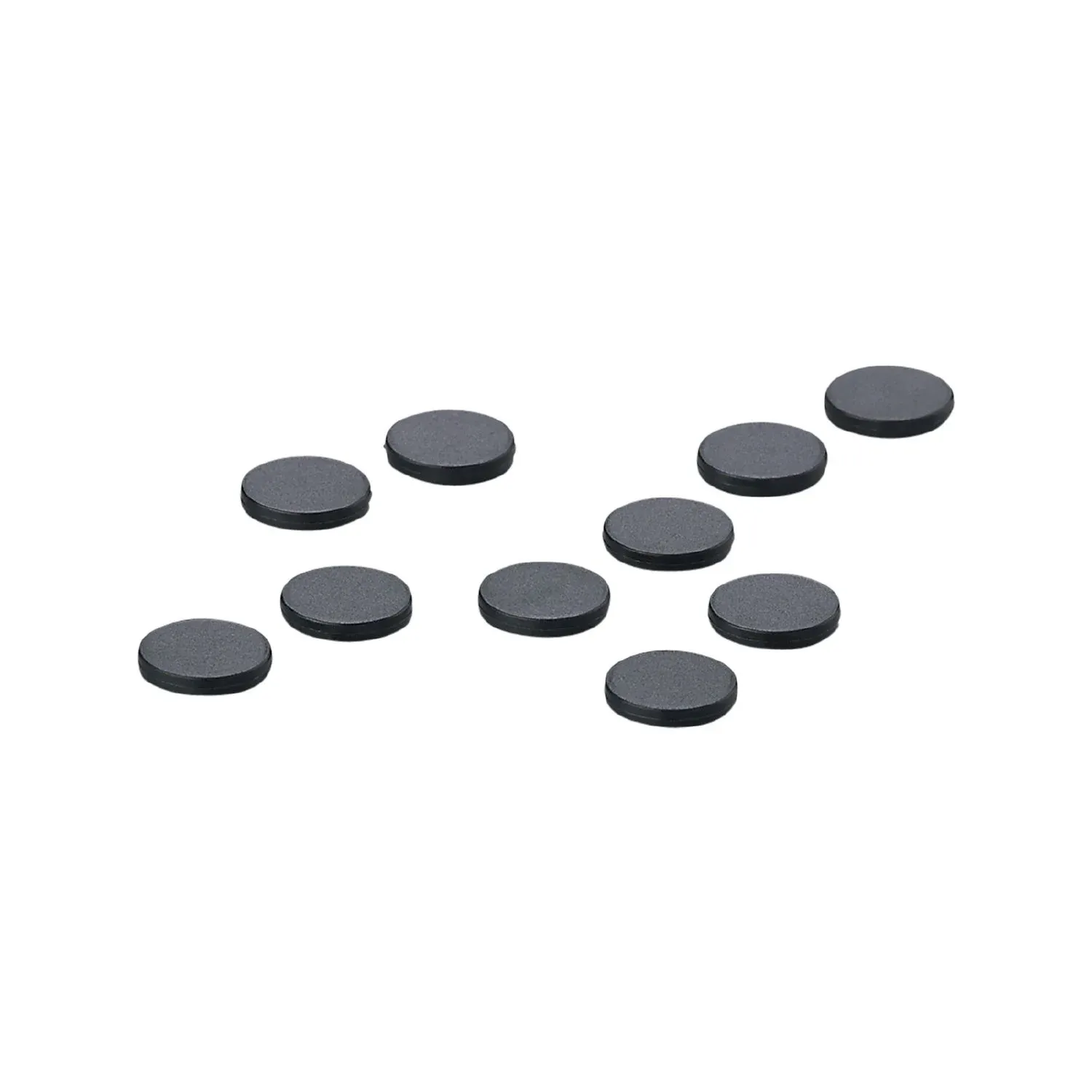

RFID tag 13.56 MHz – ISO15693
Reliable coding of workpiece carriers and products
Small compact tags for installation on metal and non-metal materials
Specification
Application
| Operating temperature (active)[°C] [°C] | -40...90 |
|---|---|
| Peak temperature (passive)[°C] [°C] | 90 |
Electrical data
| Operating frequency[MHz] [MHz] | 13,56 |
|---|---|
| Memory size[bit] [bit] | 896 |
| Memory type | EEPROM |
| Chip type | Vigo |
| Number of blocks | 32 |
| Block size[Byte] [Byte] | 4 |
| Unique Identification Number (UID)[Byte] [Byte] | 8 |
| RFID standard | ISO 15693 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...90 |
|---|---|
| Storage temperature[°C] [°C] | -40...90 |
| Protection | IP 68 |
Tests / approvals
| Shock resistance | DIN IEC 68-2-27 40 g 18 ms |
|---|---|
| DIN IEC 68-2-27 | 40 g 18 ms |
| Vibration resistance | DIN IEC 68-2-6 10 g 10...2000 Hz |
| DIN IEC 68-2-6 | 10 g 10...2000 Hz |
| Radio approval | ISO 15693 |
Mechanical data
| Weight[g] [g] | 5.5 |
|---|---|
| Type of mounting | Installation on metal and non-metal materials; (sticking to a surface ; In case of installation on metal mount the grey side on the surface) |
| Dimensions[mm] [mm] | Ø 12.3 / L = 2.1 |
| Materials | PPS black; epoxy resin potted |
Remarks
| Pack quantity | 10 pcs. |
|---|
