IFM E80384
E80384
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

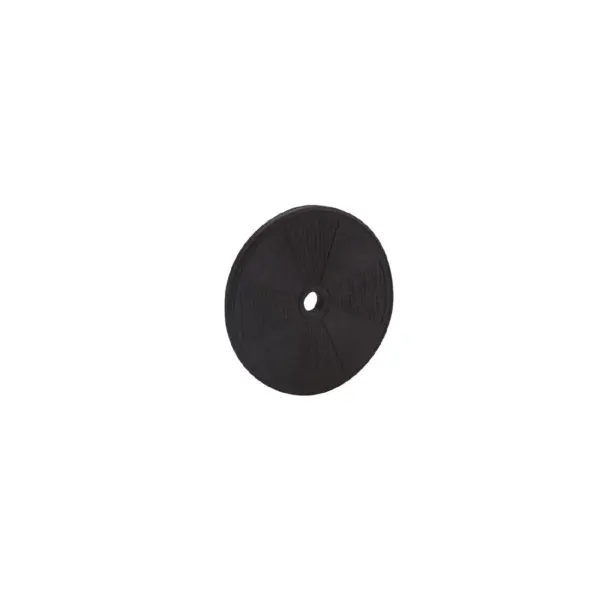

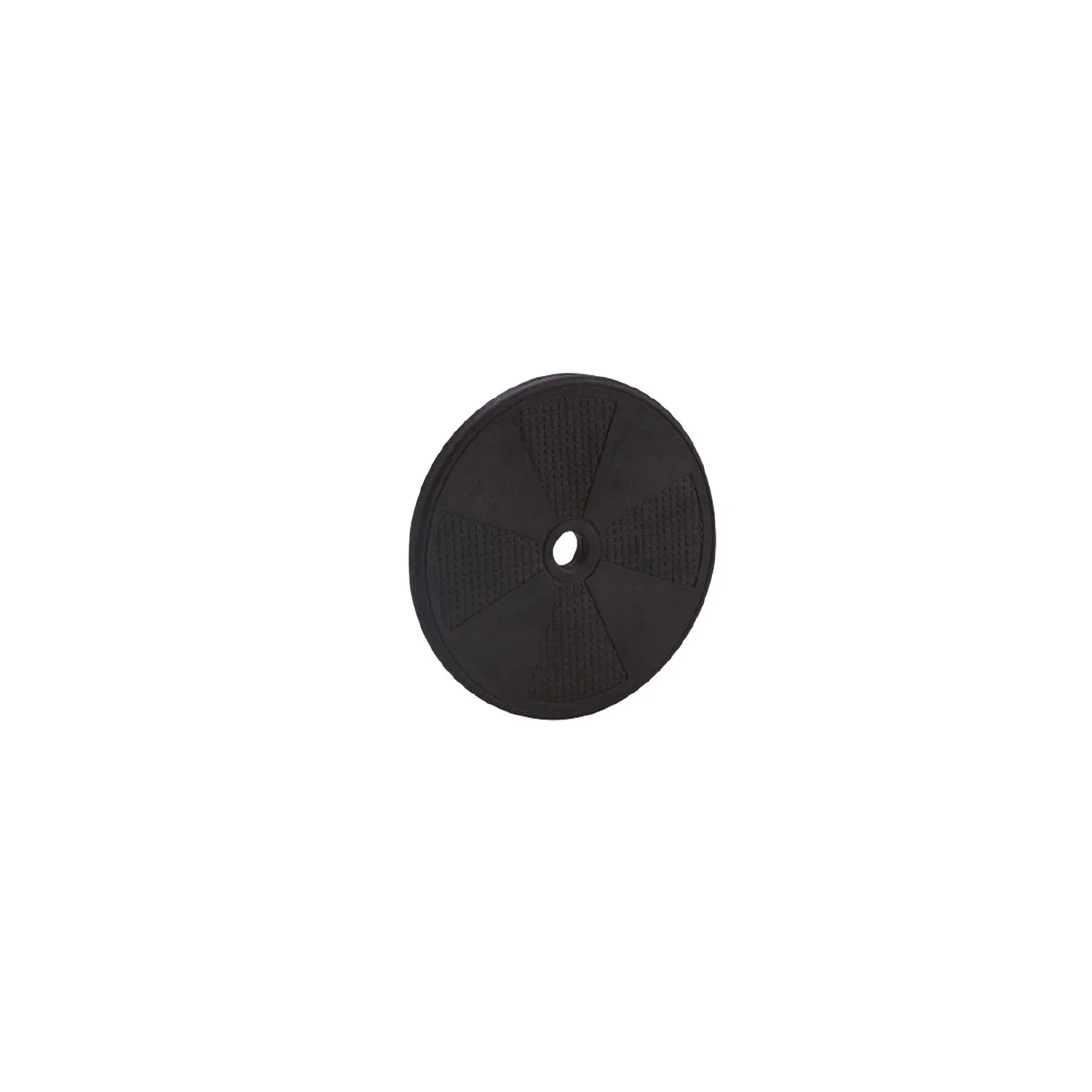

RFID tag 13.56 MHz – ISO15693
Reliable coding of workpiece carriers and products
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Operating temperature (active)[°C] [°C] | -40...85 |
|---|---|
| Peak temperature (passive)[°C] [°C] | 90 |
Electrical data
| Operating frequency[MHz] [MHz] | 13,56 |
|---|---|
| Memory size[bit] [bit] | 1024 |
| Memory type | EEPROM |
| Chip type | ICODE SLIX |
| Number of blocks | 28 |
| Block size[Byte] [Byte] | 4 |
| Unique Identification Number (UID)[Byte] [Byte] | 8 |
| RFID standard | ISO 15693 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...90 |
| Protection | IP 68; IP 69K |
Tests / approvals
| Shock resistance | DIN IEC 68-2-27 40 g 18 ms |
|---|---|
| DIN IEC 68-2-27 | 40 g 18 ms |
| Vibration resistance | DIN IEC 68-2-6 10 g 10...2000 Hz |
| DIN IEC 68-2-6 | 10 g 10...2000 Hz |
| Radio approval | ISO 15693 |
Mechanical data
| Weight[g] [g] | 11.55 |
|---|---|
| Type of mounting | installation on non-metal materials; (screw fastening ; sticking to a surface) |
| Dimensions[mm] [mm] | Ø 50 / L = 3 |
| Materials | PPA black |
Remarks
| Pack quantity | 1 pcs. |
|---|
