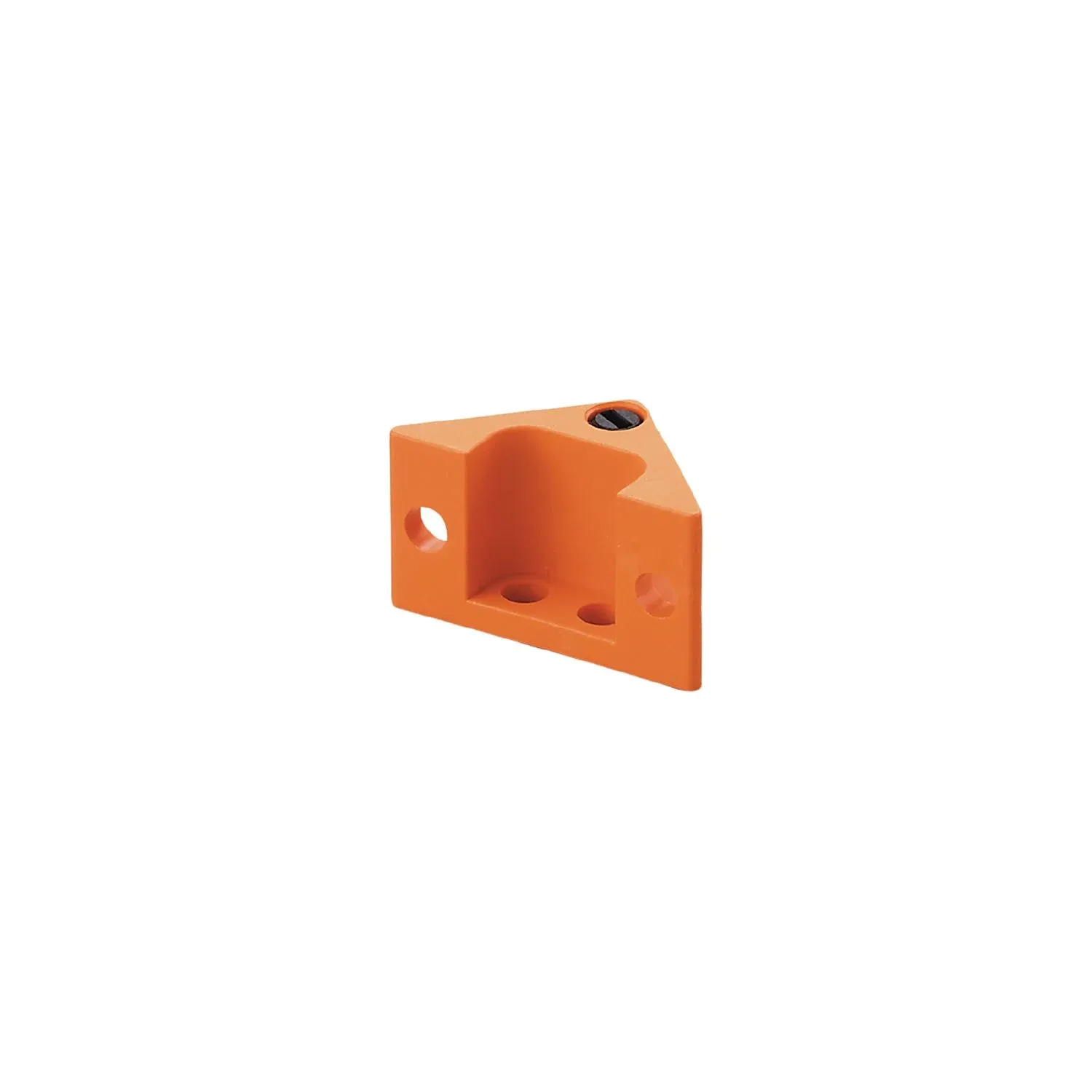

IFM E80346
E80346
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For reliably coding workpiece carriers in routing conveyors
Easy, quick and secure mounting
High shock and vibration resistance
Large operating temperature range and high protection rating
Very high number of read and write cycles
Specification
Application
| Application | coding of workpiece carriers in routing conveyors |
|---|---|
| Operating temperature (active)[°C] [°C] | -25...85 |
| Peak temperature (passive)[°C] [°C] | 120; (duration of test: 1 x 100 h) |
Electrical data
| Operating frequency[MHz] [MHz] | 0,125 |
|---|---|
| Memory size[bit] [bit] | 2048 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...90 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance | DIN IEC 68-2-29 30 g 18 ms |
|---|---|
| DIN IEC 68-2-29 | 30 g 18 ms |
| Vibration resistance | DIN IEC 68-2-6 6 g 14...200 Hz |
| DIN IEC 68-2-6 | 6 g 14...200 Hz |
Mechanical data
| Weight[g] [g] | 10.1 |
|---|---|
| Housing | tag fixture for workpiece carriers |
| Dimensions[mm] [mm] | 18 x 33 x 16.9 |
| Materials | PBT orange; PA black |
Accessories
| Items supplied | ID tag:, E80345 |
|---|
Remarks
| Remarks | peak temperature 1 x 100 h Storage temperature 1 x 1000 h shock 3 Achsen je 1084 Schocks vibration 3 Achsen je 8 h |
|---|---|
| Pack quantity | 1 pcs. |
