Description

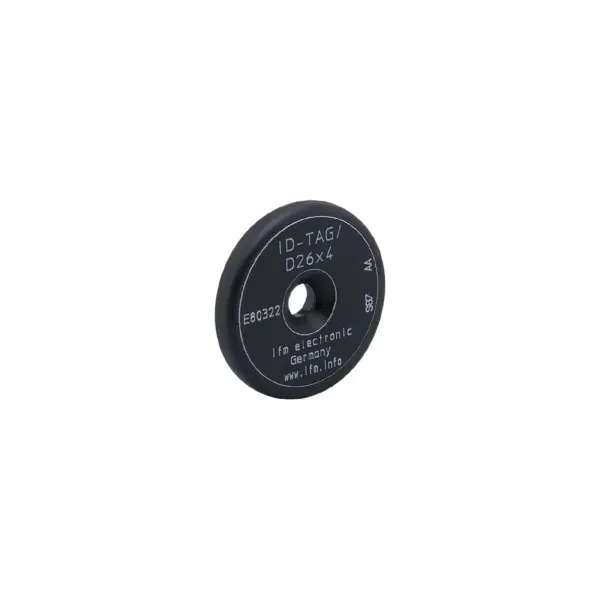

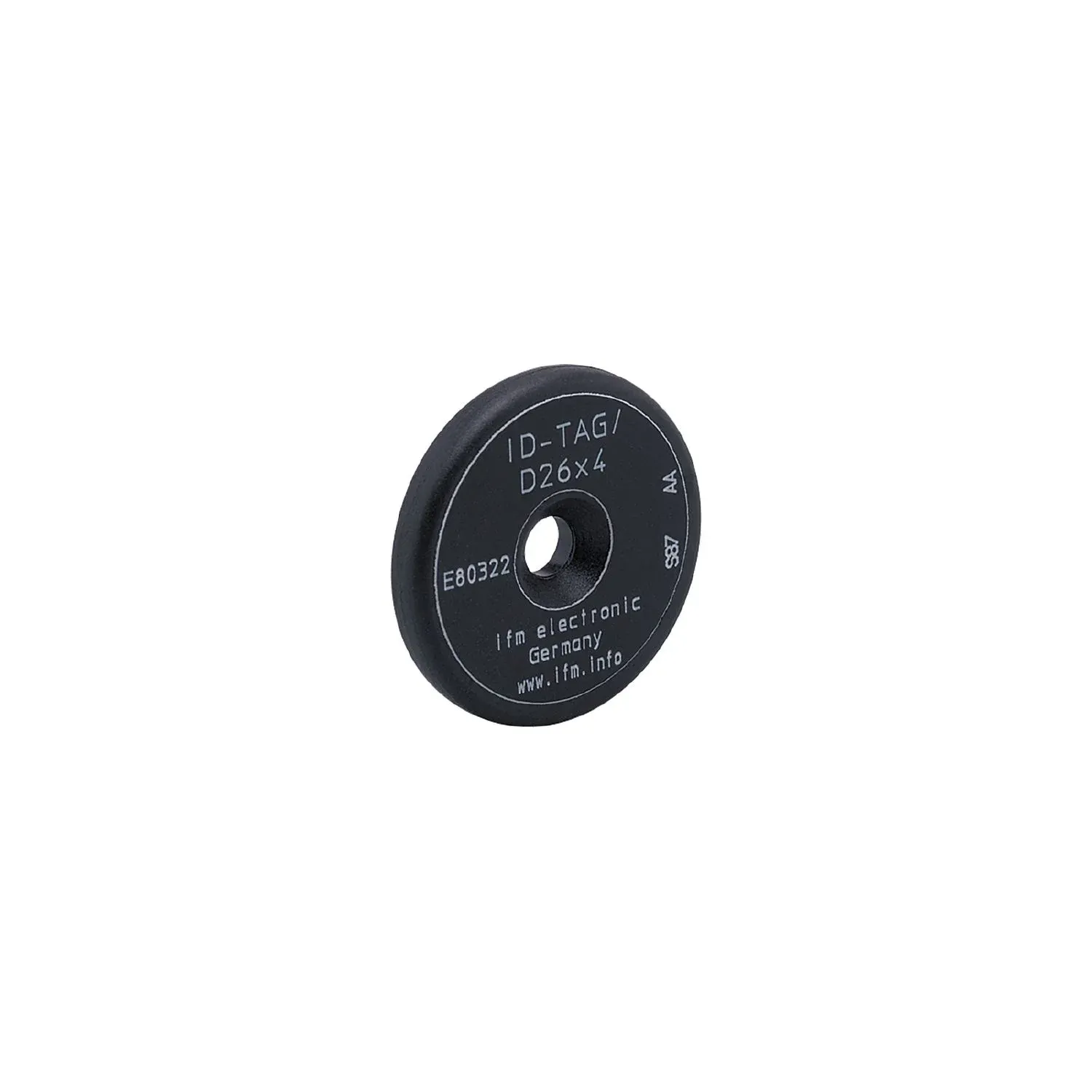

RFID tag 125 kHz – Q5
Reliable coding of workpiece carriers
Suitable for use in increased temperature range
Specification
Application
| Application | coding of workpiece carriers in routing conveyors |
|---|---|
| Operating temperature (active)[°C] [°C] | -25...85 |
| Peak temperature (passive)[°C] [°C] | 200; (duration of test: 160 °C: 500 x 20 min, 200 °C: 10 x 20 min) |
Electrical data
| Operating frequency[MHz] [MHz] | 0,125 |
|---|---|
| Memory size[bit] [bit] | 224 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Storage temperature[°C] [°C] | -25...140 |
| Protection | IP 68 |
Tests / approvals
| Shock resistance | DIN IEC 68-2-29 40 g 18 ms |
|---|---|
| DIN IEC 68-2-29 | 40 g 18 ms |
| Vibration resistance | DIN IEC 68-2-6 10 g 10...2000 Hz |
| DIN IEC 68-2-6 | 10 g 10...2000 Hz |
| MTTF[years] [years] | 2854 |
Mechanical data
| Weight[g] [g] | 4.9 |
|---|---|
| Dimensions[mm] [mm] | Ø 26 / L = 4 |
| Materials | PA High Temperature |
Remarks
| Remarks | shock 6 Achsen je 2000 Schocks vibration 3 Achsen je 2,5 h Storage temperature 1 x 100 h (160°C), 1 x 2 h (180°C), 10 x 30 min (20°C), 10 x 10 min (200°C) peak temperature 500 Zyklen 5 min (160 °C), 20 s (ΔT), 5 min (20 °C), 20 s (ΔT) 10 Zyklen 10 min (200 °C), 20 s (ΔT), 1 h (20 °C), 20 s (ΔT) |
|---|---|
| Pack quantity | 1 pcs. |
