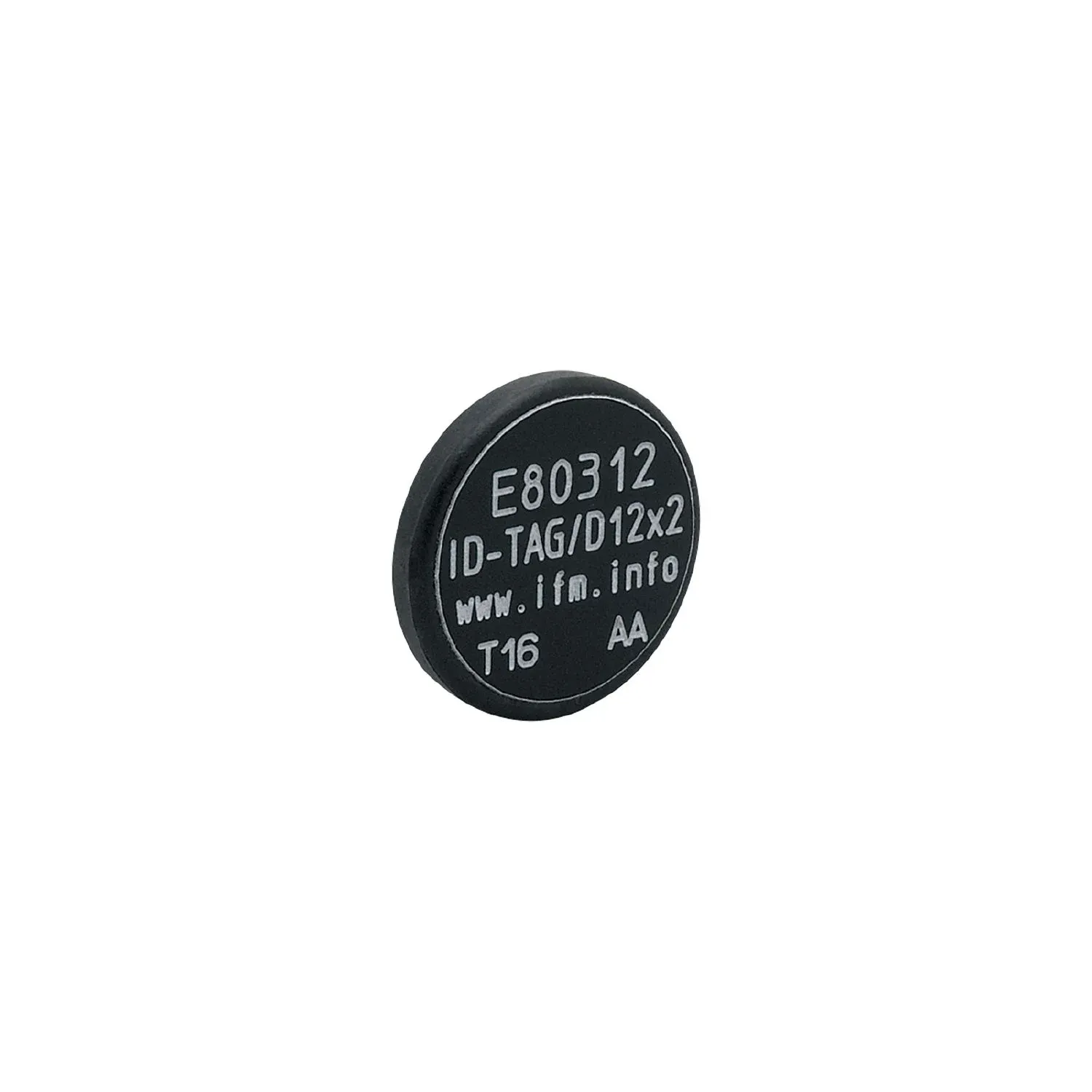

IFM E80312
E80312
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
RFID tag 125 kHz – Q5
Reliable coding of workpiece carriers
Suitable for installation with plastic and metal carriers
Specification
Application
| Application | coding of workpiece carriers in routing conveyors |
|---|---|
| Operating temperature (active)[°C] [°C] | -25...85 |
| Peak temperature (passive)[°C] [°C] | 160; (duration of test: 1 x 35 h) |
Electrical data
| Operating frequency[MHz] [MHz] | 0,125 |
|---|---|
| Memory size[bit] [bit] | 224 |
| Max. read cycles | unlimited |
| Max. write cycles | 100000 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...130 |
| Protection | IP 67 |
Tests / approvals
| Shock resistance | DIN IEC 68-2-27 40 g 18 ms |
|---|---|
| DIN IEC 68-2-27 | 40 g 18 ms |
| Vibration resistance | DIN IEC 68-2-6 10 g 10...2000 Hz |
| DIN IEC 68-2-6 | 10 g 10...2000 Hz |
| MTTF[years] [years] | 2854 |
Mechanical data
| Weight[g] [g] | 2.05 |
|---|---|
| Dimensions[mm] [mm] | Ø 12 / L = 2 |
| Materials | PPS black |
Remarks
| Remarks | peak temperature 1 x 35 h Storage temperature 1 x 1000 h shock 6 Achsen je 2000 Schocks vibration 3 Achsen je 2,5 h |
|---|---|
| Pack quantity | 1 pcs. |
