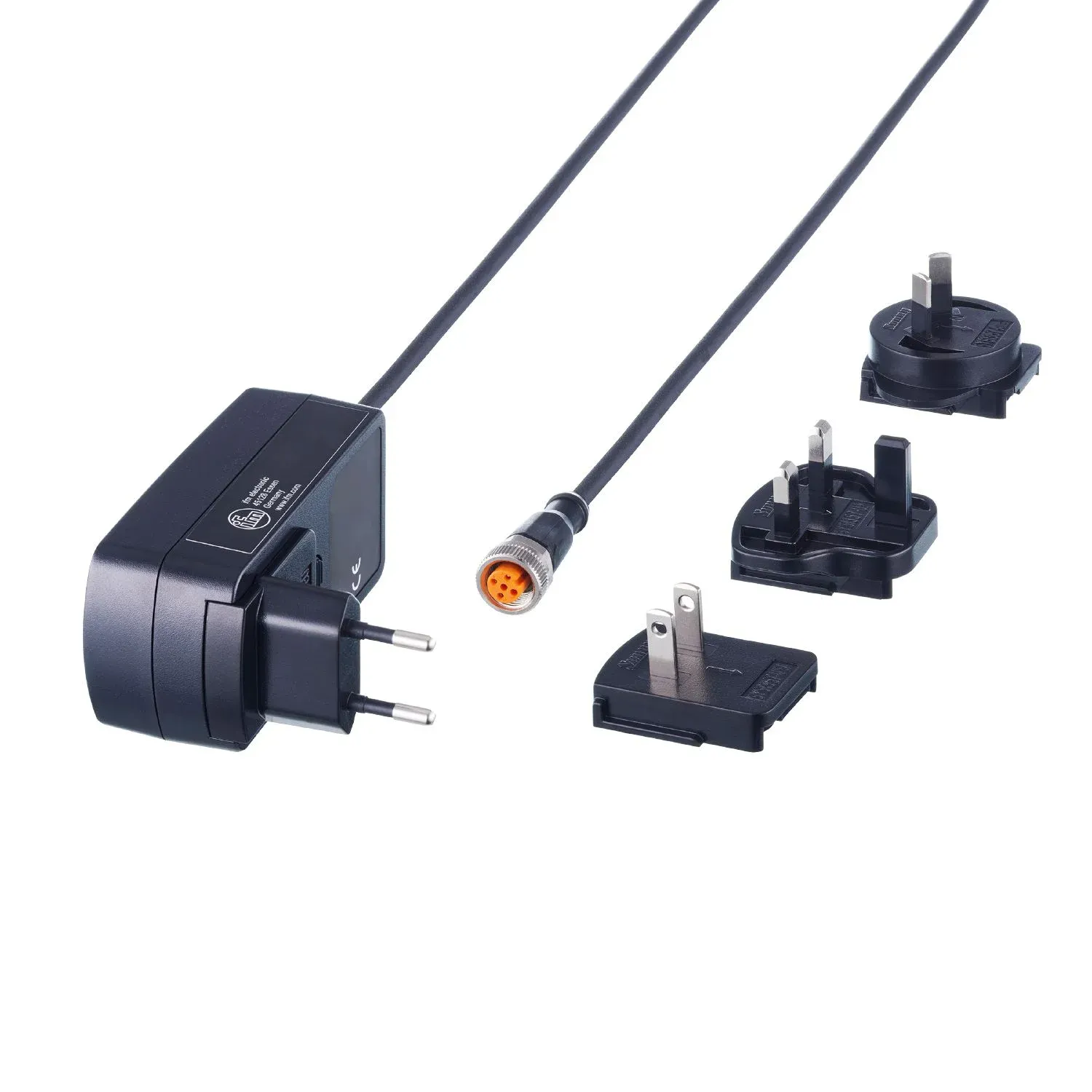

IFM E80121
E80121
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable supply of sensors with 24 V DC operating voltage
Particularly space-saving design
Easy connection via the tried-and-tested M12 connector
Specification
Electrical data
| Nominal frequency AC[Hz] [Hz] | 50...60 |
|---|---|
| Input voltage range AC[V] [V] | 100...240 |
| Output voltage DC[V] [V] | 24 |
| Protection class | II |
| Number of output circuits | 1 |
| Max. residual ripple[mV] [mV] | 240 |
| Efficiency (nominal voltage 230 V AC / 50 Hz)[%] [%] | 86.2 |
| Input current (nominal voltage 230 V AC / 50 Hz)[A] [A] | 1 |
Outputs
| Output current, total[A] [A] | 1 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...40 |
|---|---|
| Storage temperature[°C] [°C] | -20...85 |
| Protection | M12 connector: IP69K |
Mechanical data
| Weight[g] [g] | 254.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 93.5 x 46 x 35.8 |
| Materials | housing: plastics black |
Accessories
| Items supplied | Mains adapters: 1, EU 1, UK 1, USA 1, AUS |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m; 2 x 0.5 mm² |
|---|---|
| Connector | 1 x M12; coding: A; Locking: brass, nickel-plated |
