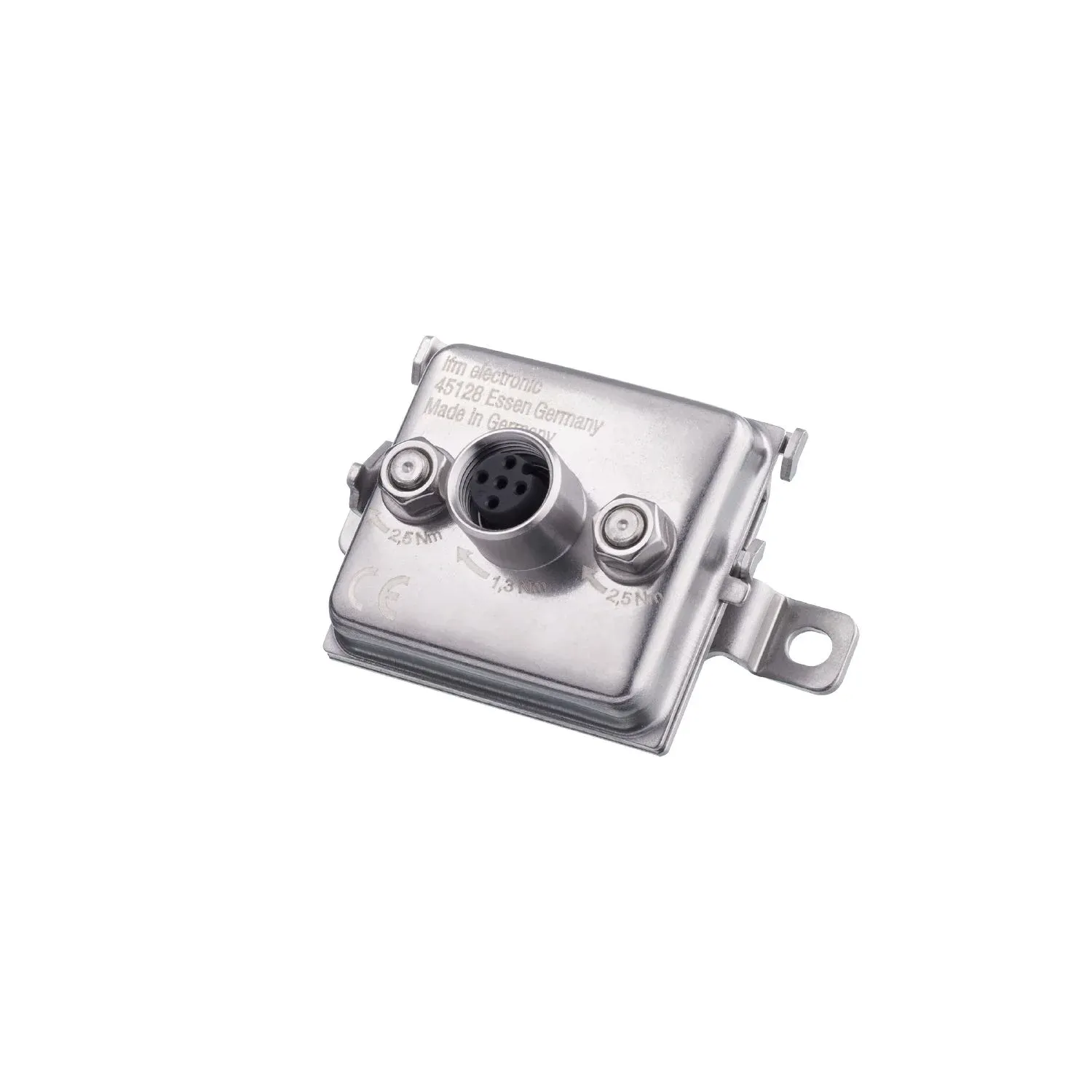

IFM E75354
E75354
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For transition from AS-i flat cable to M12 connector
Hygienic design for the requirements of the food and beverage industry
Easy and quick connection due to insulation displacement technology
Resistent gegen Hochdruckreinigung mit aggressiven Reinigungsmitteln
Large operating temperature range and high protection rating
Specification
Application
| Design | AS-i |
|---|---|
| Application | hygienic and wet areas in the food industry |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC; (AS-i) |
|---|---|
| Protection class | III |
| Operating voltage AUX DC[V] [V] | 18...32 |
| Max. current load total[A] [A] | 2 |
Operating conditions
| Ambient temperature[°C] [°C] | -30...80 |
|---|---|
| Max. relative air humidity[%] [%] | 80; (31 °C; linearly decreasing to 50 % (40 °C)) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67; IP 68; IP 69K |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 |
|---|
Mechanical data
| Weight[g] [g] | 104.3 |
|---|---|
| Materials | metal parts: stainless steel (316L/1.4404); rubber gasket for contact pins: FPM; O-ring: EPDM |
| Tightening torque[Nm] [Nm] | 2.5; (lock nuts) |
Accessories
| Accessories (optional) | Torque wrench, E70390 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - socket
| Connector | 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
