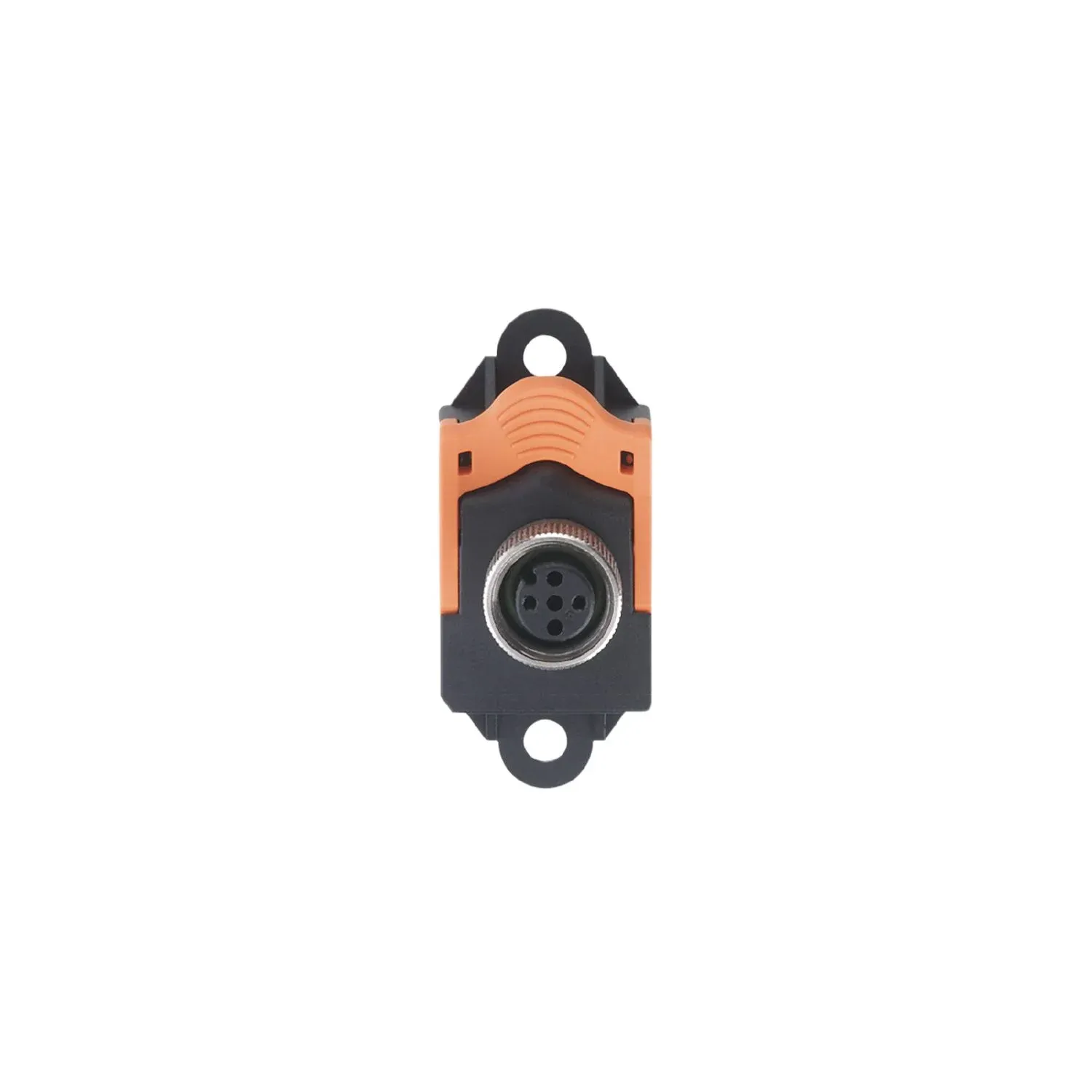

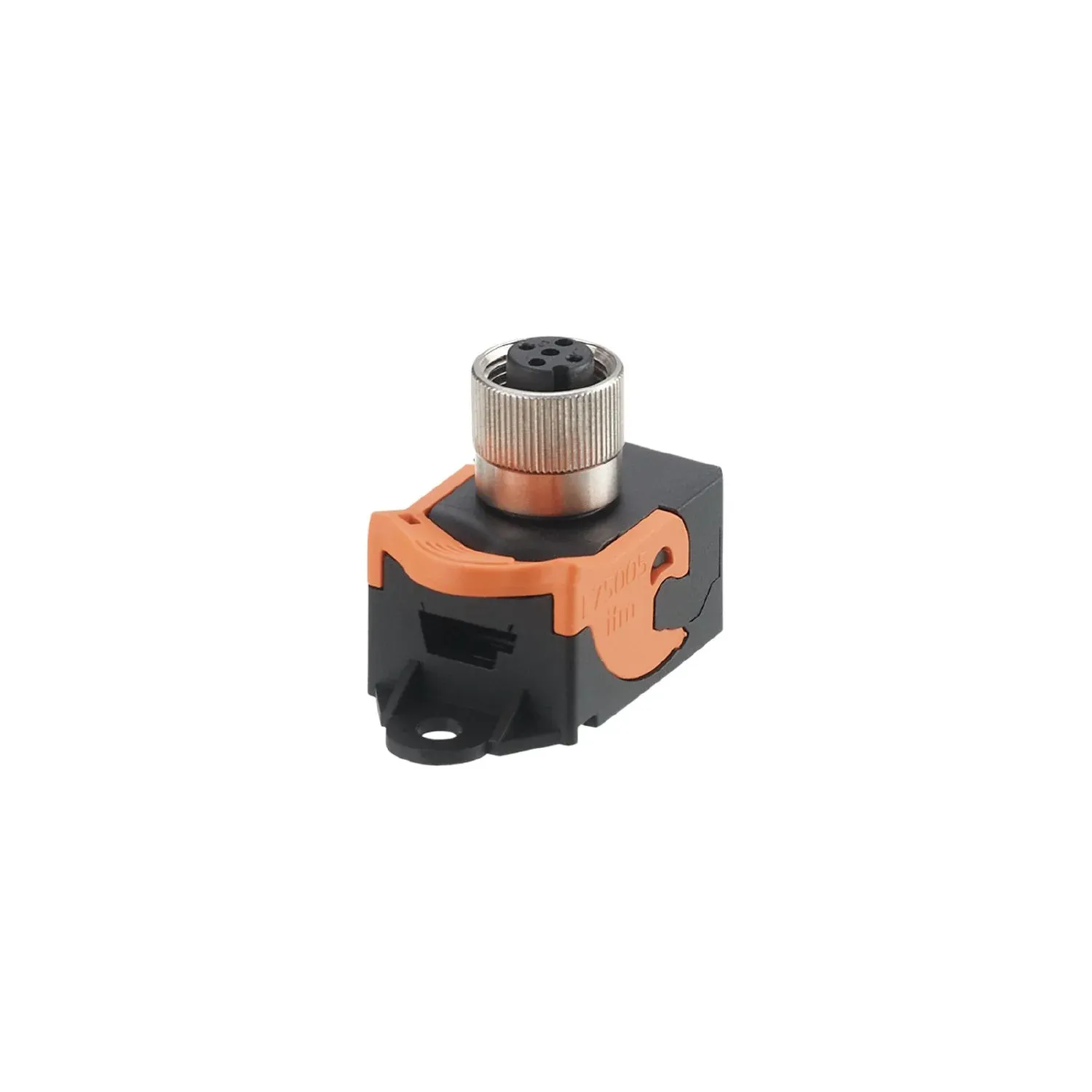

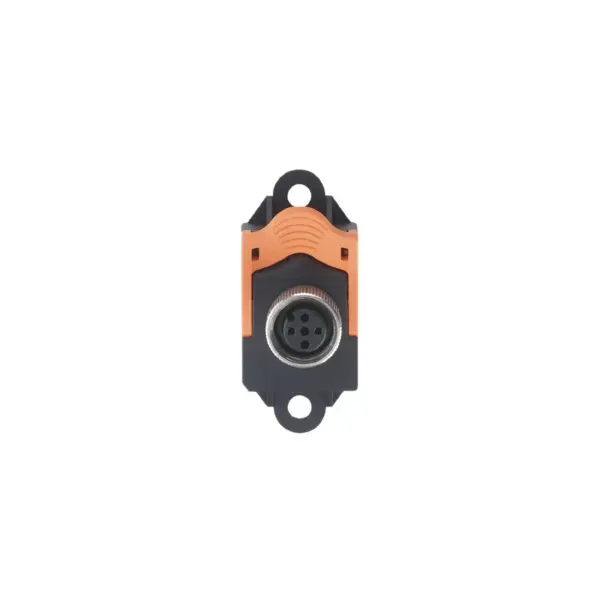

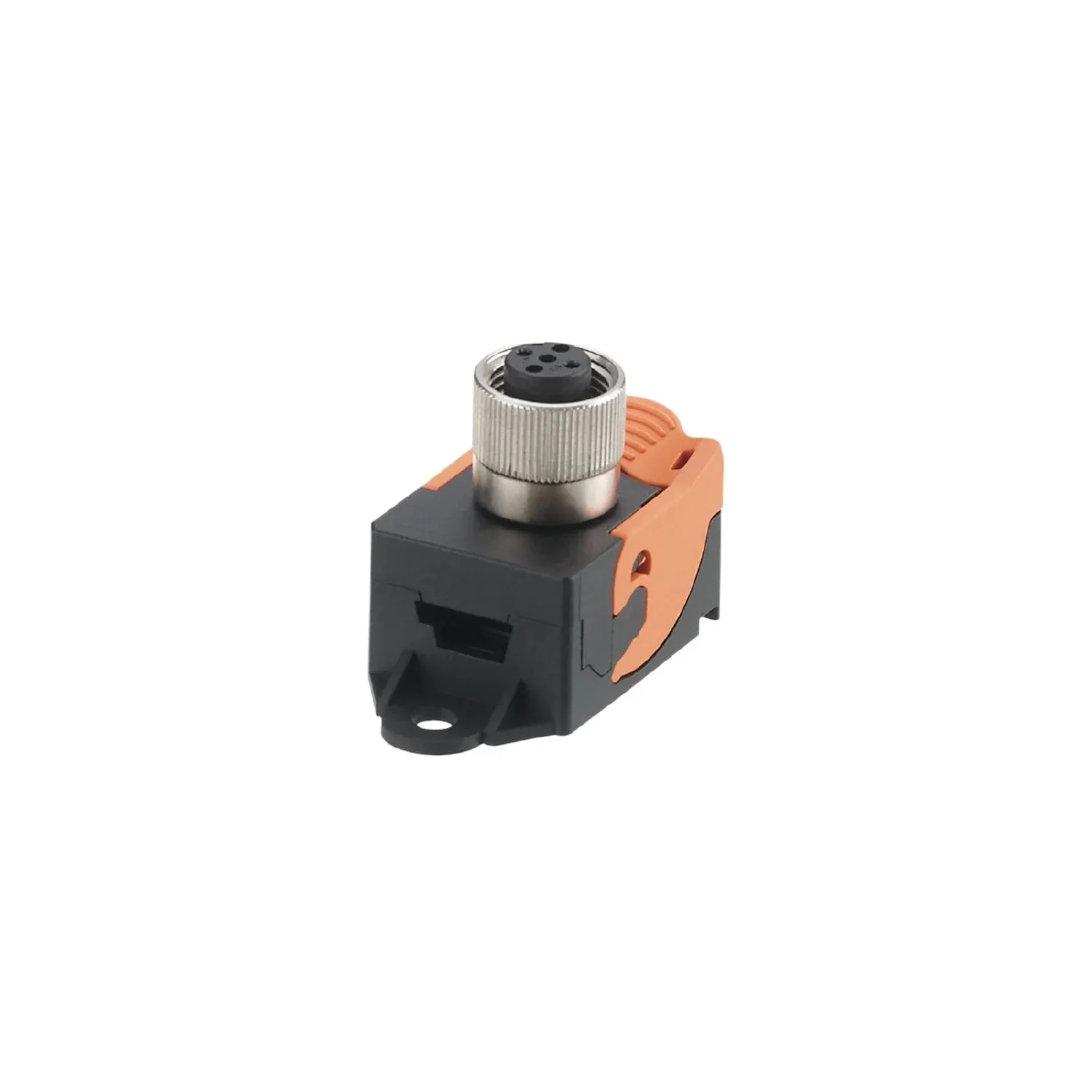

IFM E75005
E75005
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For transition from AS-i flat cable to M12 connector
For extending the AS-i network by means of spurs
Easy and quick connection due to insulation displacement technology
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Design | AS-i |
|---|
Electrical data
| Operating voltage[V] [V] | < 42 DC |
|---|---|
| Protection class | III |
| Max. current load total[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...75 |
| Protection | IP 67 |
Tests / approvals
| UL approval | power supply Class 2 |
|---|---|
| power supply | Class 2 |
Mechanical data
| Weight[g] [g] | 17.7 |
|---|---|
| Materials | housing: PA; O-ring: FKM; Lock nut: brass nickel-plated; contact pins: bronze tin-plated |
Remarks
| Remarks | The flat cable must not end in the device. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | M12; coding: A; Tightening torque: 0.4...0.6 Nm |
|---|
