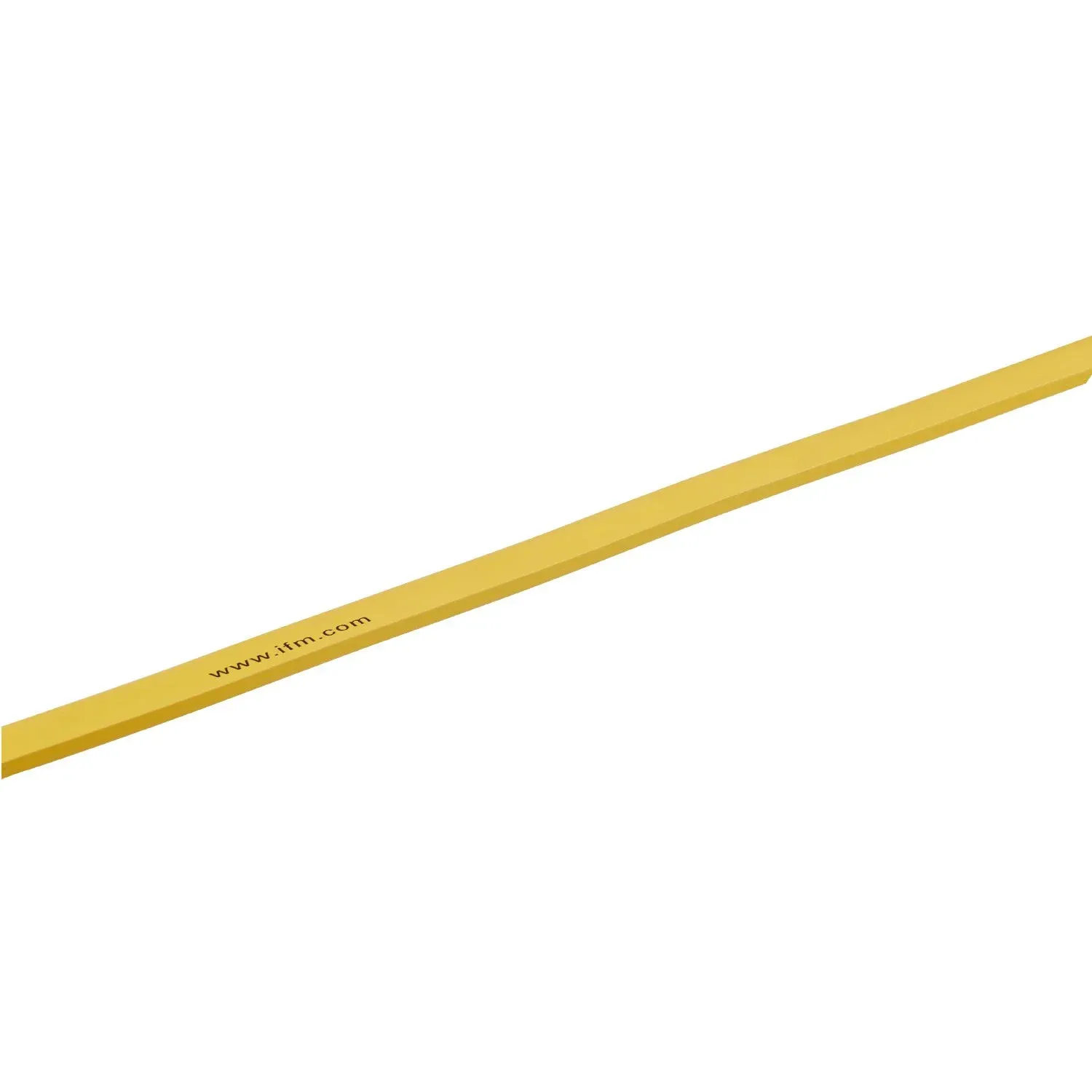

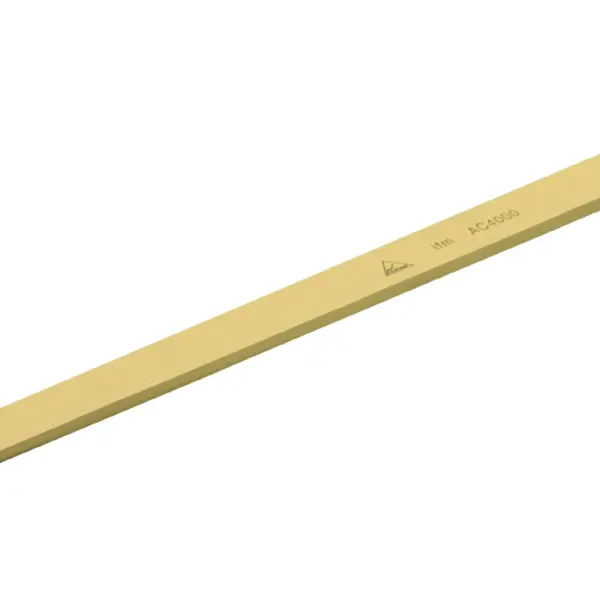

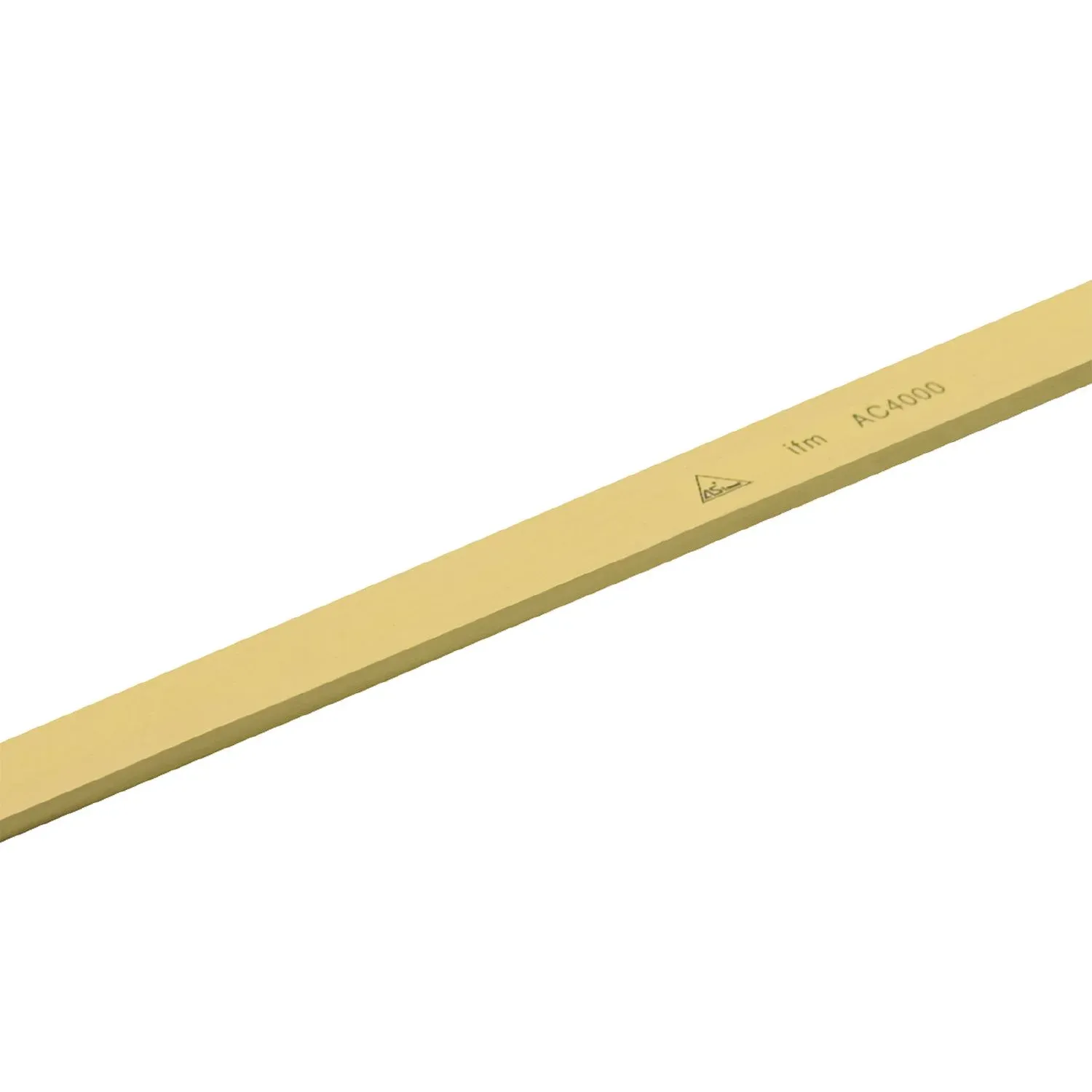

IFM E74200
E74200
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable signal transmission in AS-i networks
Connection of components by means of insulation displacement technology
Reverse polarity protection due to special shape
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Specification
Application
| Special feature | Drag chain suitability |
|---|---|
| Design | for use of insulation displacement technology |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC; (Peak voltage 300 V) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...105 |
|---|
Mechanical data
| Weight[g] [g] | 6742 |
|---|---|
| Drag chain suitability | bending radius for flexible use 75 mm travel speed max. 4 m/s at 10 m horizontal travel length and max. acceleration of 4 m/s² bending cycles ≥ 10 Mio torsional strain 360°/m |
| bending radius for flexible use | 75 mm |
| travel speed | max. 4 m/s at 10 m horizontal travel length and max. acceleration of 4 m/s² |
| bending cycles | ≥ 10 Mio |
| torsional strain | 360°/m |
Remarks
| Remarks | 100 m form supplied: coiled |
|---|---|
| Pack quantity | 100 m |
Electrical connection
| Cable | 100 m, TPE, yellow; 2 x 1.5 mm² |
|---|
