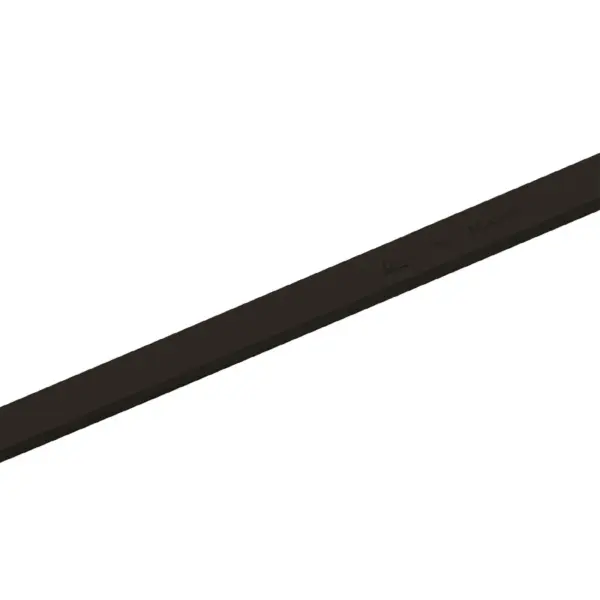

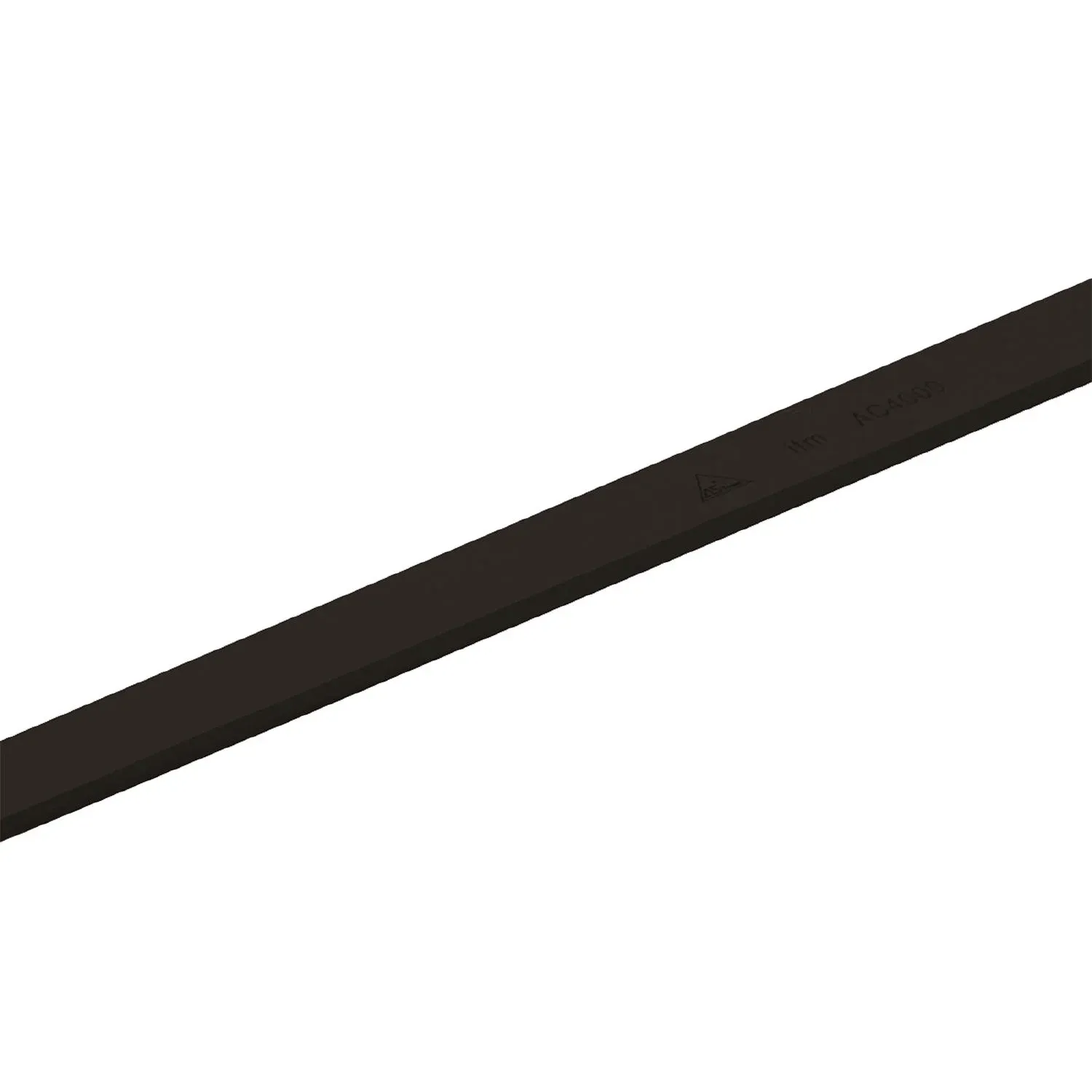

IFM E74110
E74110
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable external 24 V power supply in AS-i networks
Connection of components by means of insulation displacement technology
Reverse polarity protection due to special shape
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Special feature | Halogen-free; Drag chain suitability |
|---|---|
| Design | for use of insulation displacement technology |
| Application | external 24 V power supply |
Electrical data
| Operating voltage[V] [V] | 24 DC |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|
Mechanical data
| Weight[g] [g] | 6465 |
|---|---|
| Drag chain suitability | bending radius for flexible use 50 mm travel speed max. 4 m/s at 10 m horizontal travel length and max. acceleration of 4 m/s² bending cycles ≥ 10 Mio torsional strain 360°/m |
| bending radius for flexible use | 50 mm |
| travel speed | max. 4 m/s at 10 m horizontal travel length and max. acceleration of 4 m/s² |
| bending cycles | ≥ 10 Mio |
| torsional strain | 360°/m |
Remarks
| Remarks | 100 m form supplied: coiled |
|---|---|
| Pack quantity | 100 m |
Electrical connection
| Cable | 100 m, PUR, Halogen-free, black; 2 x 1.5 mm² |
|---|
