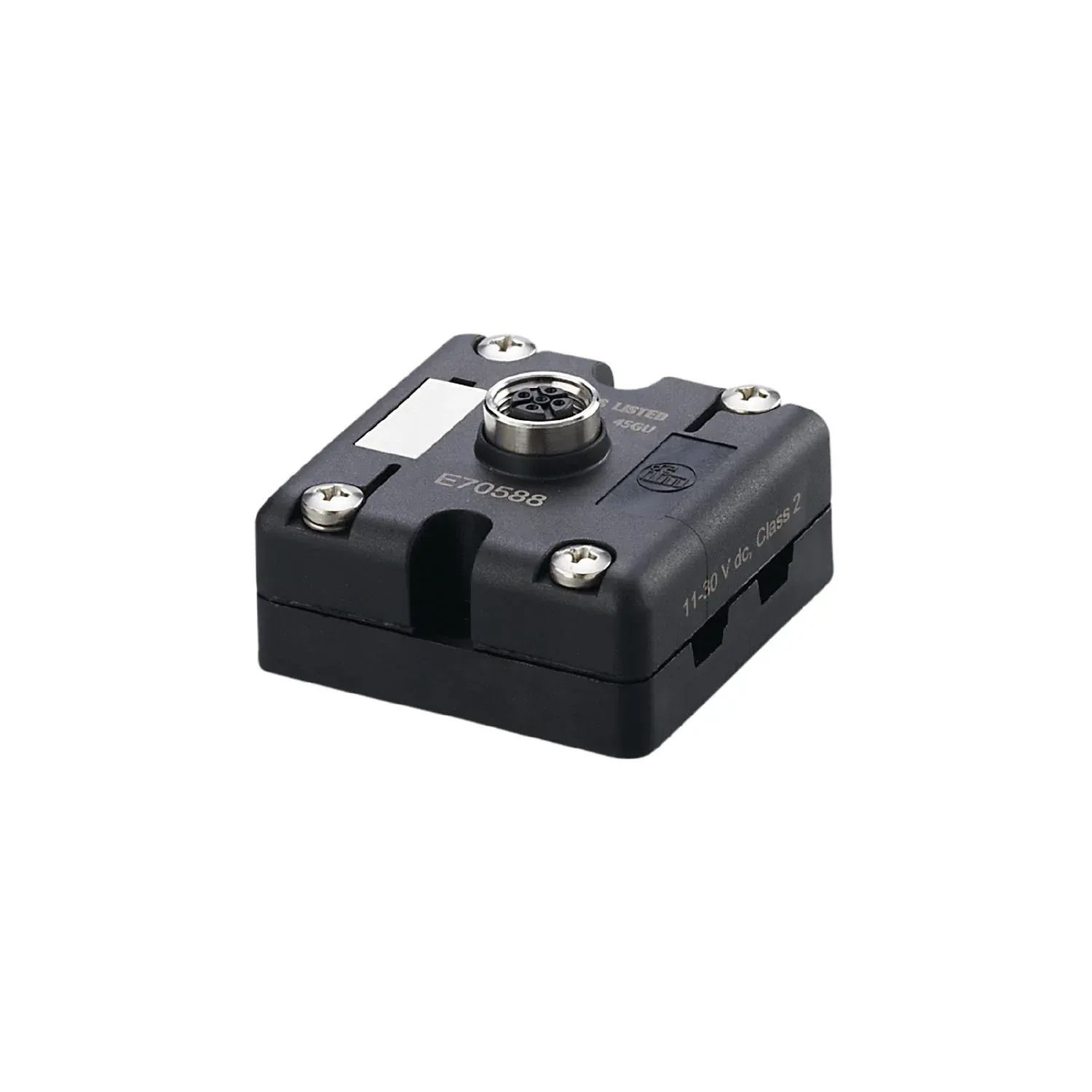

IFM E70588
E70588
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable distribution of the AS-i voltage or the external 24 V supply
Easy and quick connection due to insulation displacement technology
High protection rating for the requirements of harsh industrial environments
For transition from AS-i flat cable to M12 connector
For extending the AS-i network by means of spurs
Specification
Application
| Design | AS-i / 24 V |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current load total[A] [A] | 2 |
| Additional voltage supply[V] [V] | 24 DC |
Operating conditions
| Ambient temperature[°C] [°C] | -25...75 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight[g] [g] | 95.5 |
|---|---|
| Materials | PA 6.6; socket: stainless steel (316L/1.4404); screws: stainless steel (316L/1.4404); nut: stainless steel (316L/1.4404); O-ring: NBR; flat cable seal: NBR |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | M12; coding: A |
|---|
