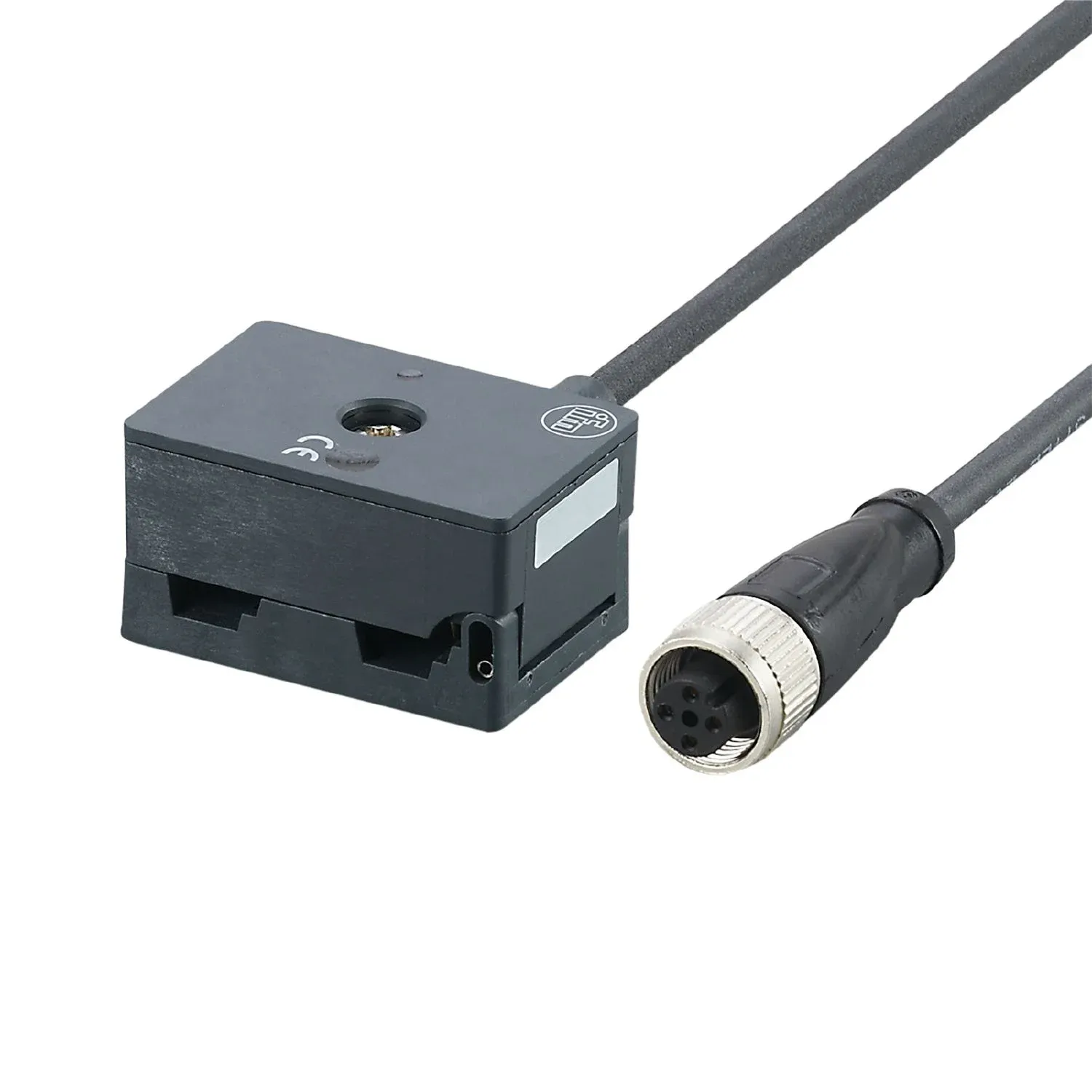

IFM E70583
E70583
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For transition from AS-i flat cable to M12 connector
For extending the AS-i network by means of spurs
Easy and quick connection due to insulation displacement technology
High protection rating for the requirements of harsh industrial environments
Specification
Application
| Design | AS-i |
|---|---|
| Application | distribution of the AS-i voltage to M12 socket |
Electrical data
| Protection class | III |
|---|---|
| Max. current load per module/slot[A] [A] | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...75 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 83.1 |
|---|---|
| Materials | housing: PBT / PC |
| Tightening torque[Nm] [Nm] | 1.65 |
Accessories
| Accessories (optional) | flat cable end seal:, E70413 heat-shrink cap:, E70113 |
|---|
Remarks
| Remarks | The flat cable must not end in the splitter. Use a flat cable seal or heat-shrink cap for sealing. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 0.6 m, PUR, Ø 4.3 mm; 2 x 0.34 mm² |
|---|---|
| Connector | M12; coding: A; Moulded body: PUR |
