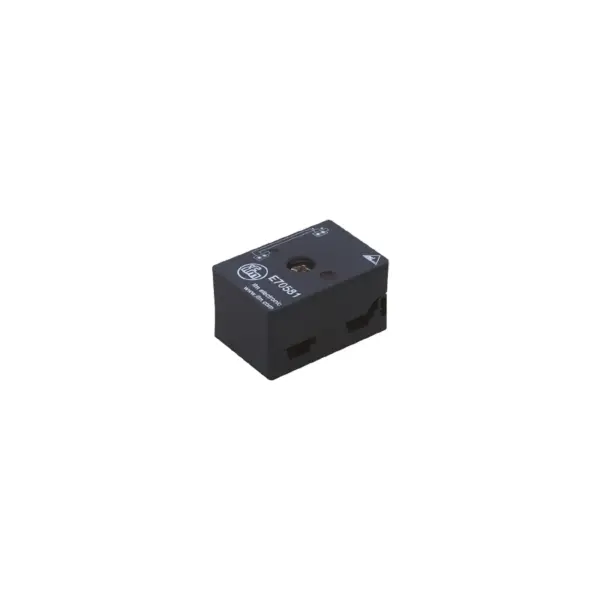

IFM E70581
E70581
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable distribution of the AS-i voltage or the external 24 V supply
Easy and quick connection due to insulation displacement technology
High protection rating for the requirements of harsh industrial environments
Specification
Electrical data
| Protection class | III |
|---|---|
| Max. current load total[A] [A] | 8 |
Outputs
| Electrical design | AS-i |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...75 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 49.6 |
|---|---|
| Materials | PBT; screw: stainless steel (303/1.4305); contact pins: gold-plated |
| Tightening torque[Nm] [Nm] | 1.65; (Mounting screw) |
Accessories
| Accessories (optional) | flat cable end seal:, E70413 heat-shrink cap:, E70113 |
|---|
Remarks
| Remarks | The flat cable must not end in the splitter. Use a flat cable seal or heat-shrink cap for sealing. |
|---|---|
| Pack quantity | 1 pcs. |
