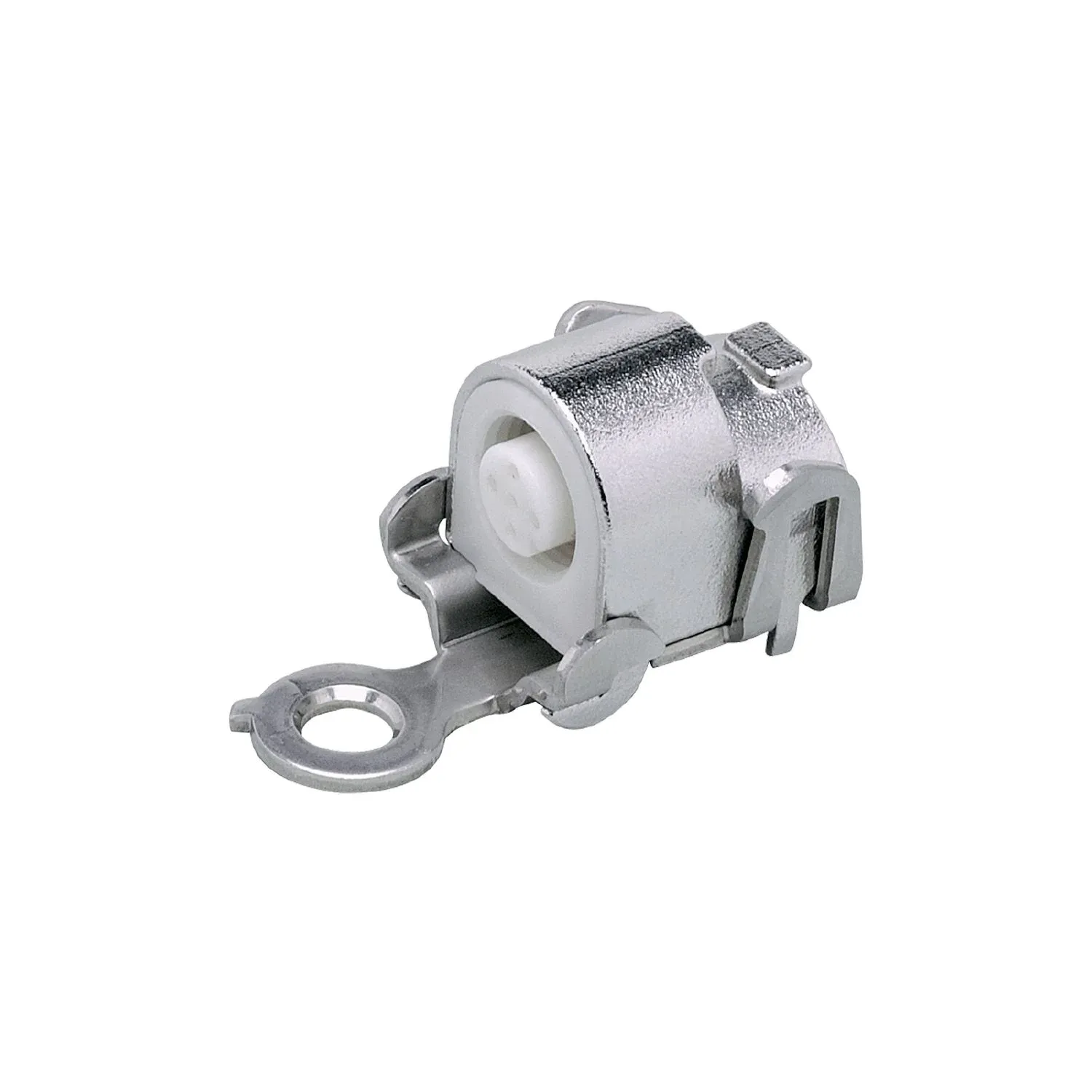

IFM E70455
E70455
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For transition from AS-i flat cable to M12 connector
Hygienic design for the requirements of the food and beverage industry
Easy and quick connection due to insulation displacement technology
Resistant to high-pressure cleaning with aggressive cleaning agents
Large operating temperature range and high protection rating
Specification
Application
| Design | AS-i |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|
Outputs
| Max. current load outputs total[A] [A] | 2 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -30...80 |
|---|---|
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC | EN 61000-6-2 |
|---|
Mechanical data
| Weight[g] [g] | 47 |
|---|---|
| Materials | metal parts: stainless steel (316L/1.4404); rubber gasket for contact pins: FPM; O-ring: EPDM |
Accessories
| Accessories (optional) | Torque wrench:, E70390 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
