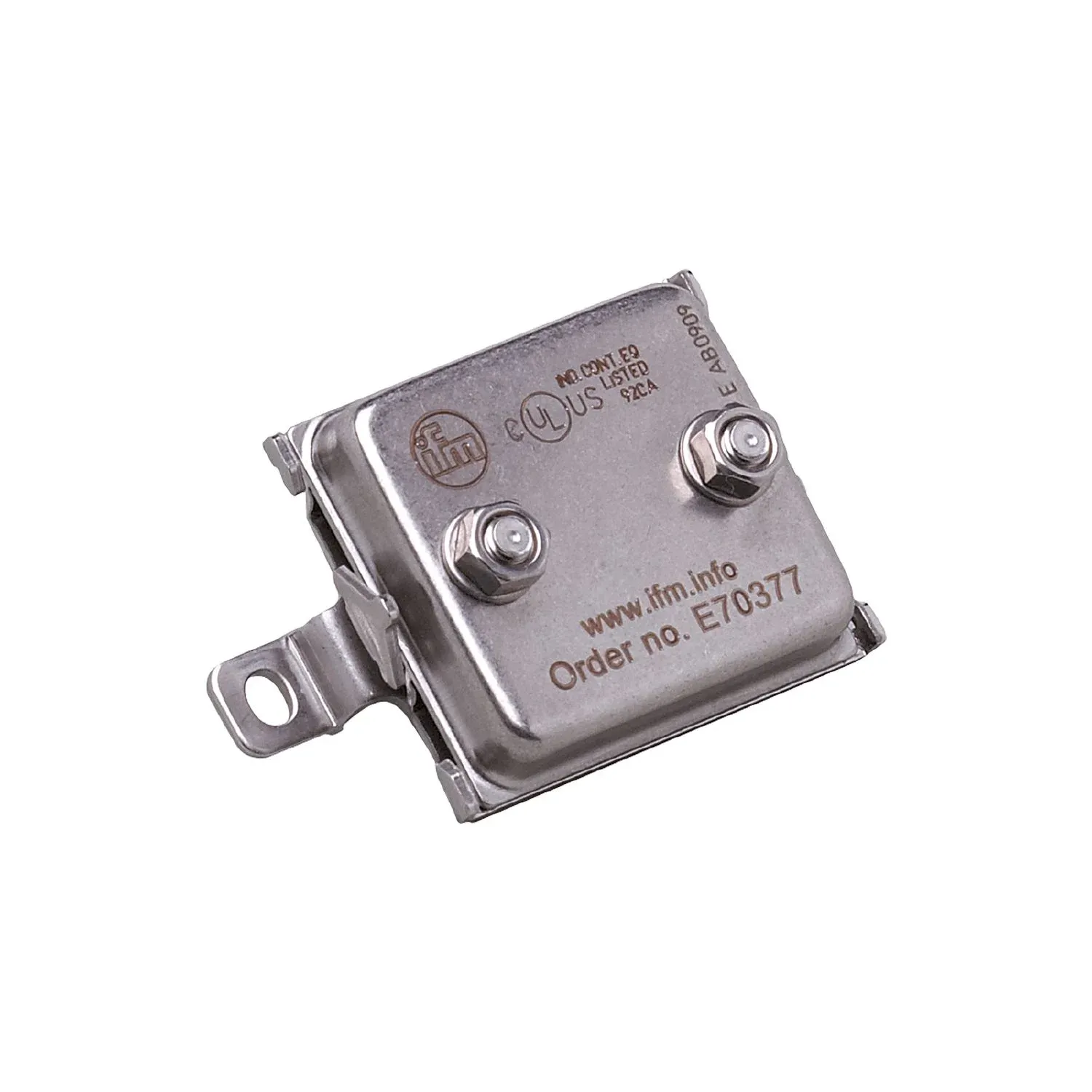

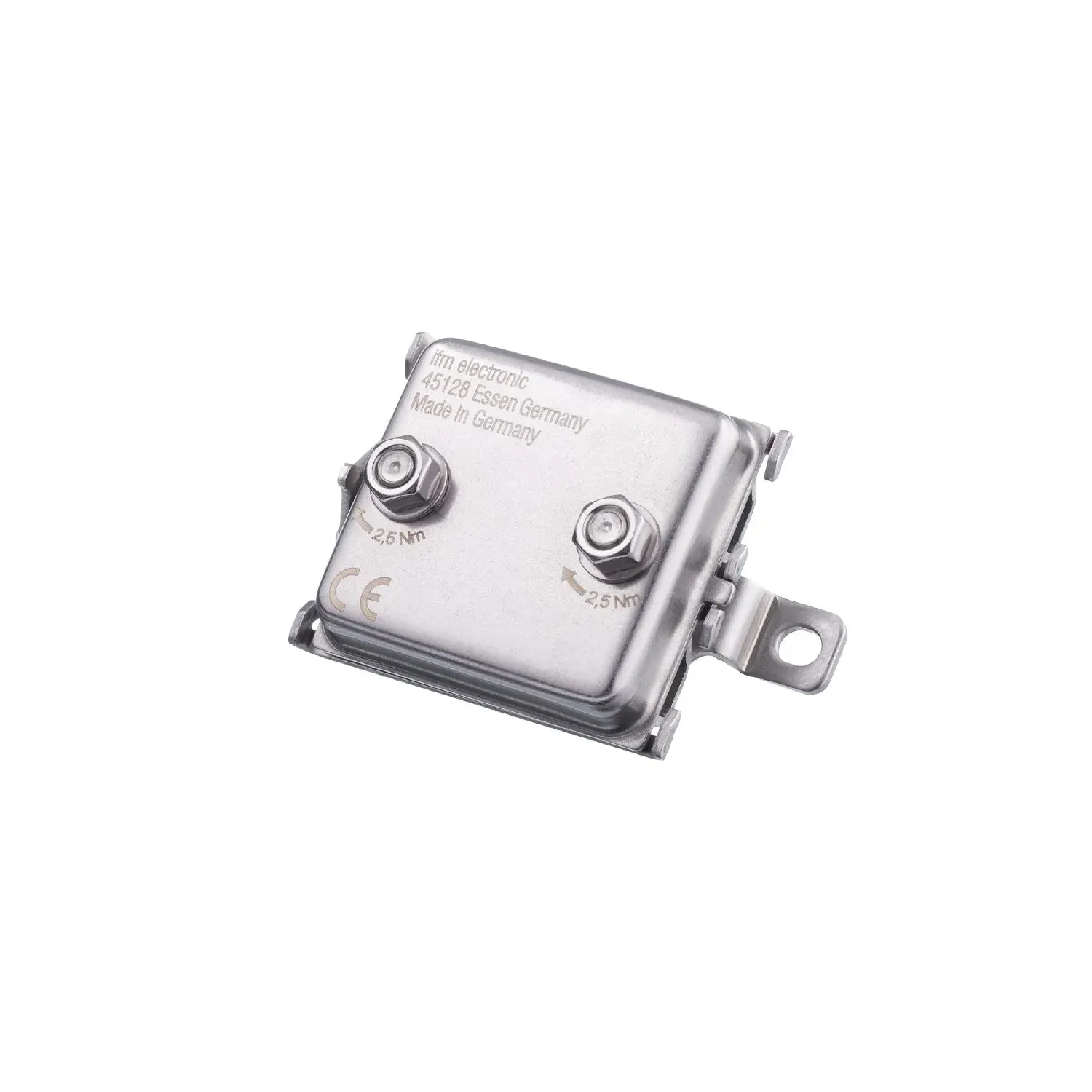

IFM E70377
E70377
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable distribution of the AS-i voltage or the external 24 V supply
Hygienic design for the requirements of the food and beverage industry
Easy and quick connection due to insulation displacement technology
Resistant to high-pressure cleaning with aggressive cleaning agents
Large operating temperature range and high protection rating
Specification
Application
| Design | AS-i / 24 V |
|---|---|
| Application | hygienic and wet areas in the food industry |
Electrical data
| Protection class | III |
|---|---|
| Max. current load total[A] [A] | 8 |
Outputs
| Electrical design | AS-i |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -30...80 |
|---|---|
| Max. relative air humidity[%] [%] | 80; (31 °C; linearly decreasing to 50 % (40 °C)) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67; IP 68; IP 69K |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 |
|---|
Mechanical data
| Weight[g] [g] | 101.5 |
|---|---|
| Materials | metal parts: stainless steel (316L/1.4404); rubber gasket for contact pins: FPM; O-ring: EPDM |
| Tightening torque[Nm] [Nm] | 2.5; (lock nuts) |
Accessories
| Accessories (optional) | Torque wrench, E70390 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
