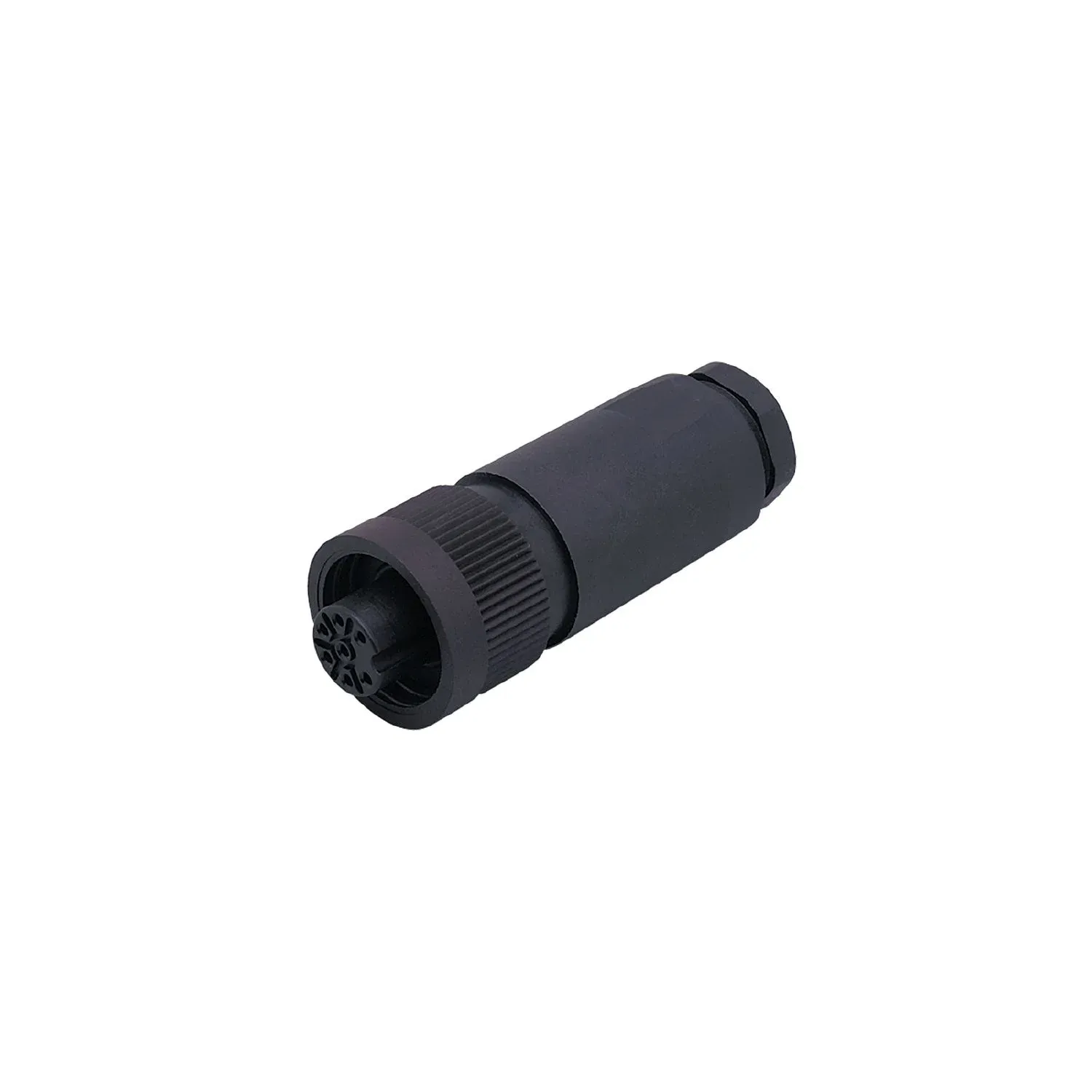

IFM E70142
E70142
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Gold-plated contacts for reliable electrical connections
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Safe cable connection with screw terminals
Specification
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | < 45 AC / < 70 DC |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...100 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 49.4 |
|---|---|
| Dimensions[mm] [mm] | 29 x 29 x 71 |
| Moulded-body material | PBT |
| Material nut | PBT |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | ...2.5 mm²; Cable sheath: Ø 10...12 mm |
|---|
Electrical connection - socket
| Connector | 1 x Rd24, straight; coding: A; Moulded body: PBT; Locking: PBT; Contacts: gold-plated |
|---|
