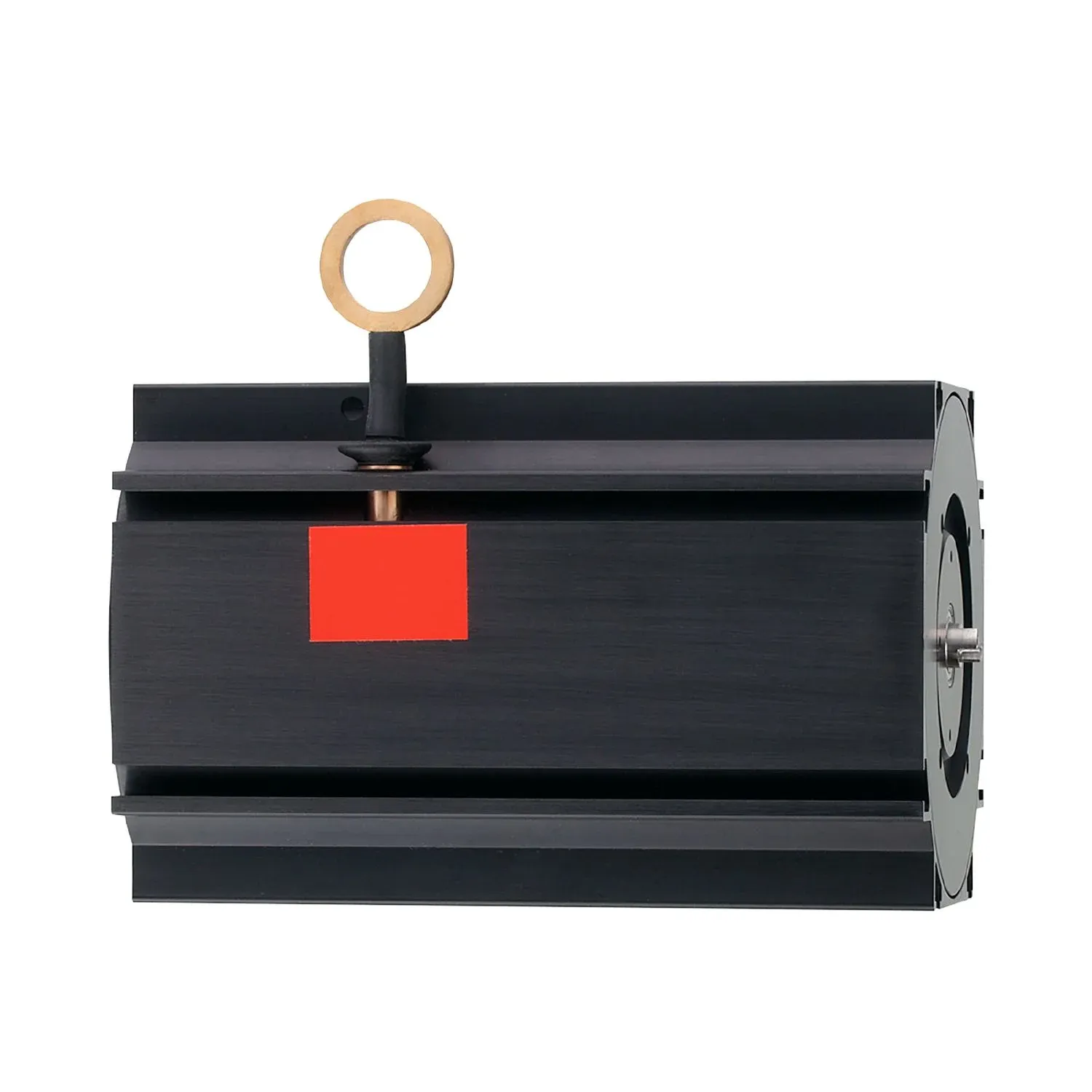

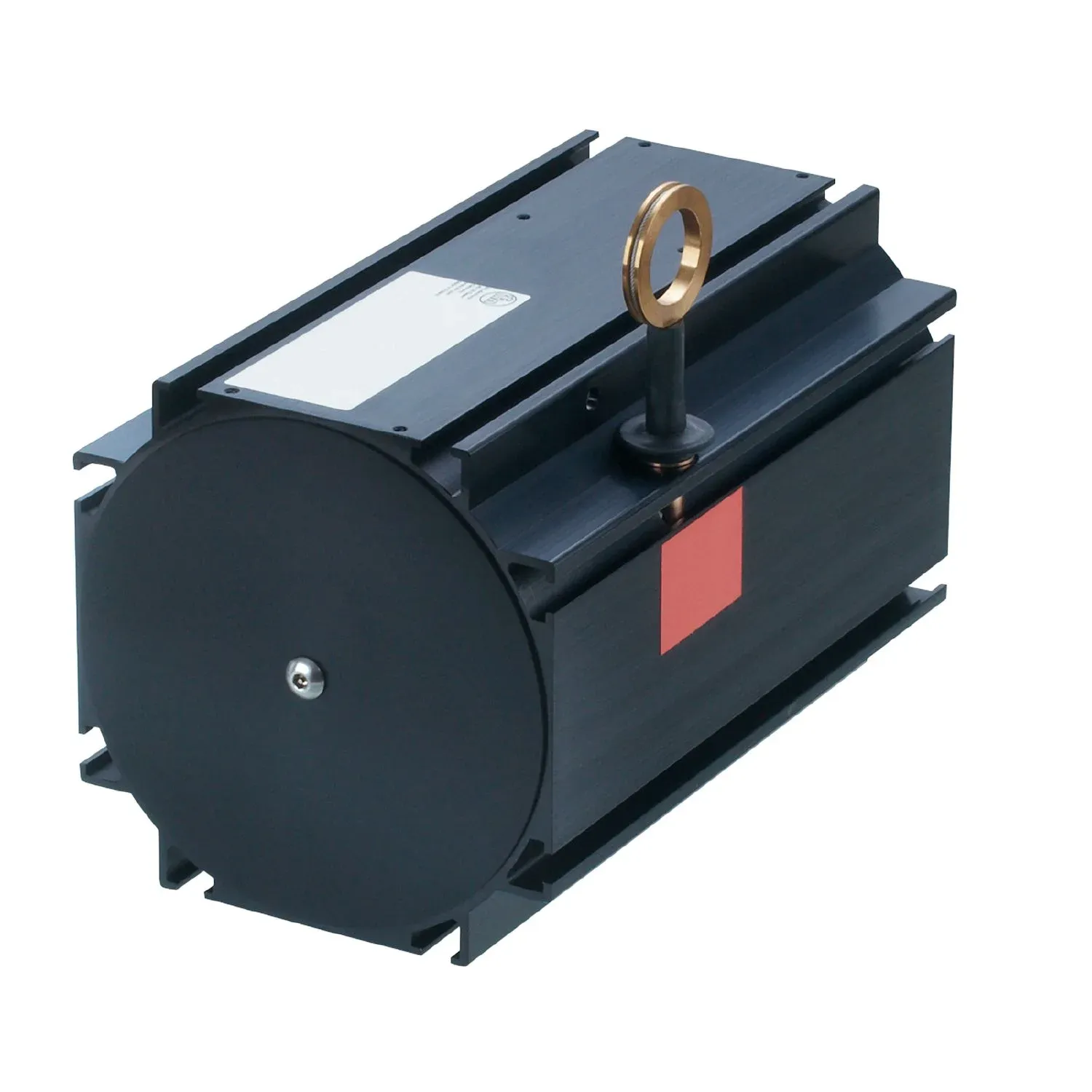

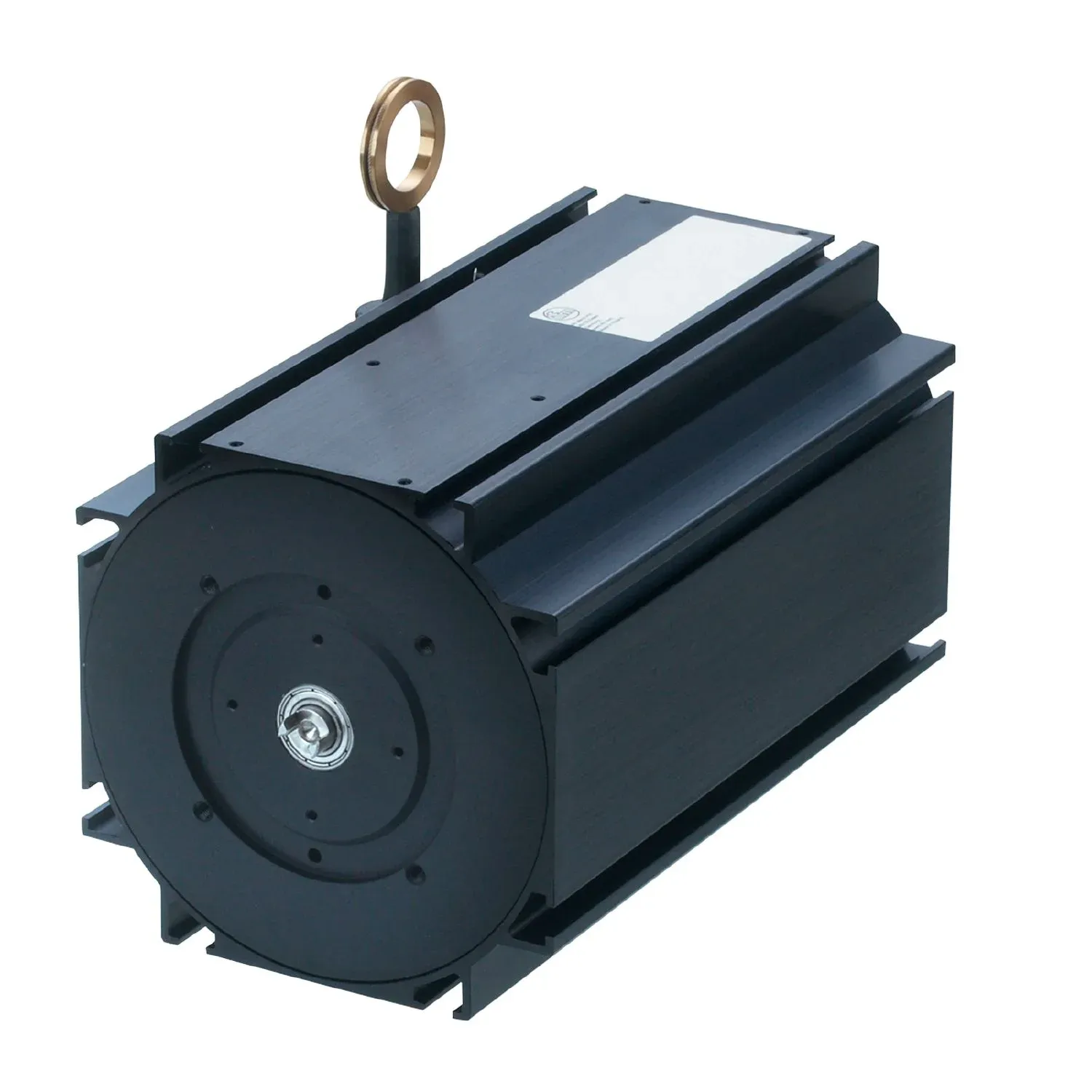

IFM E61443
E61443
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Durable tension spring mechanism
High-quality components guarantee a long service life and high operational reliability
Coated stainless steel cables reduce maintenance
Specification
Product characteristics
| Shaft design | solid shaft |
|---|---|
| Shaft diameter[mm] [mm] | 6 |
Application
| Design | for encoders with 58 mm synchro flange and 6 mm solid shaft |
|---|
Accuracy / deviations
| Accuracy | ± 0.01 % FSO |
|---|---|
| Repeatability | ± 0,001 % FSO |
Operating conditions
| Ambient temperature[°C] [°C] | -20...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...80 |
| Storage humidity[%] [%] | 5...95; (non condensing) |
Tests / approvals
| Shock resistance | IEC628-2-27 50 g / 20 ms |
|---|---|
| IEC628-2-27 | 50 g / 20 ms |
| Vibration resistance | IEC68-2-6 20 g / 20..200 Hz |
| IEC68-2-6 | 20 g / 20..200 Hz |
Mechanical data
| Weight[g] [g] | 3510.8 |
|---|---|
| Dimensions[mm] [mm] | 115 x 168.7 x 115 |
| Top flange diameter[mm] [mm] | 58 |
| Materials | housing: aluminium anodised; wire: stainless steel polyamide coated |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
| Max. measuring length[mm] [mm] | 10000 |
| Wire drum circumference[mm] [mm] | 315 |
| Wire diameter[mm] [mm] | 1 |
| Wire connection | 20,2; (eyelet) |
| Wire properties | max. speed of wire displacement [m /s] 2 max. wire acceleration [g] 6 max. extension force [N] 21 min. retraction force [N] 8 |
| max. speed of wire displacement | [m /s] |
| max. wire acceleration | [g] |
| max. extension force | [N] |
| min. retraction force | [N] |
| Fixing flange | synchro-flange |
Accessories
| Items supplied | screws: 3 x M4 cylinder screws: 4 x M4 washers synchro-flange Coupling for encoders |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
