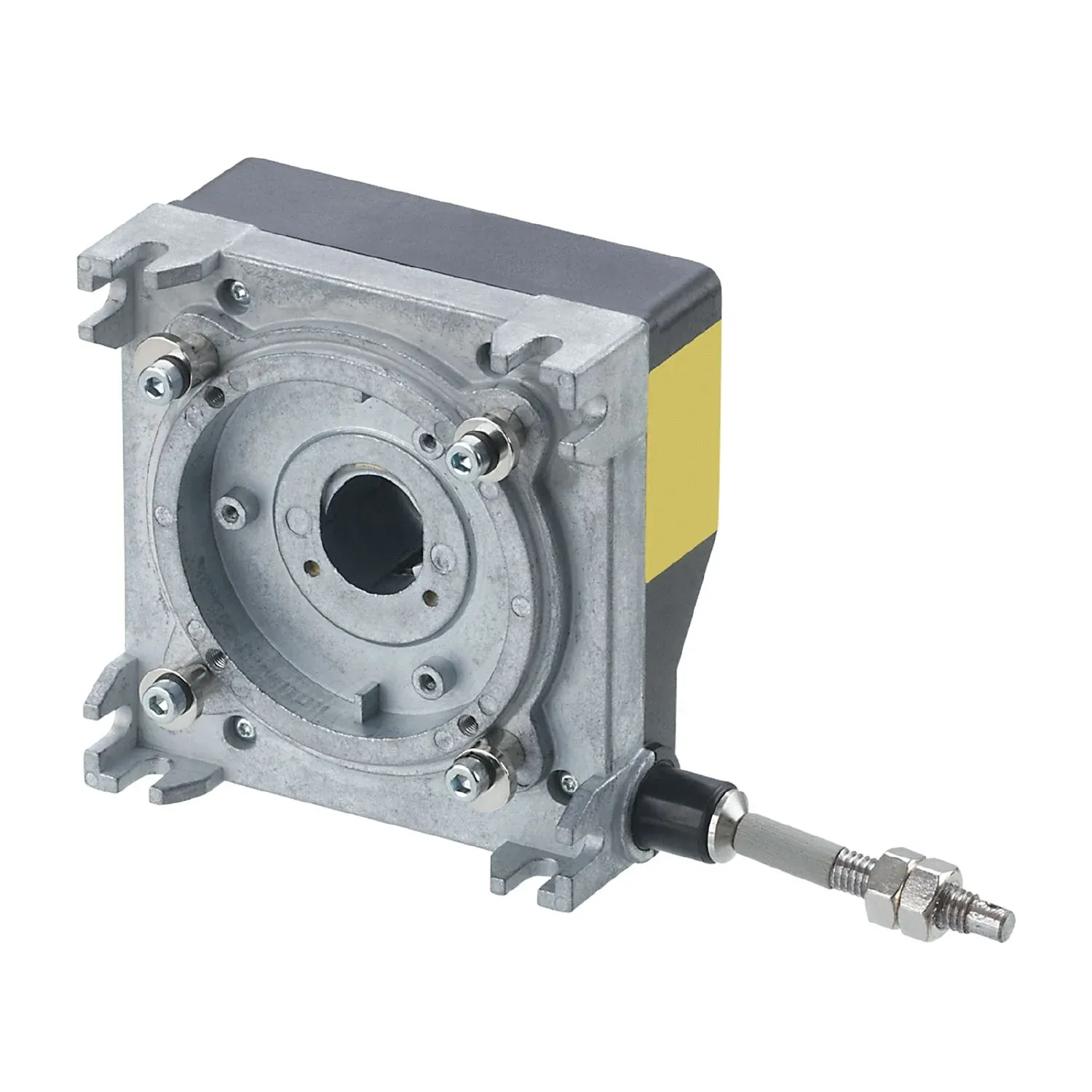

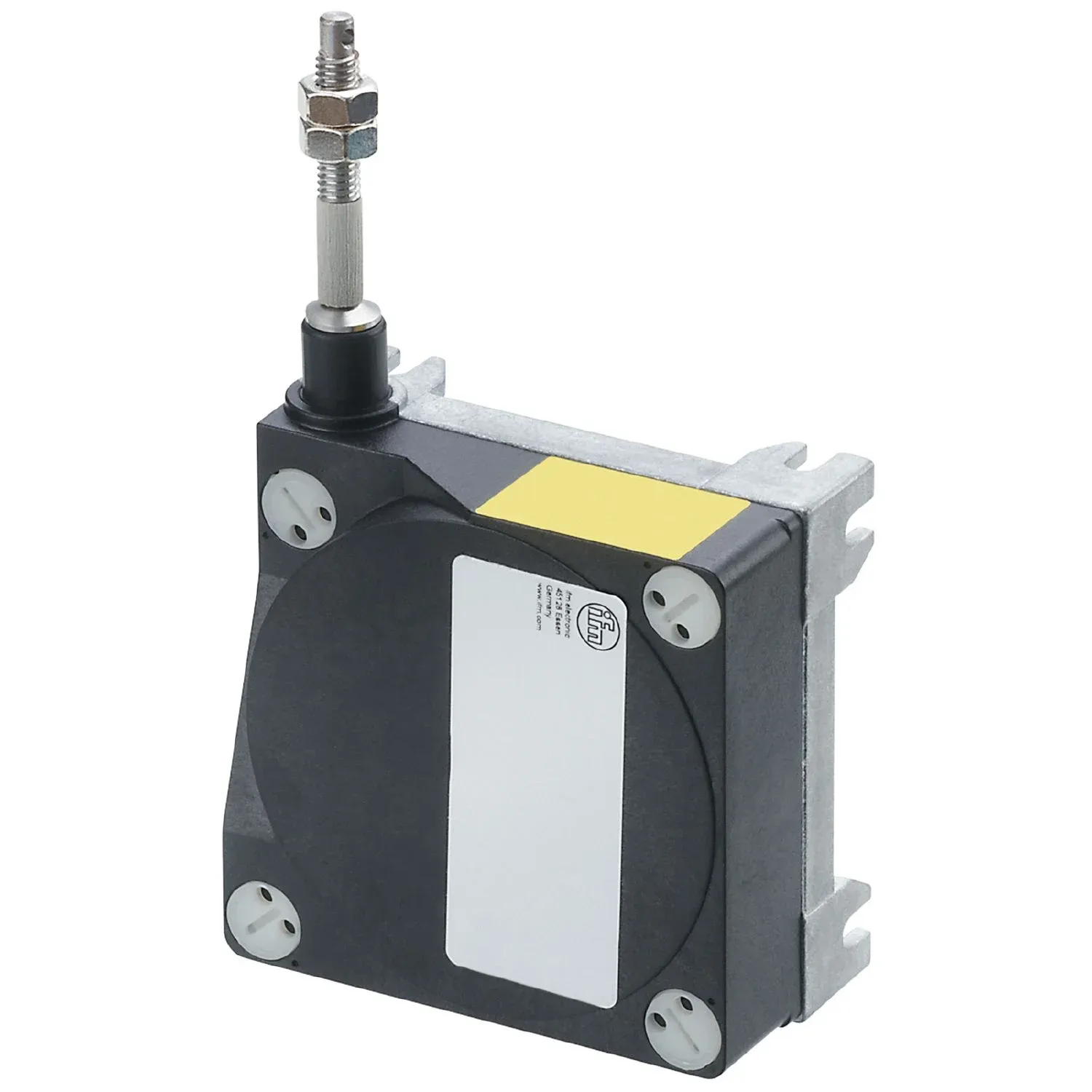

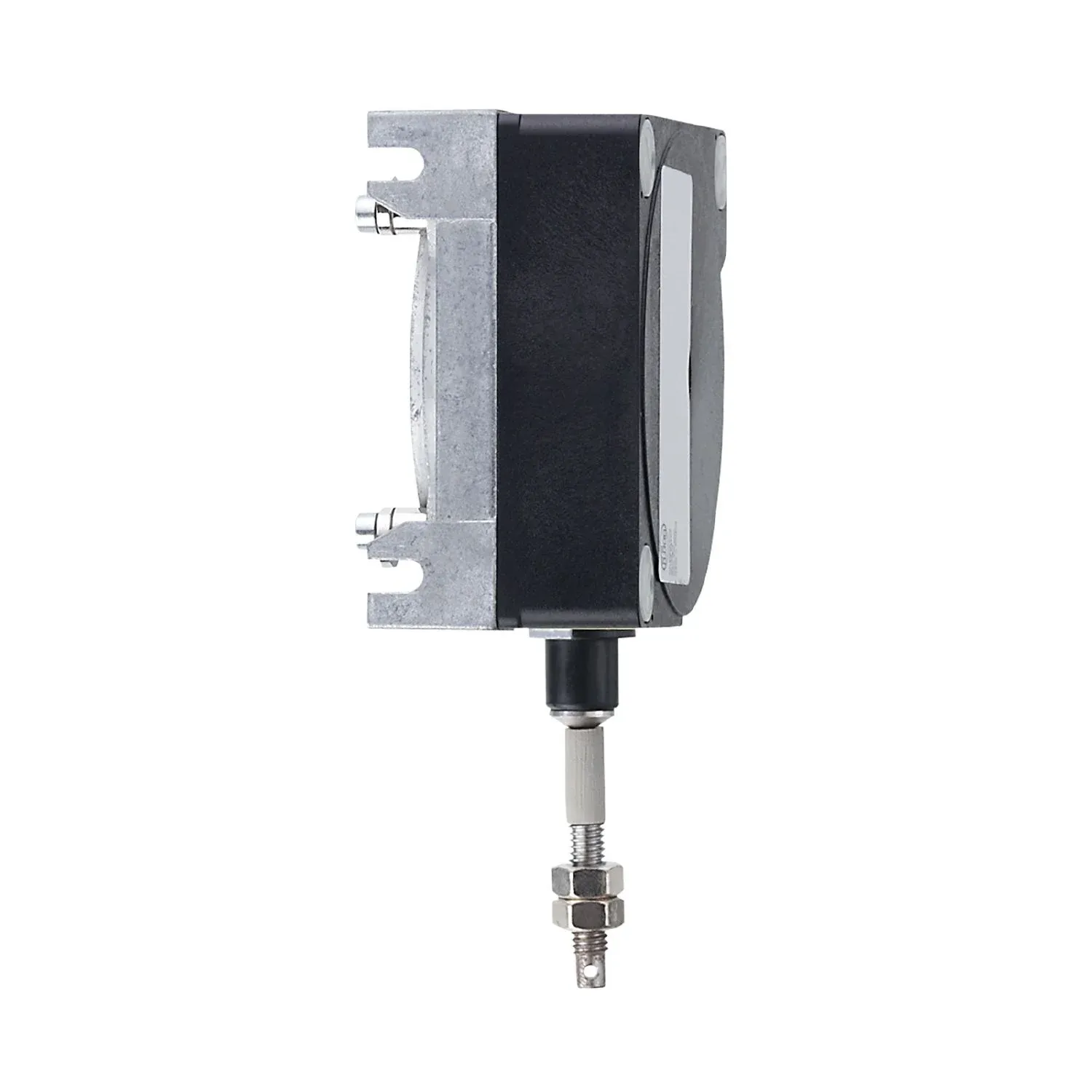

IFM E61441
E61441
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Particularly small housing for use where space is restricted
Durable tension spring mechanism
Coated stainless steel cables reduce maintenance
Specification
Product characteristics
| Shaft design | solid shaft |
|---|---|
| Shaft diameter[mm] [mm] | 6 |
Application
| Design | for encoders with 58 mm synchro flange and 6 mm solid shaft |
|---|
Accuracy / deviations
| Accuracy | ± 0.012 % FSO |
|---|---|
| Repeatability | ± 0,005 % FSO |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...80 |
| Storage humidity[%] [%] | 5...95; (non condensing) |
Mechanical data
| Weight[g] [g] | 598.5 |
|---|---|
| Top flange diameter[mm] [mm] | 58 |
| Materials | housing: diecast zinc / plastic; wire: stainless steel polyamide coated |
| Shaft design | solid shaft |
| Shaft diameter[mm] [mm] | 6 |
| Max. measuring length[mm] [mm] | 3000 |
| Wire drum circumference[mm] [mm] | 200 |
| Wire diameter[mm] [mm] | 0.87 |
| Wire connection | M6 |
| Wire properties | max. speed of wire displacement [m /s] 0,8 max. wire acceleration [g] 1 max. extension force [N] 3 min. retraction force [N] 2,5 |
| max. speed of wire displacement | [m /s] |
| max. wire acceleration | [g] |
| max. extension force | [N] |
| min. retraction force | [N] |
| Fixing flange | synchro-flange |
Remarks
| Pack quantity | 1 pcs. |
|---|
