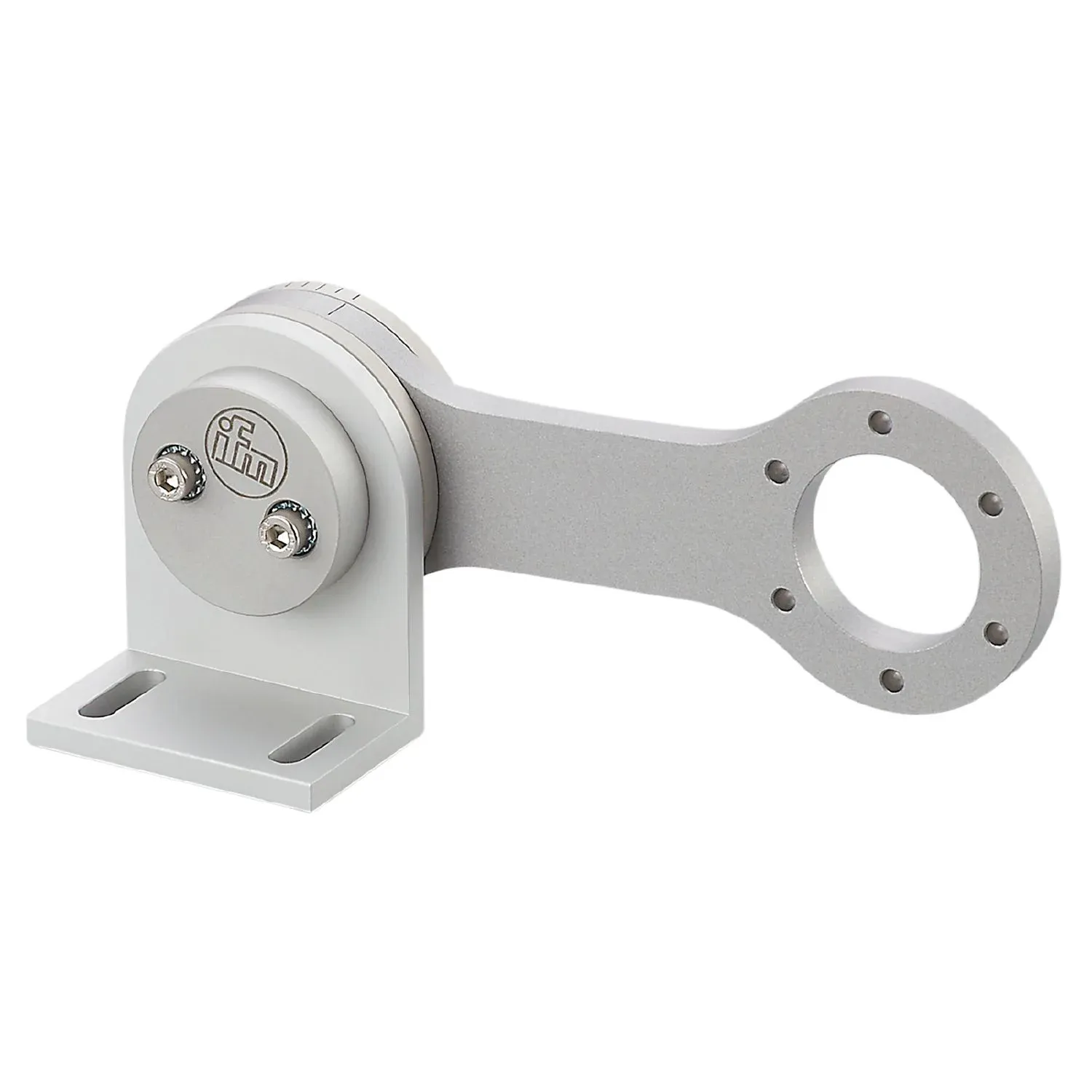

IFM E61438
E61438
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use of encoders in combination with measuring wheels
Continuously adjustable pretension
Laser engraved scale as setting aid
Modular mounting concept
Allows for damping direction change for upward or downward motions
Specification
Application
| Design | for encoder with clamp flange |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -30...60 |
|---|
Mechanical data
| Weight[g] [g] | 527.1 |
|---|---|
| Installation instruction | can be mounted from both sides |
| Dimensions[mm] [mm] | 180 x 65.9 x 75 |
| External diameter[mm] [mm] | 300 |
| Materials | aluminium anodised; Spring: stainless steel (301/1.4310) |
| Tightening torque[Nm] [Nm] | 4.3 |
| Max. angular displacement[°] [°] | 45 |
| Activation force[N] [N] | 10...30 |
Remarks
| Remarks | With scale |
|---|---|
| Pack quantity | 1 pcs. |
