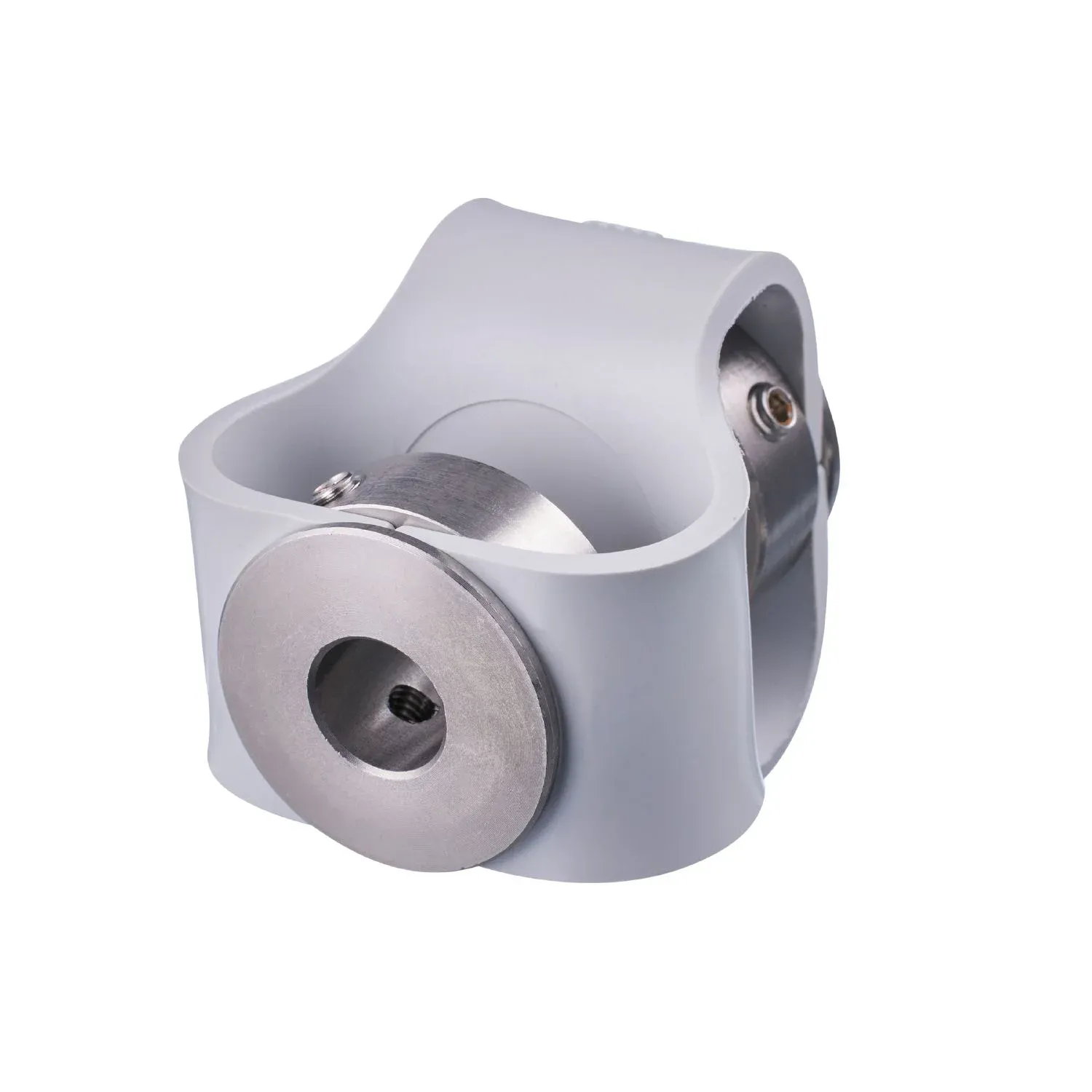

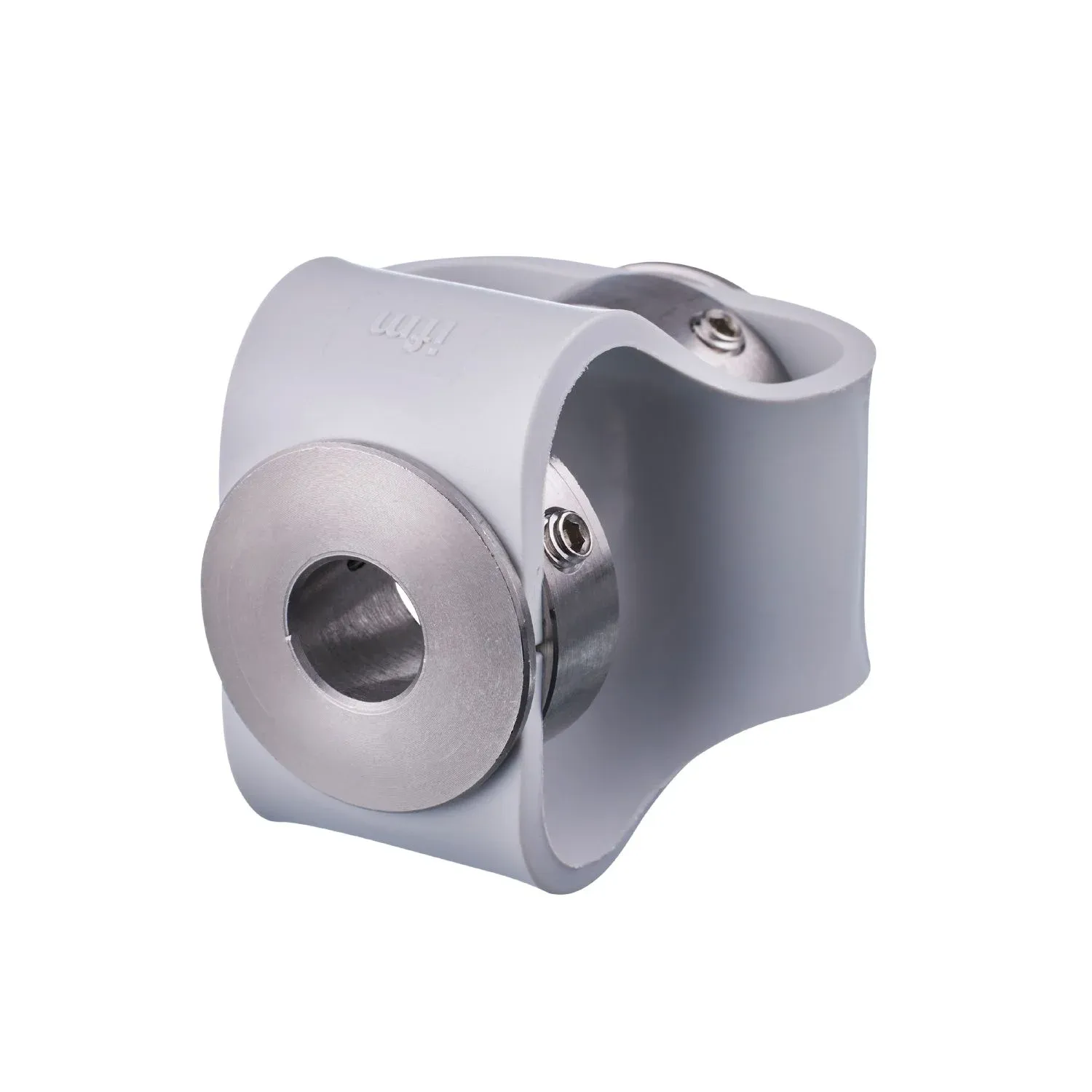

IFM E61434
E61434
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Efficient vibration damping
excellent electrical decoupling and thermal insulation
Smooth-running and maintenance-free
Specification
Operating conditions
| Ambient temperature[°C] [°C] | -30...80 |
|---|
Mechanical data
| Weight[g] [g] | 91 |
|---|---|
| Materials | shaft adapter: stainless steel (303/1.4305); double-loop coupling: PU |
| Tightening torque[Nm] [Nm] | tightening torque screws: 100 Ncm |
| External diameter D[mm] [mm] | 48 |
| Inside diameter 1[mm] [mm] | 10 |
| Inside diameter 2[mm] [mm] | 10 |
| Depth of the clamping hub[mm] [mm] | 13 |
| Clamping screw[mm] [mm] | M4 x 6 - ISO 4029 A2 (4x) |
| Length[mm] [mm] | 46 |
| Max. revolution, mechanical[U/min] [U/min] | 3000 |
| Max. axial shaft misalignment[mm] [mm] | ± 4 |
| Max. radial shaft misalignment[mm] [mm] | ± 3 |
| Max. angular displacement[°] [°] | ± 12 |
| Rigidity of the torsion spring[Nm/rad] [Nm/rad] | 28 |
Remarks
| Remarks | The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C. The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation. |
|---|---|
| Pack quantity | 1 pcs. |
