IFM E60136
E60136
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

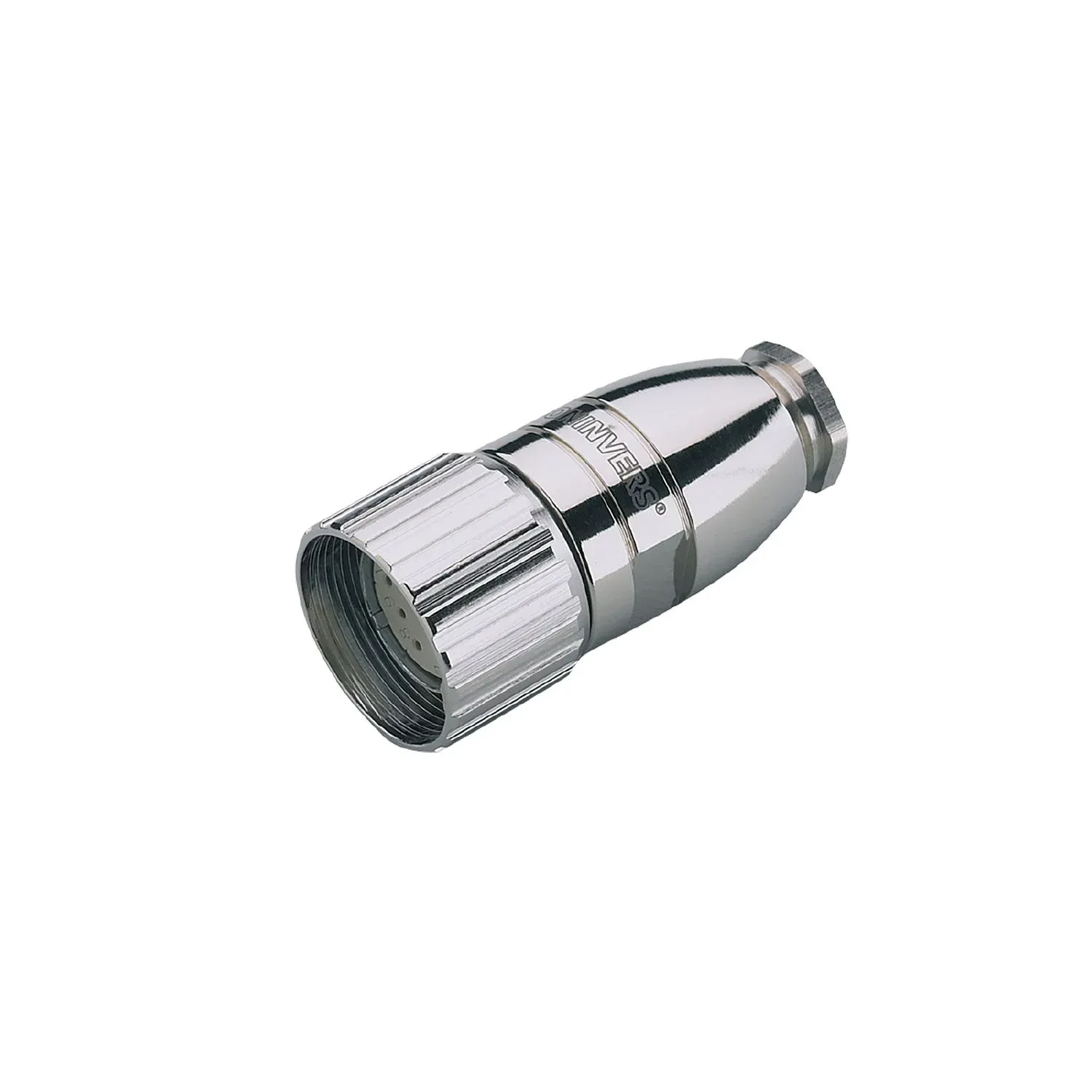

For incremental encoders with 12-pole M23 connector
High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Safe cable connection due to soldering
Robust metal version
Specification
Electrical data
| Operating voltage[V] [V] | 4.5...30 DC |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...125 |
|---|---|
| Protection | IP 67 |
Mechanical data
| Weight[g] [g] | 79 |
|---|---|
| Dimensions[mm] [mm] | 25 x 25 x 45 |
| Moulded-body material | brass, nickel-plated |
| Material nut | brass, nickel-plated |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| soldering | ...1 mm²; Cable sheath: Ø 4.5...6 mm |
|---|
Electrical connection - socket
| Connector | 1 x M23, straight; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated |
|---|
