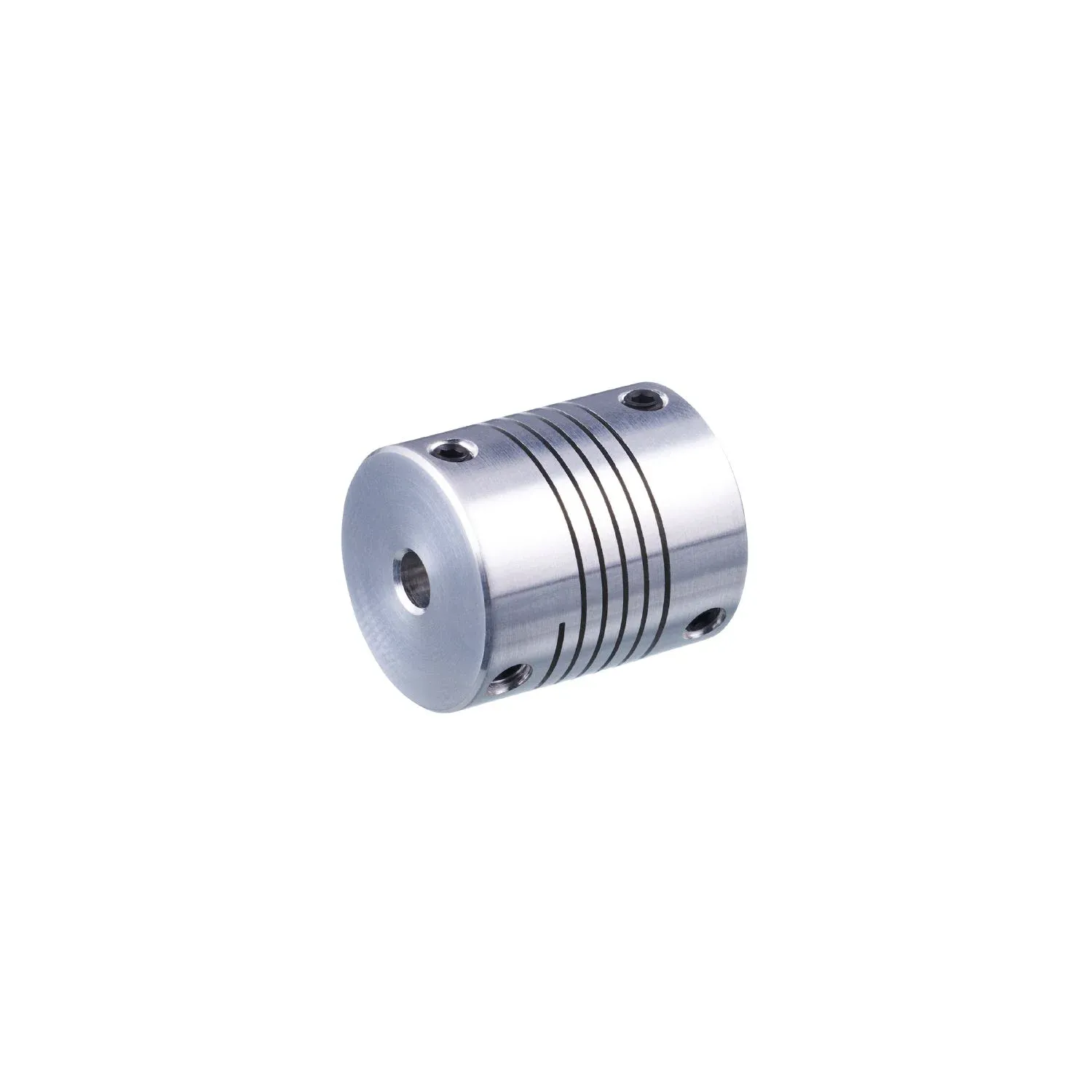

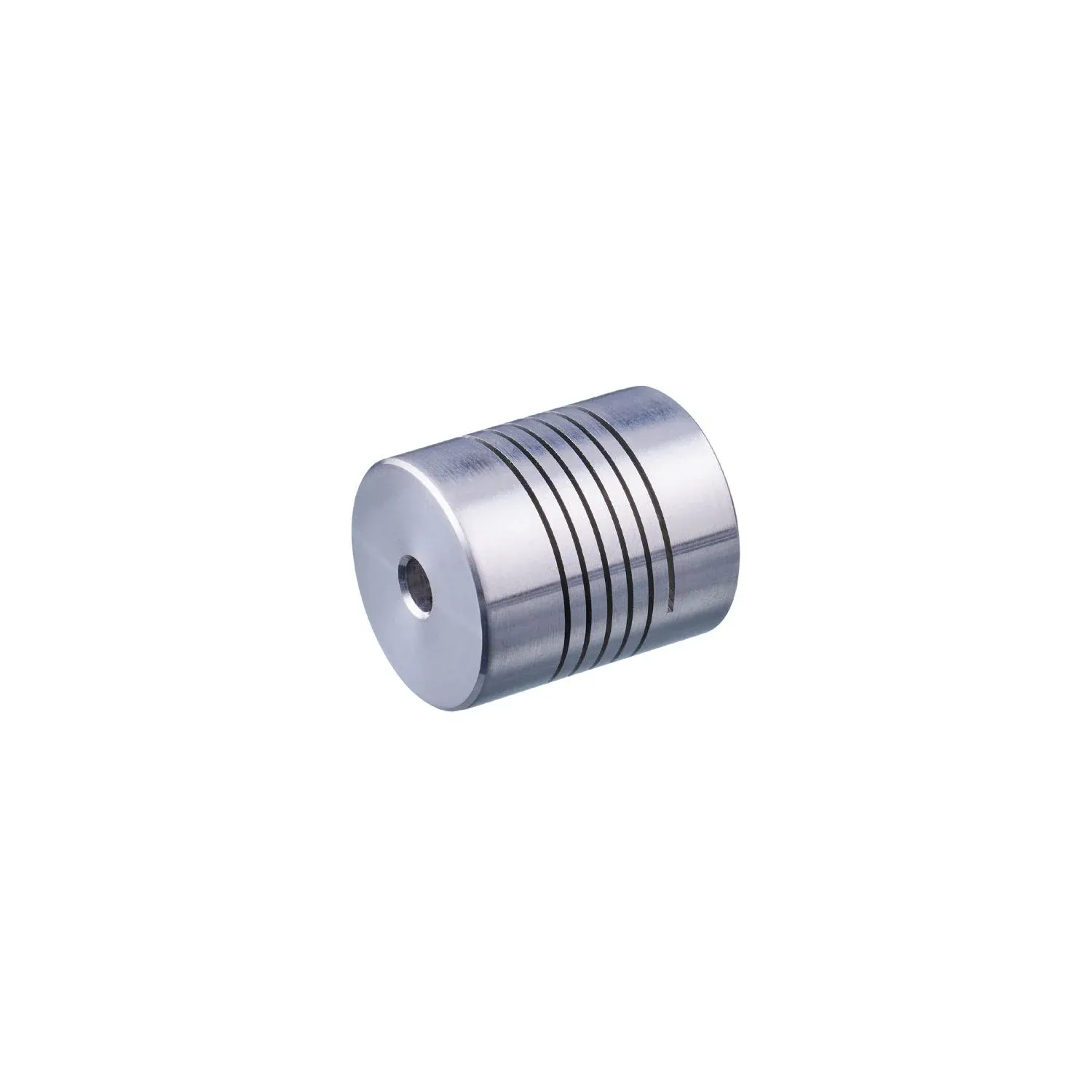

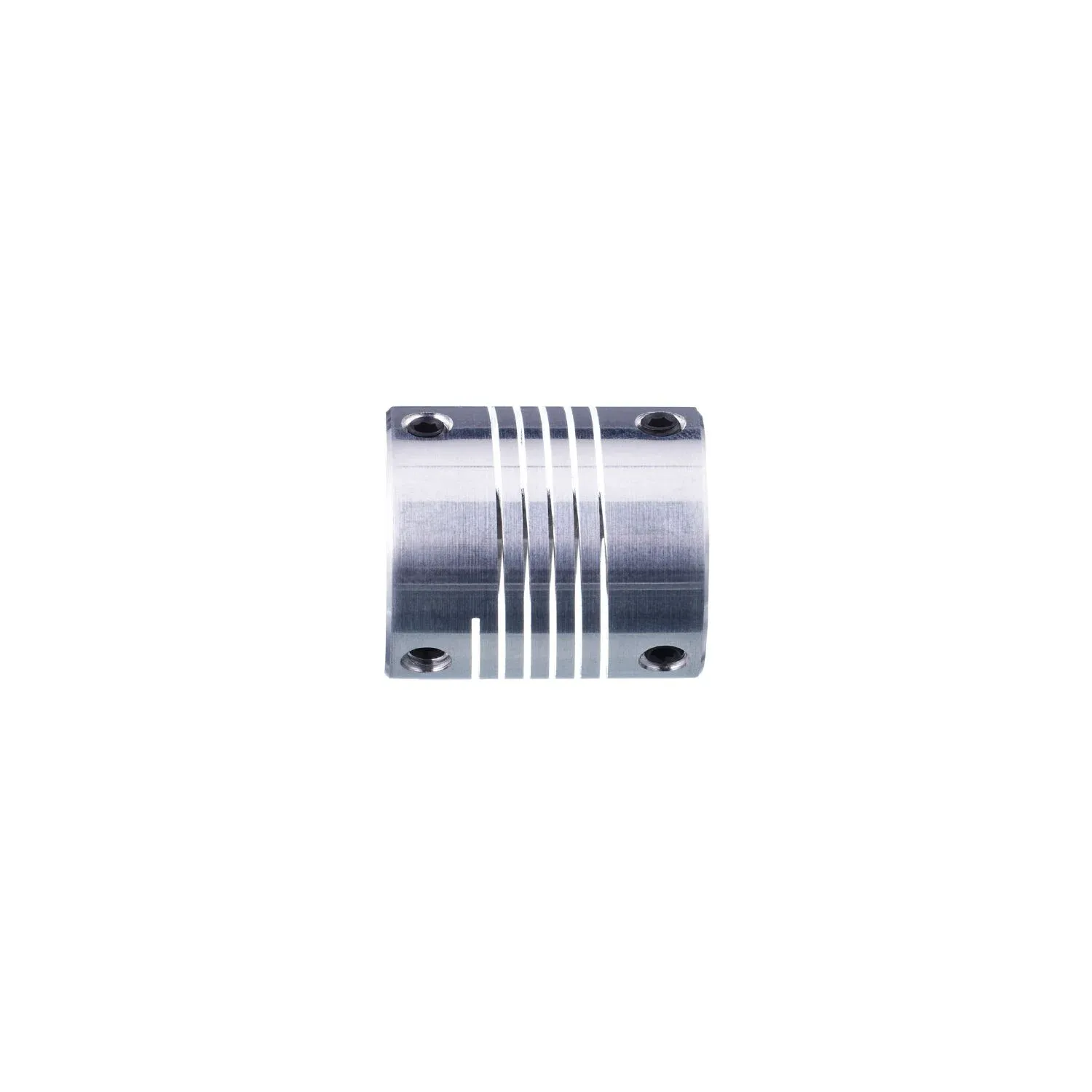

IFM E60062
E60062
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Clearance-free transmission of rotary movements
Efficient vibration damping
Excellent compensation of alignment errors
Low rigidity of the torsion spring
Small restoring forces
Specification
Mechanical data
| Weight[g] [g] | 14.8 |
|---|---|
| Dimensions[mm] [mm] | Ø 19 / L = 22 |
| Materials | aluminium |
| Tightening torque[Nm] [Nm] | tightening torque screws: 80 Ncm |
| External diameter D[mm] [mm] | 19 |
| Inside diameter 1[mm] [mm] | 4 |
| Inside diameter 2[mm] [mm] | 6 |
| Depth of the clamping hub[mm] [mm] | 6 |
| Clamping screw[mm] [mm] | M3 x 4 - ISO 4029 (4x) |
| Length[mm] [mm] | 22 |
| Max. revolution, mechanical[U/min] [U/min] | 8000 |
| Max. axial shaft misalignment[mm] [mm] | ± 0,4 |
| Max. radial shaft misalignment[mm] [mm] | ± 0,25 |
| Max. angular displacement[°] [°] | ± 3,5 |
Remarks
| Remarks | The data indicated apply to couplings with the above hub borings at an ambient temperature of 23 °C. The values of radial, angular and axial displacement are maximum values which must not reach their maximum simultaneously while in operation. |
|---|---|
| Pack quantity | 1 pcs. |
