Description

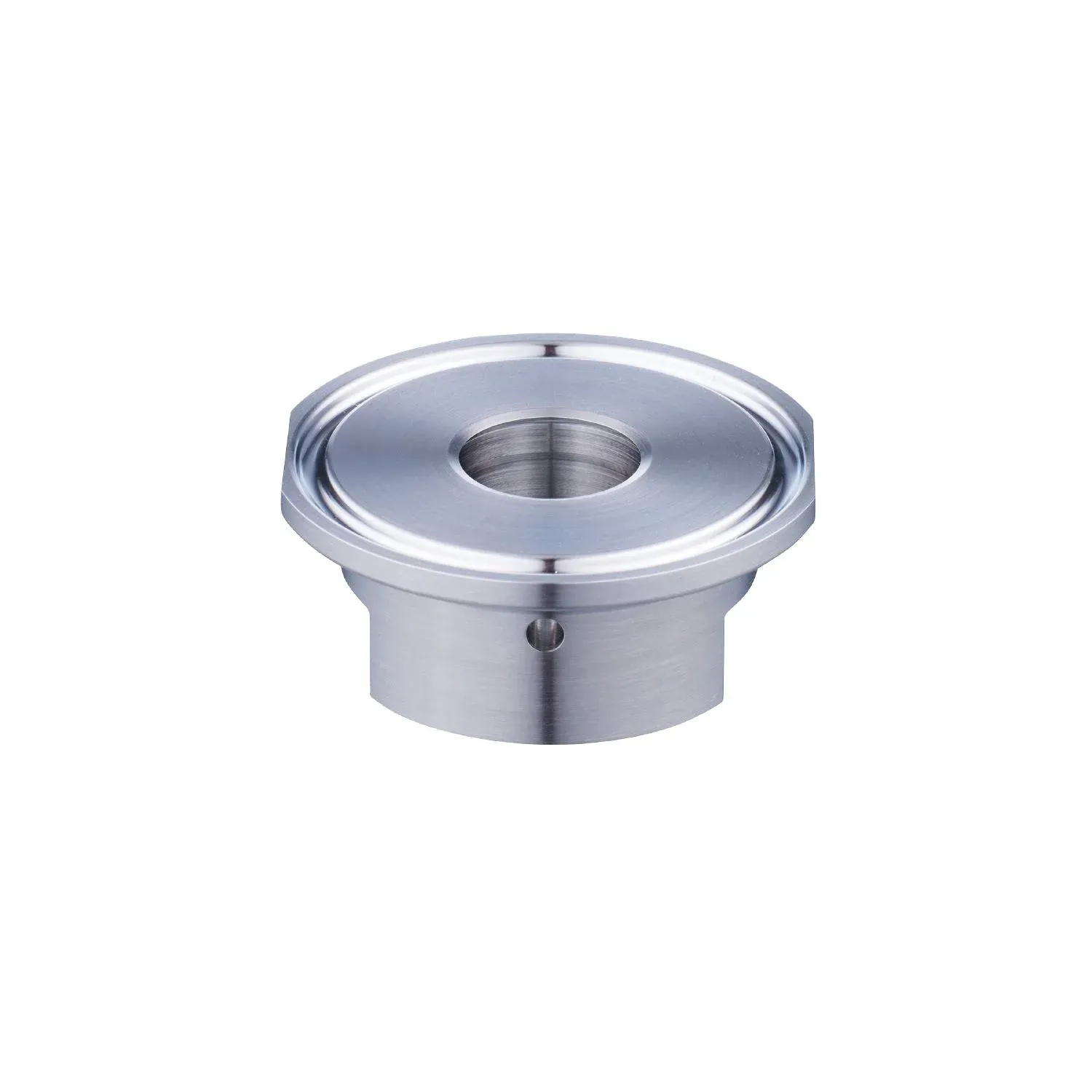

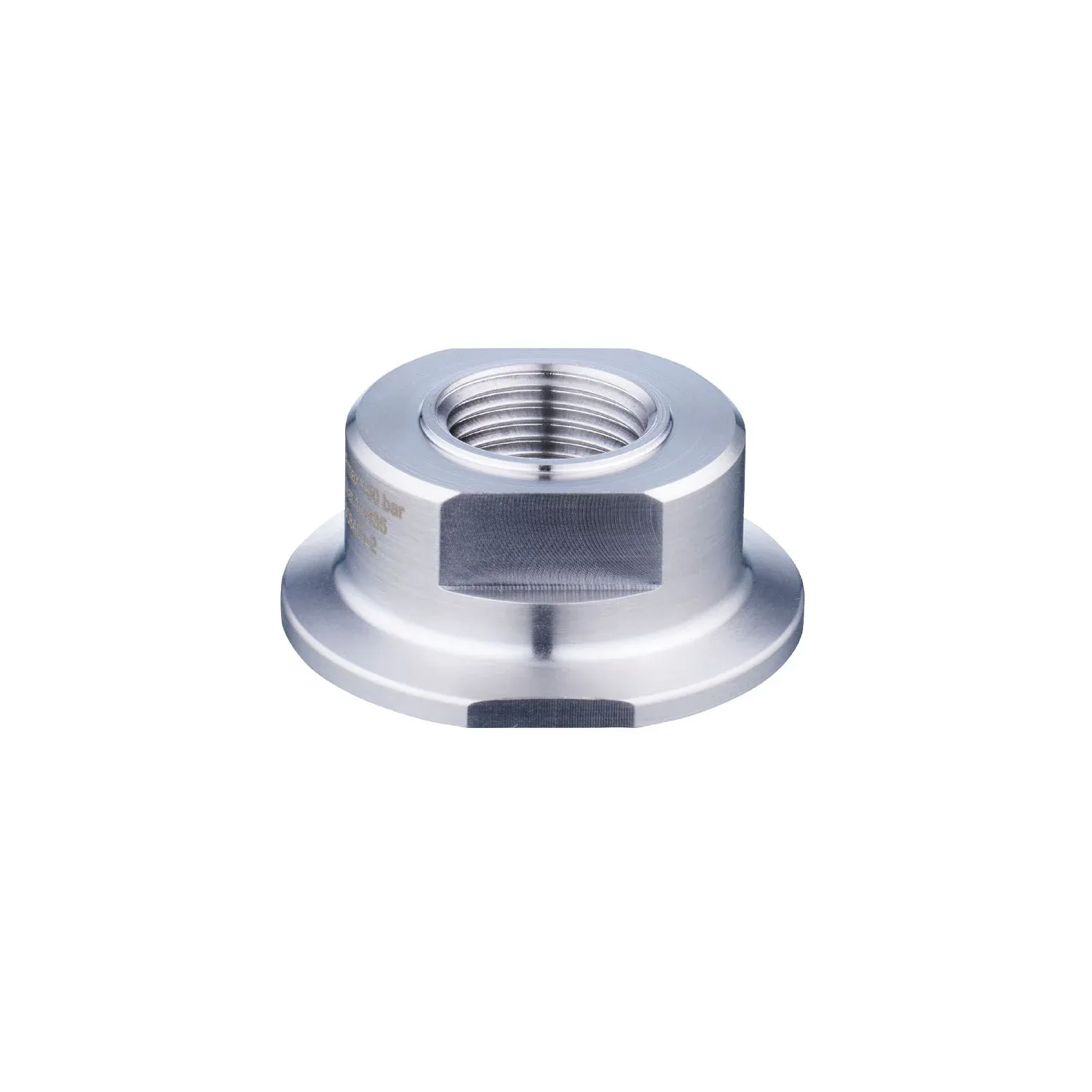

For the installation of process sensors in containers and pipes
Easy, quick and secure mounting
High pressure rating
Specification
Application
| Design | with leakage port |
|---|---|
| Pressure rating | 150 bar 15 MPa |
| 150 bar | 15 MPa |
| Note on pressure rating | take into account the pressure resistance of the bracket and the seal used for clamp connection |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 199 |
|---|---|
| Materials | stainless steel (316L/1.4435) |
| Sensor connection | G 1/2 |
| Process connection | Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852) |
Remarks
| Pack quantity | 1 pcs. |
|---|
