IFM E43414
E43414
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

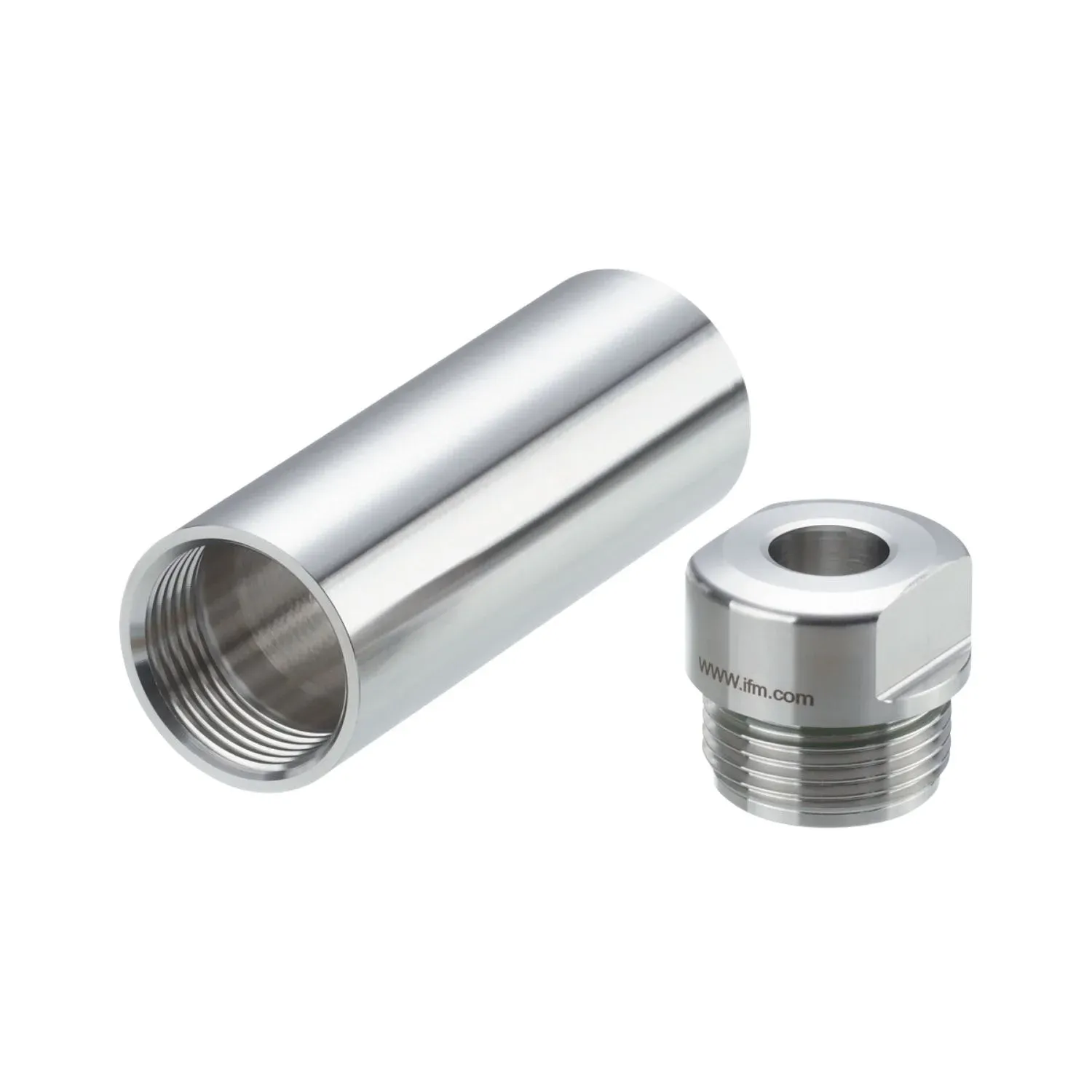

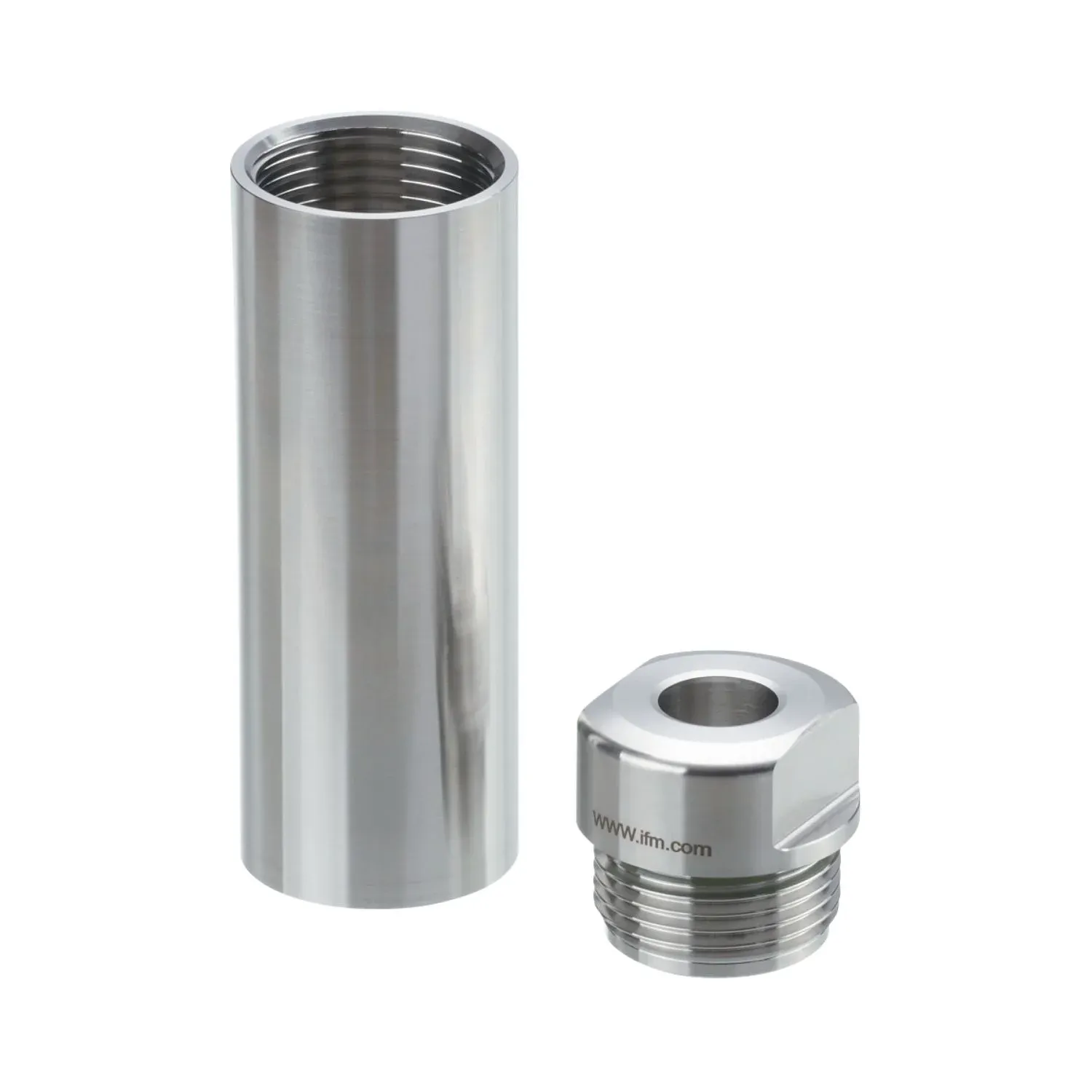

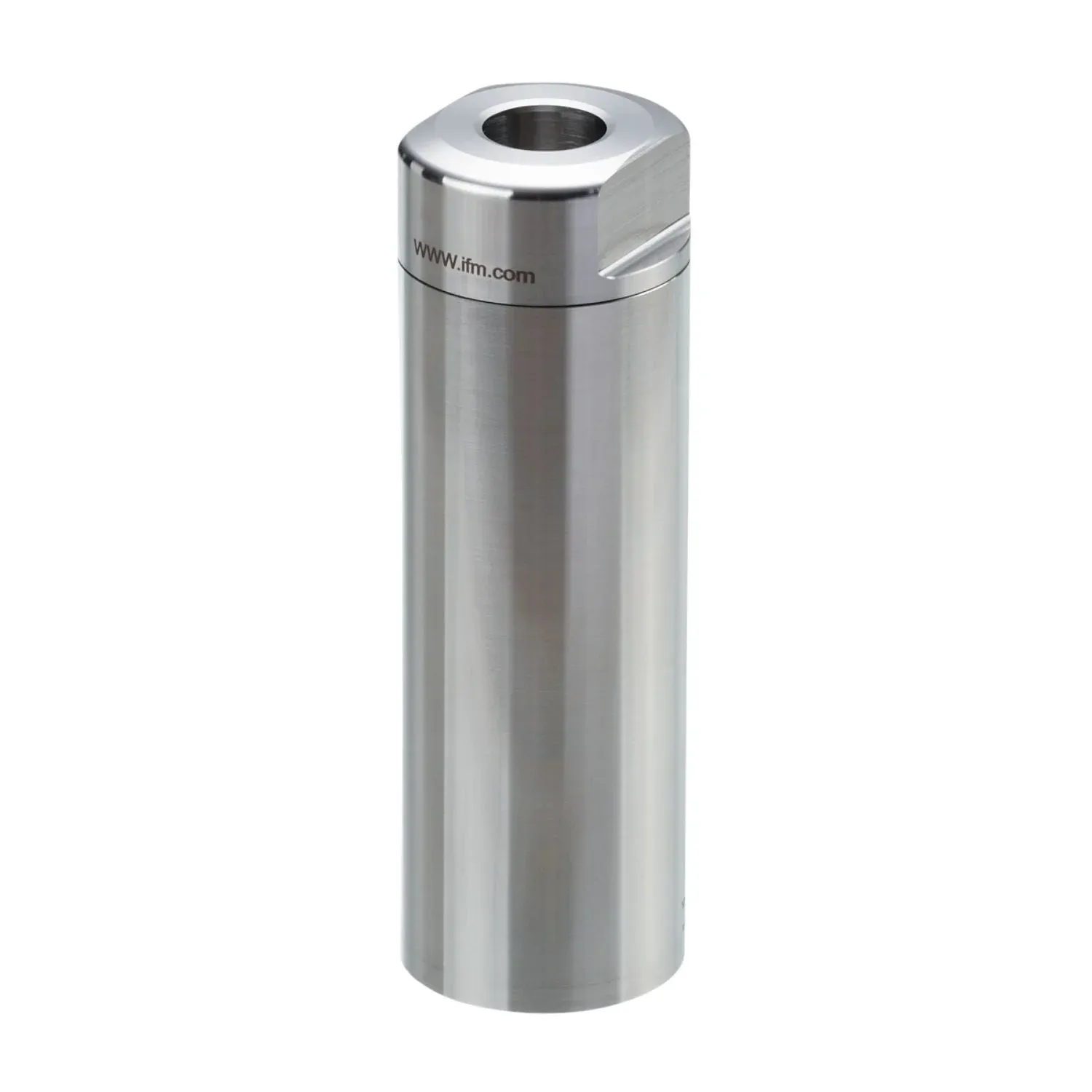

For rear installation of process sensors in tanks
Easy, quick and secure mounting
Stainless steel adapter for the requirements of the food and beverage industry
High pressure rating
Specification
Application
| Design | adapter for rear sensor installation |
|---|---|
| Pressure rating | 50 bar 2.5 MPa |
| 50 bar | 5 MPa |
| Note on pressure rating | for the connection sensor - adapter |
| MAWP for applications according to CRN | 50 bar 5 MPa |
Mechanical data
| Weight[g] [g] | 534.5 |
|---|---|
| Materials (wetted parts) | Adapter: stainless steel (316L/1.4435) surface characteristics: Ra < 0,8 µm / Rz 4 µm; weld-on pipe: stainless steel (316Ti/1.4571); Sealing: FKM |
| Sensor connection | G 1/2 sealing cone |
| Process connection | Ø 38 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.8 µm / Rz = 4 µm |
Remarks
| Remarks | due to the adjustment of the ambient temperature of the installed sensor to the medium temperature, the medium temperature must not exceed the specified data for the ambient temperature of the installed sensor. |
|---|---|
| Pack quantity | 1 pcs. |
