IFM E43407
E43407
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

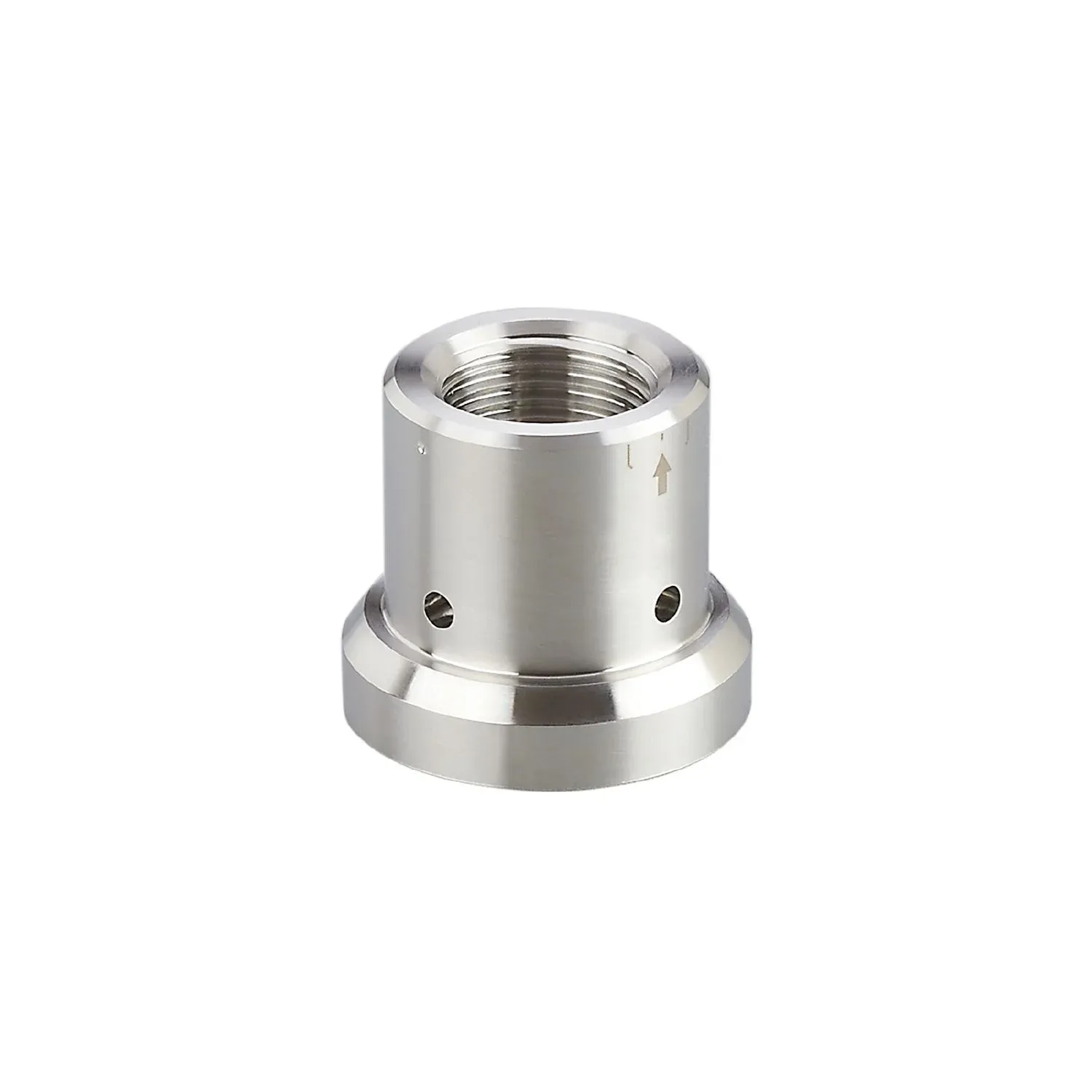

Welding adapter for process sensors
For use in industrial and hygienic applications
Robust stainless steel design for use in harsh industrial environments
High pressure rating
Specification
Application
| Design | with leakage port |
|---|---|
| Pressure rating | 50 bar 5 MPa |
| 50 bar | 5 MPa |
| Note on pressure rating | for the connection sensor - adapter |
| MAWP for applications according to CRN[bar] [bar] | 50 |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 205.5 |
|---|---|
| Materials (wetted parts) | welding adapter: stainless steel (316L/1.4435) surface characteristics: Ra < 0,4 µm / Rz 4 µm |
| Sensor connection | G 1/2 sealing cone |
| Process connection | welding adapter Ø 38 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.4 µm / Rz = 4 µm |
Remarks
| Pack quantity | 1 pcs. |
|---|
