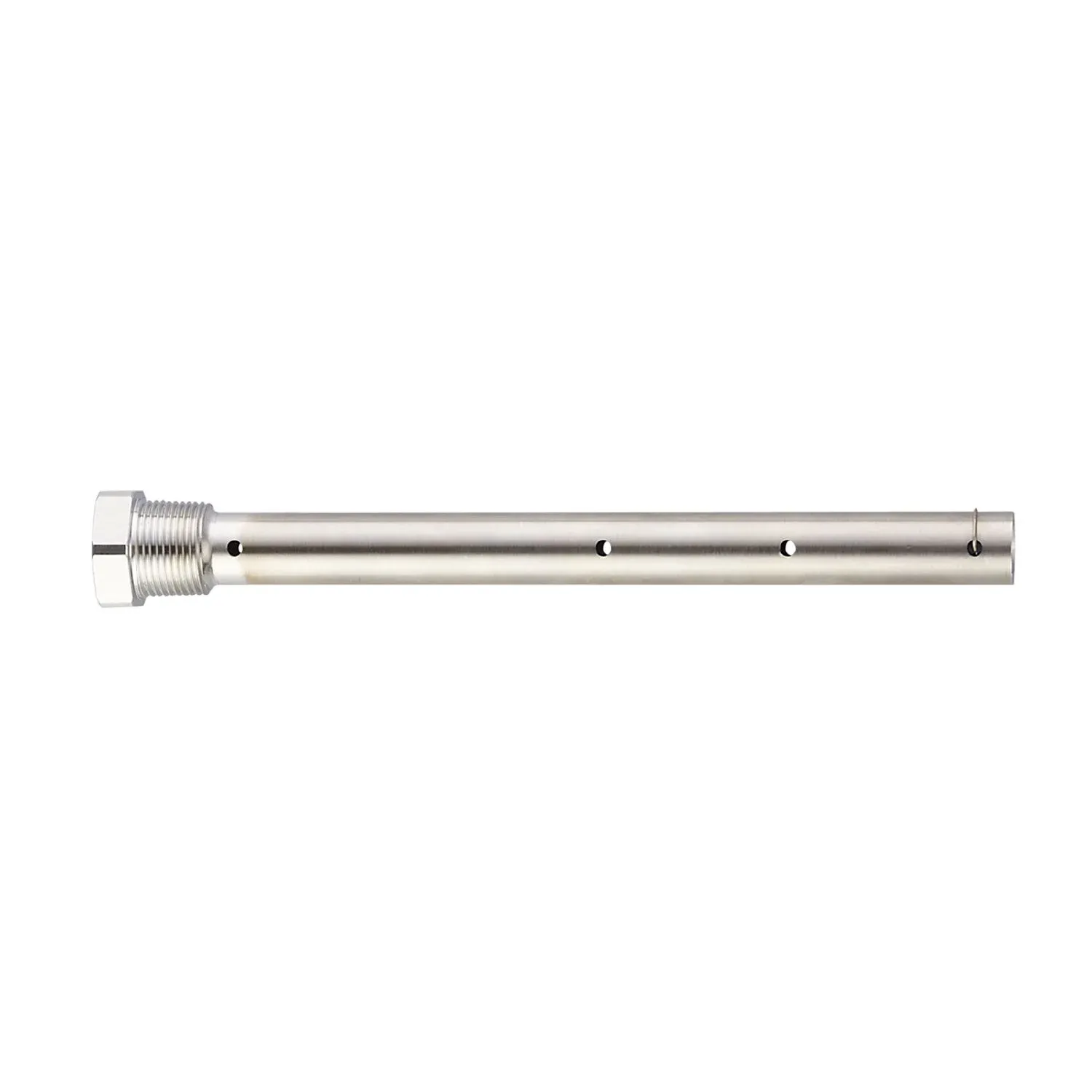

Description
For use in low dielectric media
Reliable detection of oils and oil-based media
Efficient protection against electromagnetic interference
No minimum distance to the vessel wall required
Specification
Application
| Design | for level sensors LR |
|---|---|
| Medium temperature[°C] [°C] | -40...200 |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
| Vacuum resistance | -1000 mbar -0.1 MPa |
| -1000 mbar | -0.1 MPa |
| MAWP for applications according to CRN[bar] [bar] | 16 |
Mechanical data
| Weight[g] [g] | 1120 |
|---|---|
| Materials | Coaxial pipe: stainless steel (304/1.4301); fixing bracket: stainless steel (301/1.4310); Centring piece: PPS reinforced fibre |

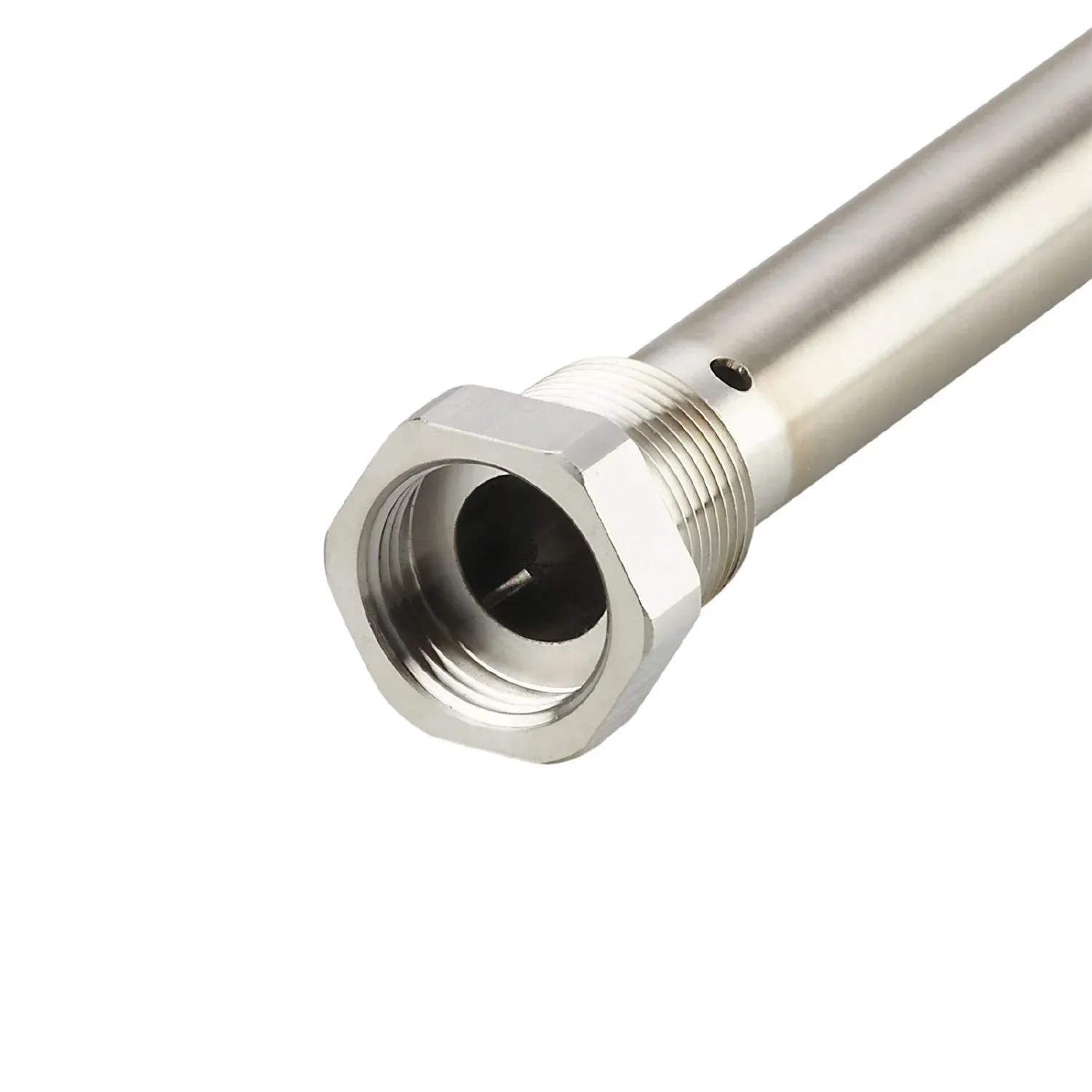

| Sensor connection | threaded connection G 3/4 internal thread |
| Process connection | threaded connection 3/4" NPT external thread |
| Length L[mm] [mm] | 2000 |
Remarks
| Pack quantity | 1 pcs. |
|---|
