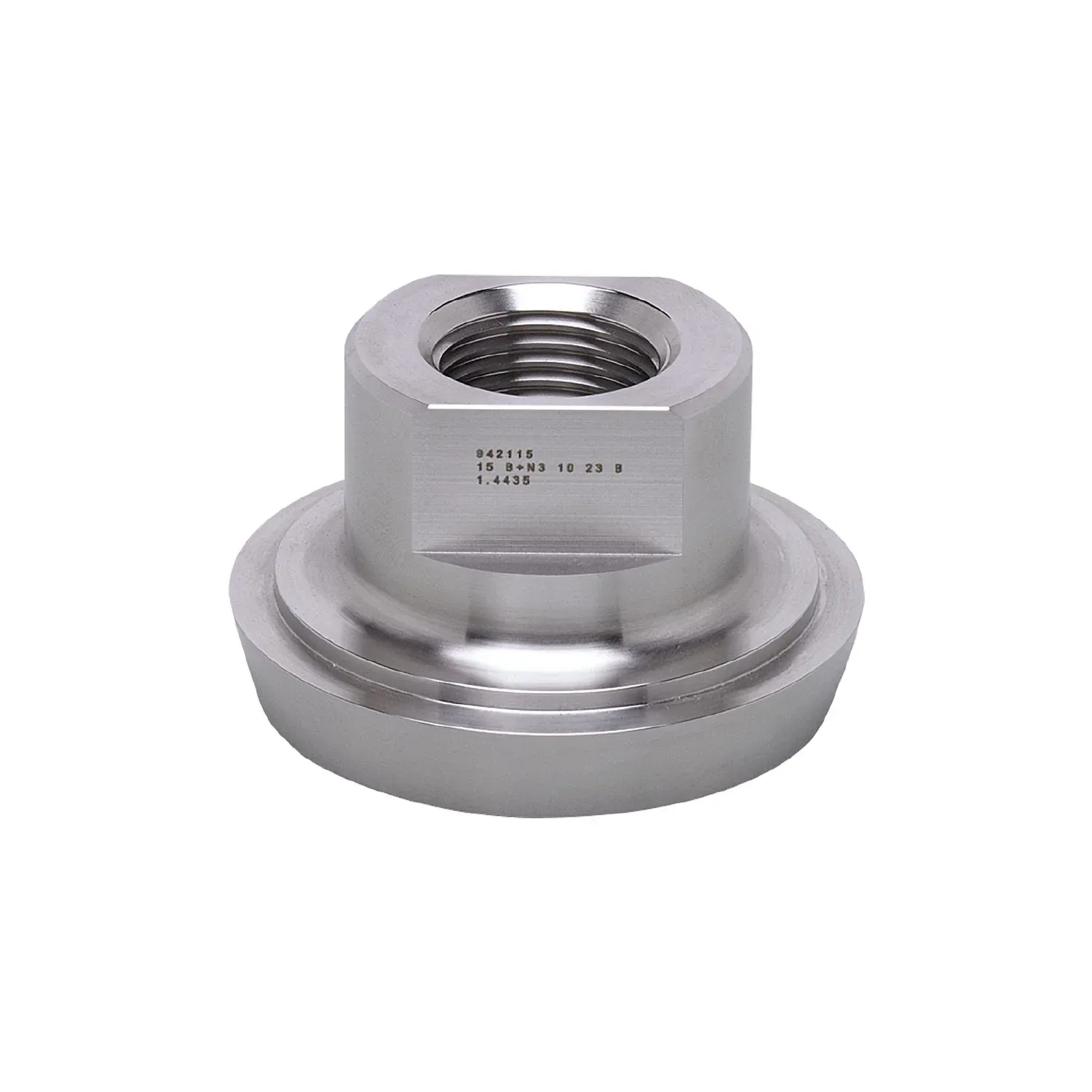

IFM E43370
E43370
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the installation of process sensors in pipes
Easy, quick and secure mounting
Particularly suited for use in hygienic applications
Stainless steel adapter for the requirements of the food and beverage industry
High pressure rating
Specification
Application
| Design | with leakage port |
|---|---|
| Pressure rating | 25 bar 2.5 MPa |
| 25 bar | 2.5 MPa |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 0.001 |
|---|---|
| Materials | process adapter: stainless steel (316L/1.4435) |
| Sensor connection | G 1/2 sealing cone |
| Process connection | hygienic pipe fitting DN50 (2") DIN 11851 |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.4 µm / Rz = 4 µm |
Remarks
| Pack quantity | 1 pcs. |
|---|
