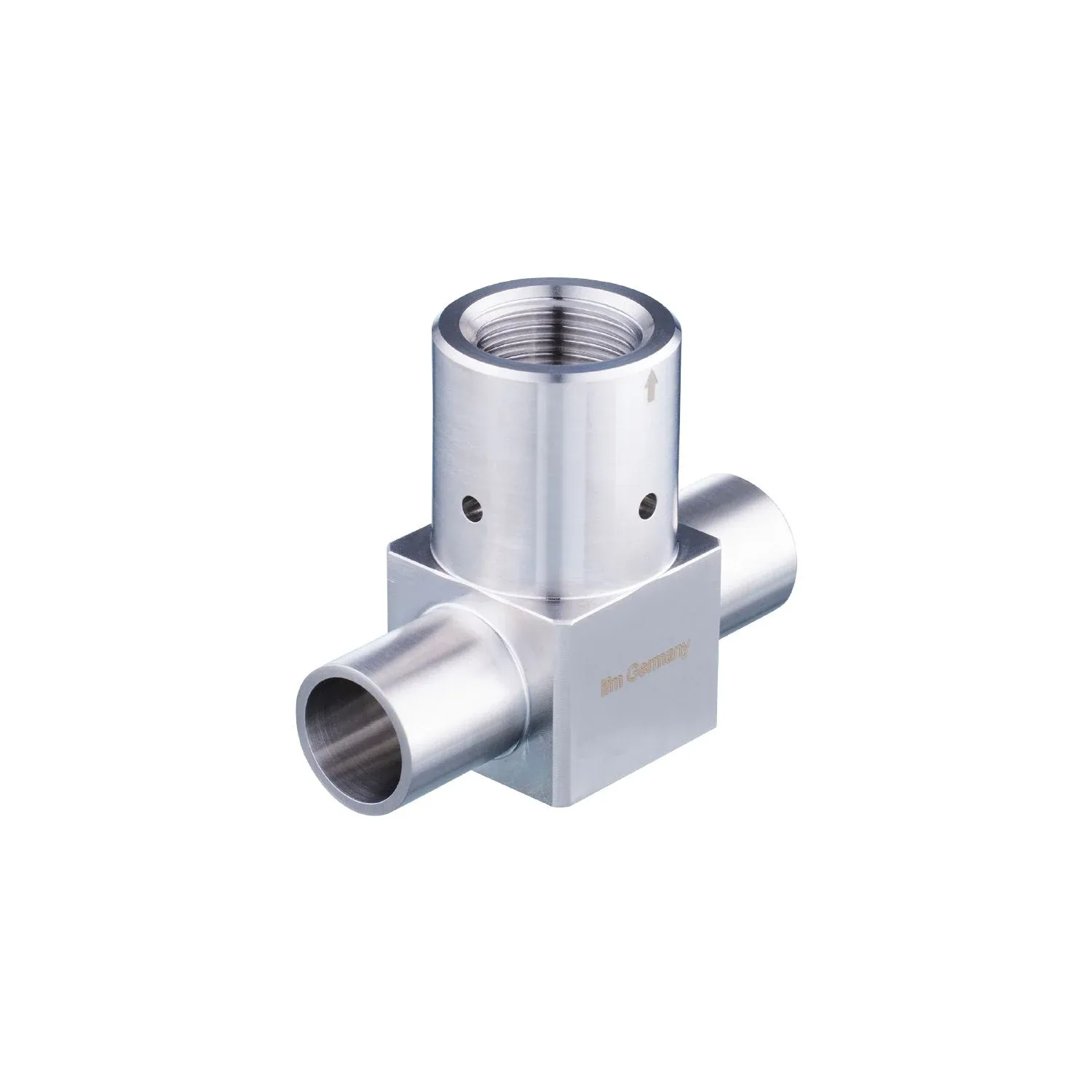

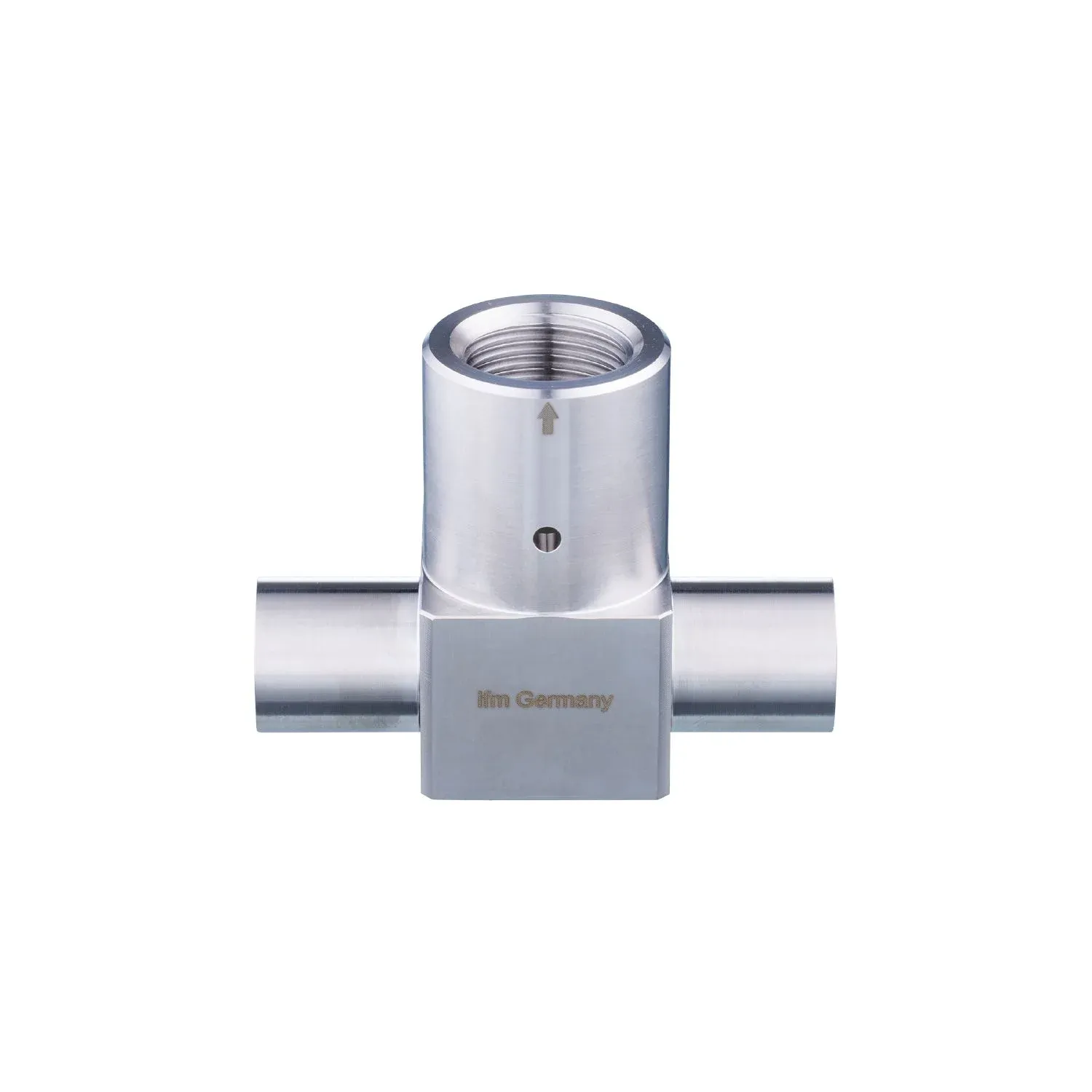

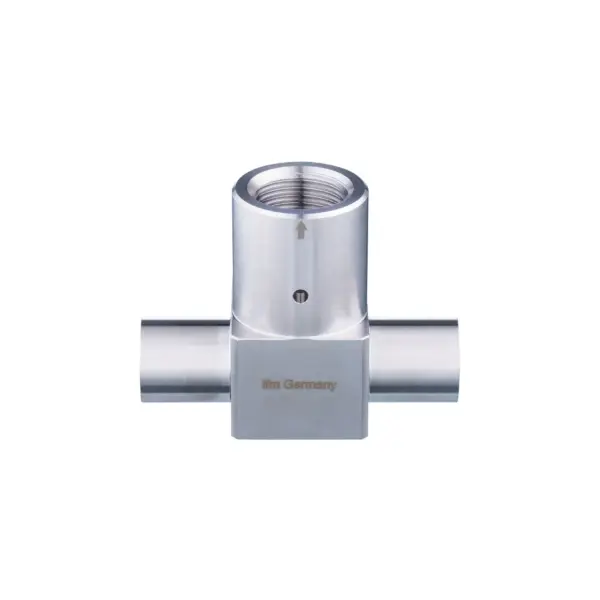

IFM E43365
E43365
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safe installation of process sensors in pipes
For use in industrial and hygienic applications
Robust stainless steel housing
Specification
Application
| Design | with leakage port |
|---|---|
| Pressure rating | 25 bar 5 MPa |
| 25 bar | 5 MPa |
| Note on pressure rating | applies to the connection sensor/adapter higher pressure ranges on request |
Tests / approvals
| Pressure Equipment Directive | A possible classification to PED depends on the application and has to be carried out by the user / operator. |
|---|---|
| Safety instructions | The compatibility between medium and product material has to be checked in all applications. |
Mechanical data
| Weight[g] [g] | 282.3 |
|---|---|
| Materials (wetted parts) | T-piece: stainless steel (316L/1.4435) surface characteristics: Ra < 0,8 µm / Rz = 4 µm |
| Sensor connection | G 1/2 sealing cone |
| Process connection | T-piece DN15 (19 x 1,5); Maße gemäß DIN 11866; Reihe A DIN |
Remarks
| Pack quantity | 1 pcs. |
|---|
